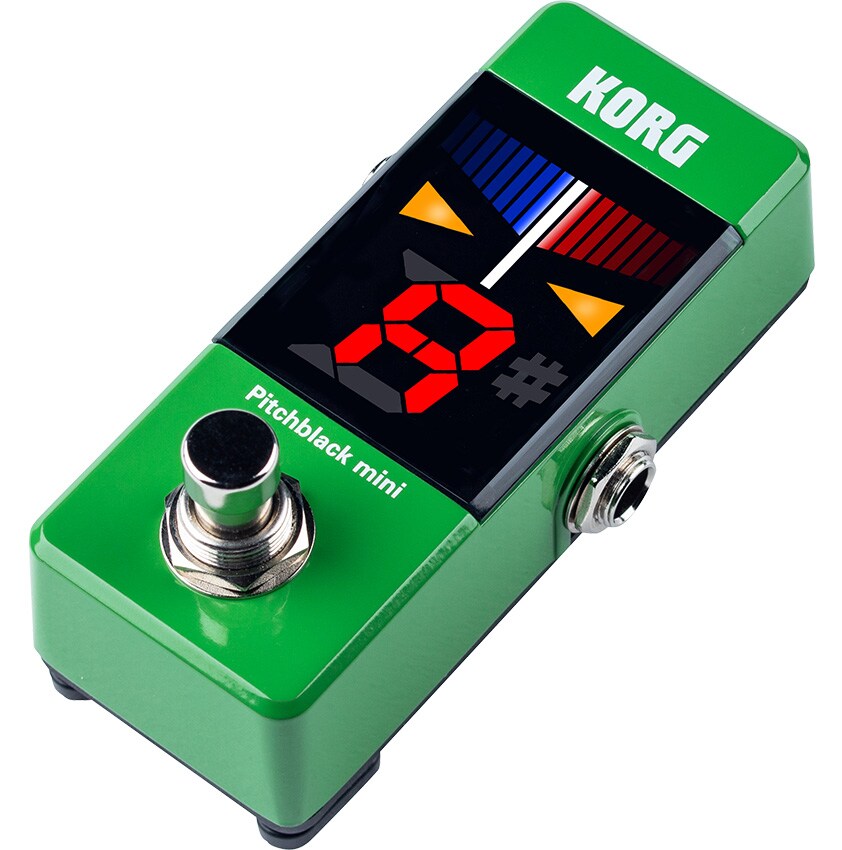

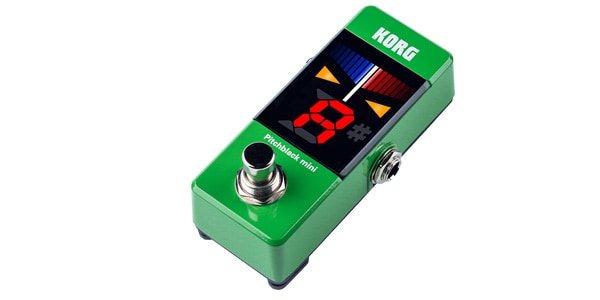

KORG / PB-MINI GR

The green color of the KORG / Pitchblack mini is a popular pedal-type tuner that is small and has excellent visibility. A vivid color is used for tuners that tend to have simple colors. It goes without saying that it is highly accurate and easy to use as a tuner, and will add a touch of color to your effects board.

■ Pedal-type tuner
■ Pitchblack mini
■ Green color
■ Features
- Small size that is easy to incorporate into your board
- Large display with excellent visibility and note name display
- Equipped with a stabilizer to prevent tipping over
- Three display modes: regular, strobe, and half strobe
- High-precision tuning with ±0.1 cents
- Calibration setting possible at A4=436 to 445Hz (1Hz steps)
- True bypass
■ Specifications
- Scale: 12-tone equal temperament
- Measurement range: E0 (20.60Hz) to C8 (4186Hz)
- Reference pitch range: A4=436 to 445Hz (1Hz steps)
- Measurement accuracy: ±0.1 cents
- Input impedance: 1MΩ (tuner on)
- Connection terminals: INPUT (mono standard jack), BYPASS (mono standard jack), DC 9V IN
■Power supply: 2 x CR2032 lithium batteries (3V), or DC9V center negative adapter (sold separately)
■Current consumption: Maximum 40mA
■External dimensions: 45 (W) x 93 (D) 43 (H) mm (including rubber feet)
■Weight 129 g (including batteries)

*Images are for illustrative purposes only.
