STEINBERG / UR22C Recording Pack Audio Interface 32bit / 192kHz

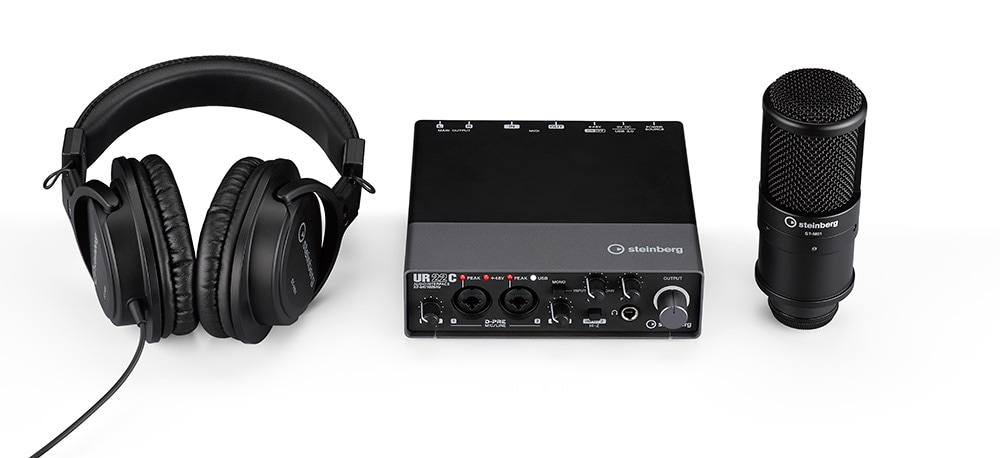

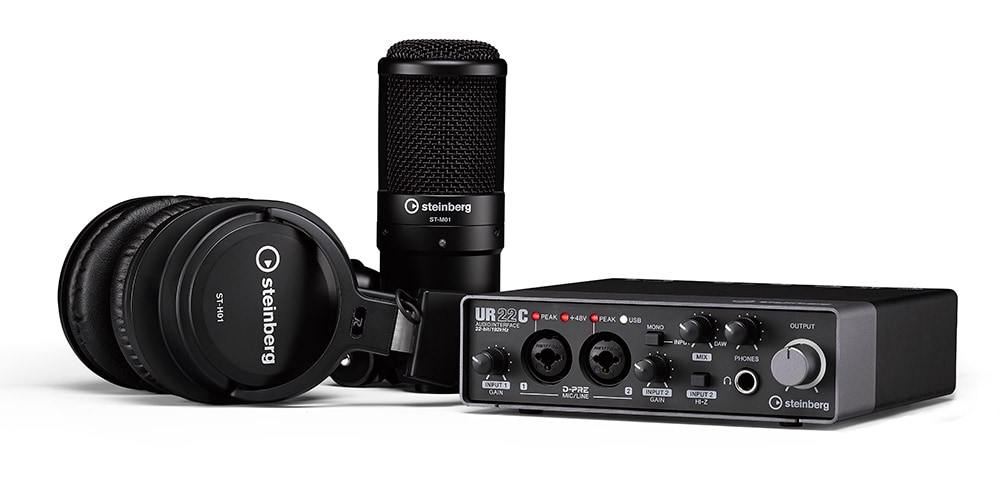

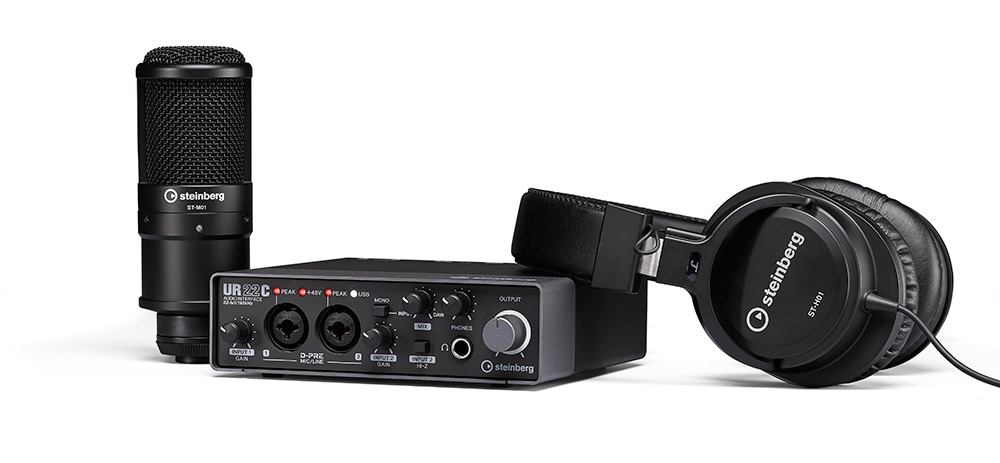

A recording set that combines the latest audio interface with a microphone and headphones.

■ Recording bundle
■ UR22C / ST-H01 / ST-M01, Cubase AI / WaveLab LE / Cubasis LE included
* Audio interface, condenser microphone, headphone set

■ Main features
1. Up to 32bit recording / playback is possible
2. Supports USB 3.0 (USB Type-C)
3. Other features
◇ Common to all models
・ DSP processing capacity increased by newly developed custom chip "SSP3"
・ The combination of "SSP3" and the latest driver reduces latency and improves stability.
・ Improved output of headphone amplifier
・ Dark gray and black two-tone exterior with a calm atmosphere
・ Volume knob that is easy to adjust with LEDs surrounding it

■Specifications
Connection: USB 3.0 (USB Type-C)
Maximum Bitrate: 32-Bit
Maximum sampling rate: 192 kHz
Total input / output: 2 in / 2 out
Analog input: 2 Combo
Microphone input: 2 (D-PRE)
HI-Z input: 1
Analog output: 2
Headphone jack: 1 (15mW + 15mW @ 40Ω)
Monitoring settings for stereo input: 〇 (Set with the "MONO" button on the front panel)
Loopback function
dspMixFx Technology
iOS / iPadOS device: Requires "Apple iPad Camera Connection Kit" or "Lightning-USB Camera Adapter" for use with iPad / iPhone
dspMixFx

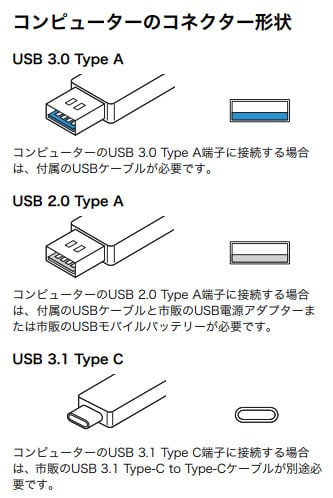

* About bus-powered drive
A commercially available USB power adapter or USB mobile battery is required to connect the UR22C to the USB 2.0 Type A port on your computer.
(A separate USB cable with a microUSB connection terminal on the UR-C side is required for power supply)
Bus-powered with iPad Pro with USB Type-C

Bundled software: DAW "Cubase AI" with 64-bit floating point audio engine, VST / AU effect bundle "Basic FX Suite" ("Sweet Spot Morphing Channel Strip" / "REV-X" / "Guitar Amp Classics"), for iPadOS Multi-touch DAW "Cubasis LE", mixer app for iOS / iPadOS "dspMixFx UR-C"
UR22C Recording Pack is "Wave Lab LE" in addition to the above

Size (W x H x D) / Weight: 159 x 47 x 159 mm / 1.0 kg

Included items
・ Startup guide
・ CUBASE AI DOWNLOAD INFORMATION (paper)
・ ESSENTIAL PRODUCT LICENCE INFORMATION (paper)
・ USB 3.0 cable (3.1 Gen1, Type-C to Type-A, 1.0 m)
Operating environment (audio I / O) ◎ Mac
・ Supported OS: macOS 10.12 / macOS 10.13 / macOS 10.14
・ CPU: Intel Core i series multi-core processor 2GHz
・ Required memory: 2GB or more
・ Hard disk: 1.2GB or more free space
・ Display: 1280 x 800 pixels or more
・ Full color

Windows
Supported OS: Windows 7 SP1 / Windows 8.1 / Windows 10
CPU: Intel Core i series multi-core processor 2GHz or equivalent AMD processor
Required memory: 2GB or more
Hard disk: 1.2GB or more free space
Display: 1280 x 800 pixels and above-full color
Required memory: 2GB or more
Hard disk: 1.2GB or more free space
Display: 1280 x 800 pixels and above-full color

Cubase AI operating environment
Mac
Supported OS: macOS 10.12 / macOS 10.13 / macOS 10.14
CPU: 64-bit Intel / AMD multi-core processor (Intel i5 or above recommended)
Memory Required: Recommended RAM Size: 8 GB (minimum 4 GB or more)
Hard disk: 30GB or more free space
Display: Recommended display resolution: 1920 x 1080 (minimum 1440 x 900 or higher)

Windows
・ Supported OS: Windows 7 / 8.x / 10 (64-bit version only)
・ CPU: 64-bit Intel / AMD multi-core processor (Intel i5 or higher recommended)
・ Required memory: Recommended RAM size: 8 GB (minimum 4 GB or more)
・ Hard disk: 30GB or more free space
・ Display: 1280 x 800 pixels or more-Full color
・ Hard disk: Recommended display resolution: 1920 x 1080 (minimum 1440 x 900 or higher)
・ Display: 1280 x 800 pixels or more-Full color
・ Others: Internet environment: Download, installation, license activation, user registration, etc.
* It is necessary to download applications and related data at the time of installation.
* High-speed broadband internet environment is recommended
