RADIAL / HotShot ABo

The HotShot Abo is a line output selector from RADIAL. It allows you to switch the output with a foot switch. It features a ground lift switch to prevent noise caused by ground loops. It boasts high durability.

[直輸入品][Direct Import]

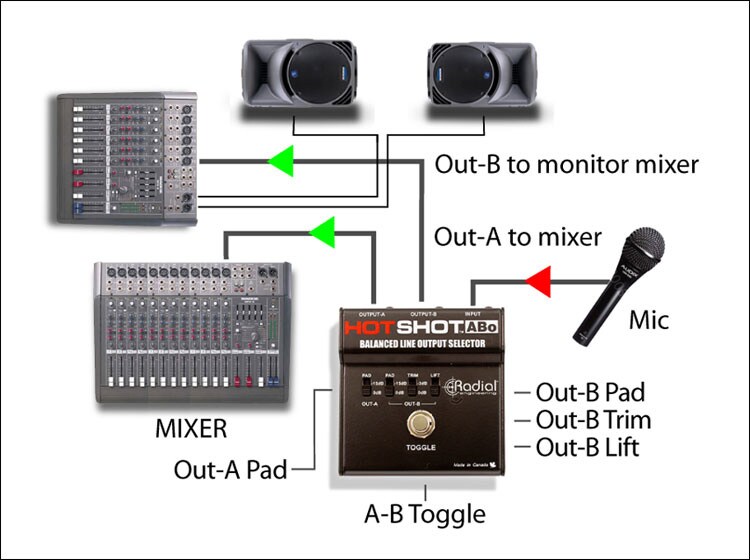

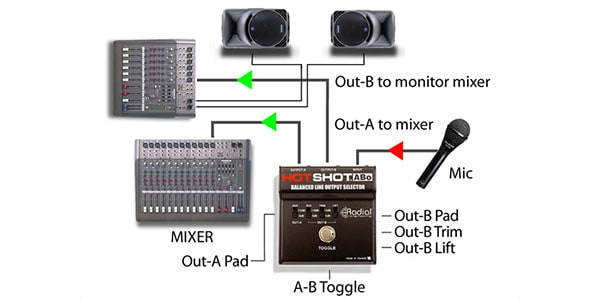

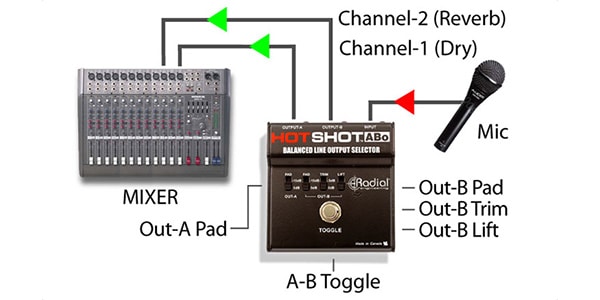

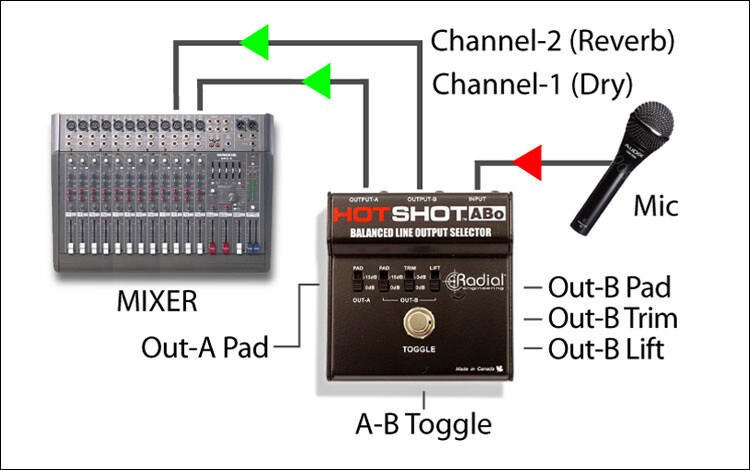

The HotShot ABo is a latching output selector. It features a normal channel and an effect channel, allowing you to use a footswitch to turn effects on/off, switch between the audience and monitor output, and even function as a microphone mute switch. The ABo is completely passive and requires no power supply. Despite its compact size, its 14-gauge steel body ensures durability even on stage.

■Specifications
Circuit Type: Passive, true-bypass
Frequency response: 20Hz ~ 20kHz
Switch type: Latching
Dynamic range: Unlimited

■Features
Ground lift: Pin-1 on input B
Pad: -15dB on both inputs
Toggle: Selects between input A or B

■General
Construction: 14 gauge steel
Finish: Durable powder coat
Size: 3.6""w x 3.9""d x 2""h (92 x 99 x 51mm)
Weight: 1.25 lb (0.56 kg)
Conditions: For indoor use at temperatures between +5° c and +40° c
