TASCAM / SERIES 208i Audio Interface

High-quality audio interface. Comes with a reassuring 3-year Sound House warranty!

■USB Audio/MIDI Interface
■20 IN/8 OUT

TASCAM's new, high-quality, and highly expandable audio interface
In addition to its comprehensive built-in effects and mixer functionality, it also comes bundled with the effects you need for your music production workflow. It's also compatible with mobile devices like the iPad, making it suitable for any environment, from home recording to studio recording and live recording. Its angle, optimized for tabletop use and large, easy-to-operate knobs ensure stress-free operation.

■Features
- Equipped with four ultra-low-noise Ultra-HDDA mic preamps for clear, natural sound quality
- High-spec input audio circuitry for a low-noise recording environment
- Independent phantom power on/off for each input channel
- Supports audio formats up to 24-bit/192kHz
- Low-latency, stable driver operation (Windows: TASCAM native driver)
- Direct monitor function for zero monitoring
- DSP fully modular mixer, input/output routing functionality, and TASCAM's original reverb
- Equipped with four balanced combo jack XLR/TRS terminals
- Expandable to 16 inputs (maximum 20 inputs) with two S/MUX optical input terminals
- 16 inputs @ 44.1kHz/48kHz, 8 inputs @ 88.2kHz/96kHz, 4 inputs @ 176.4kHz/192kHz
- Equipped with two 45mW + 45mW stereo standard jack headphone output terminals
- Equipped with WORD IN/OUT terminals (75 ohms, ON/OFF)
- Equipped with MIDI IN/MIDI OUT terminals
- User-friendly controls and design
- Durable metal body
- Compatible with Windows OS, macOS, and iOS devices (UAC 2.0 compatible)
- Extensive bundled software
- Steinberg: Cubase LE/Cubasis LE
- IK Multimedia: AmpliTube TASCAM edition
- IK Multimedia: T-RackS TASCAM edition
- iZotope: Neutron Elements
- Automatic software/driver/firmware update function
- Notification function displays the latest product information
- Tested with major DAWs (Pro Tools, Live, Cubase, Studio One, GarageBand)

■ Specifications
Sampling Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Sampling Bit Depth: 16 / 24-bit

Analog Audio Input

Microphone Inputs (Balanced) 1-4 (When the input selector switch is set to MIC/LINE)
Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input Impedance: 1.5kΩ

Instrument Inputs (Unbalanced) 1-4 (When the input selector switch is set to INST)
Connector: 6.3mm (1/4"") TS jack (Tip: HOT, Sleeve: GND)

Line Inputs (Balanced) 1-4 (When the input selector switch is set to MIC/LINE)
Connector: 6.3mm (1/4"") TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)

Digital Audio Input

OPTICAL (S/MUX)
Connector: OPTICAL (JEITA RC-5720C)
Signal Format: Multi-channel Optical Format
(S/MUX supported at 88.2k/96k/176.4k/192kHz)

Analog Audio Output
Monitor Output (Balanced) LINE OUT 1-2
Connector: 6.3mm (1/4"") TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)

Line Output (Balanced) LINE OUT 3-8
Connector: 6.3mm (1/4"") TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)

Headphone Output PHONES 1-2
Connector: 6.3mm (1/4"") stereo standard jack
Maximum Output Power 45mW + 45mW (THD+N 0.1% or less, into 32Ω load)

Control Input/Output
USB
Connector: USB B-type, 4-pin
Format: USB 2.0 HIGH SPEED (480Mbps)

MIDI Input
Connector: DIN 5-pin
Format: Standard MIDI Format
MIDI Output
Connector: DIN 5-pin
Format: Standard MIDI Format

WORD Input
Connector: BNC
Input Voltage: 2.0Vpp–5.0Vpp
Input Impedance: 75Ω ±10%
Permitted Frequency Deviation with External Synchronization: ±100ppm
Termination On/Off Switch: Yes

WORD Output
Connector: BNC
Output Voltage: 2.0Vpp (into 75Ω load)
Output Impedance: 75Ω ±10%
Sampling Frequency: 44.1k/48k/88.2k/96k/176.4k/192k Hz
Power Supply: DC 12V (PS-P1220E AC Adapter included)
Power Consumption: 14W
Dimensions (W x H x D): 296 x 65 x 160 mm
Weight: 1.6 kg

Free software bundle covering the entire production flow
Bundled with software beloved by many users worldwide.

For music production, Steinberg Cubase LE/Cubasis LE is the core DAW. For recording, IK Multimedia's AmpliTube guitar/bass amp modeling and various effects are included. For mixing, iZotope's Neutron Elements uses AI to automate EQ, COMP, and other adjustments. For mastering, IK Multimedia's T-RackS is used to complete high-quality music production.

Pursuit of original sound reproduction
We generously incorporate the audio design know-how we've cultivated over more than 60 years as a professional audio brand. TASCAM's original microphone preamp circuit.
""TASCAM Ultra-HDDA (High Definition Discrete) The ""TASCAM Audio Interface Architecture"" delivers highly transparent sound and ultra-low noise.

An evolved audio interface engine
The new-generation TASCAM audio interface engine supports 24-bit/192 kHz recording for high-resolution sound. Leveraging our experience as a pioneer of USB audio interfaces, we've achieved even greater stability with the TASCAM native driver.

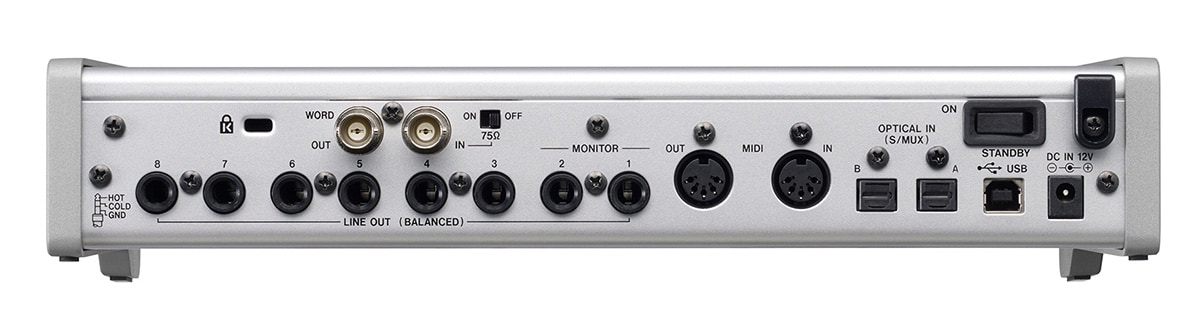

Expandable to Multitracks
An S/MUX optical input terminal allows for input channel expansion. In addition to simple recording at home, it can easily be expanded to up to 20 channels of multitrack recording using external microphone preamps in the studio. The WORD IN/OUT terminals allow synchronization of two microphone preamps.

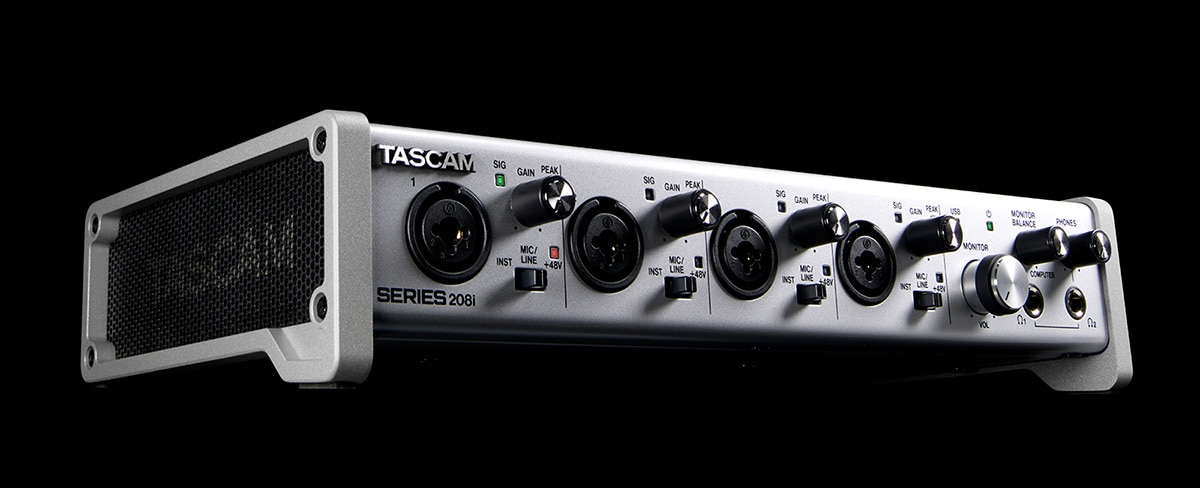

Easy and Simple Operation
The SERIES interface features a large, easy-to-grasp monitor knob for instant adjustment of output levels. All knobs on the front panel feature an angled design for easy operation.
The monitor balance knob adjusts the balance between the input signal and the playback signal from the computer, achieving zero latency and eliminating delay when monitoring the input signal. For condenser microphones, each microphone input provides an independently switchable +48V phantom power supply.

Abundant Monitor Outputs
Eight analog line-level outputs are provided, allowing output to up to four stereo monitor speakers, and 7.1 surround monitoring for video production.

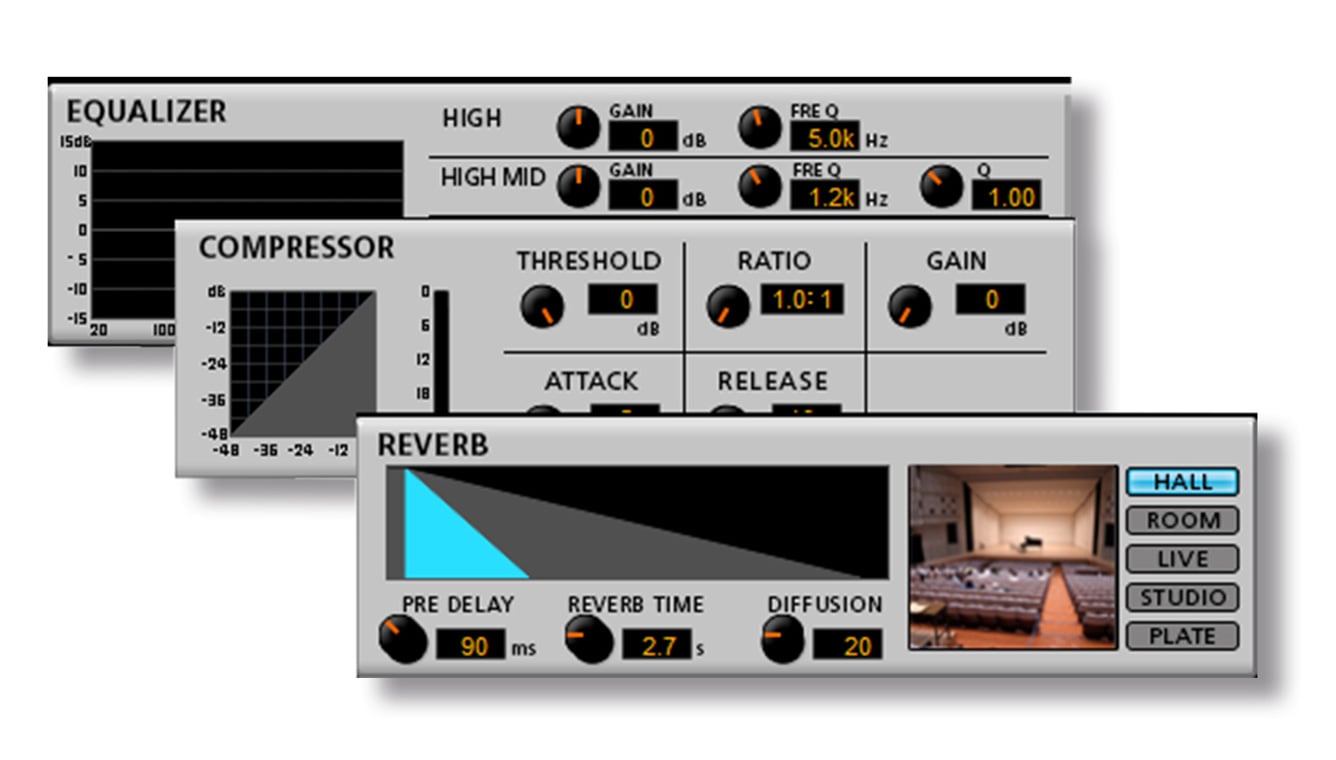

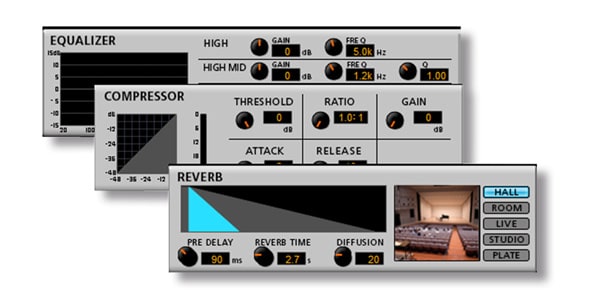

DSP Mixer and Diverse Effects
The DSP mixer controls all inputs and outputs, and each input is equipped with a compressor, 4-band EQ, and phase function. It also features a high-quality TASCAM original reverb, helping you create professional-quality sounds.
All effects are processed internally by the DSP, eliminating latency and reducing the load on your computer, ensuring stable operation on Windows and Mac.

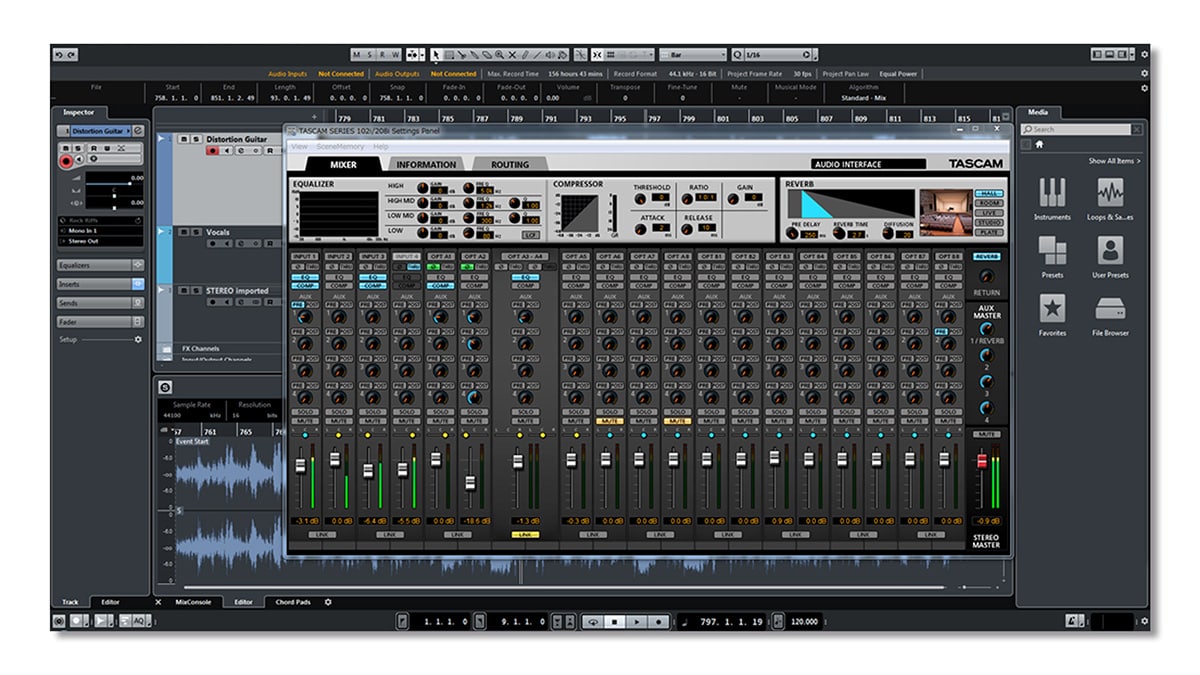

DSP Mixer and Effects Control Software
TASCAM SERIES Settings Panel control software allows easy fader level control, effect operation, and audio routing. Included.

Continue to create as you wish
You can also connect to mobile devices such as the iPad. It supports free recording, unconstrained by location or format, and evolving with the times.

■System Requirements
*For the latest system requirements, please refer to the compatible computers and operating systems at the bottom of the manufacturer's website.
