ADA / ADGCS5

A guitar cabinet simulator with a simple operation. It produces a realistic sound as if a microphone was placed on the cabinet. You can create your own sound with five switches, including American and British. It is equipped with a DI box function, headphone output, and power amplifier connection function, making it useful for a variety of purposes.

■ Cabinet Simulator A new addition to the GCS family: the GCS-5. The tone setting switches have been increased from four to five, allowing you to choose between American or British. In addition, input level settings and a level meter have been added, allowing you to set the levels more precisely.
■ Easy to use and realistic sound The GCS is a guitar cabinet simulator with an analog circuit that is very easy to use. You can play and record with a sound that sounds as if it was played in a cabinet and recorded with a microphone, even without using a microphone. The sound can be easily set with five switches and one knob.

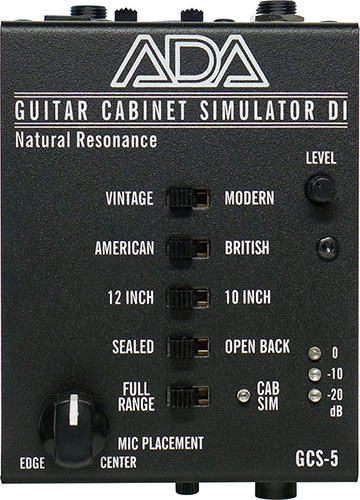

■ Features unique to the GCS-5
You can choose between American or British speaker cone types. American has a crisp and open sound, while British has a heavy and solid sound. Phantom power compatible When connecting to a mixer with an XLR terminal, this unit will work without any problems even if the phantom power cannot be turned off on the mixer side. Level setting & LED meter The input level can be set, making it easier to connect to more devices. It's easier to check because it has a level meter.

■Other functions

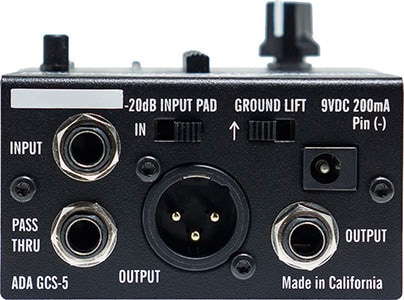

DI box function It can be used as a DI box to connect a guitar or bass to a mixer using the balanced XLR output terminal. Power amp output can be connected You can connect the speaker output of an amp head or power amp. When using this function, be sure to connect a speaker or dummy load. Headphone terminal Just connect this unit after the effector and you can monitor the sound of an amp playing through a speaker with headphones. With volume.

■Cabinet simulator & DI box

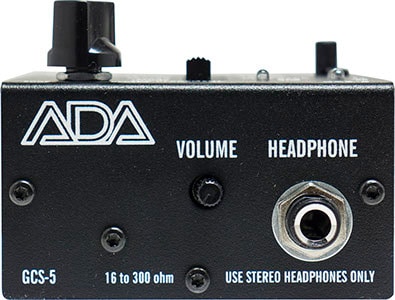

■Headphone terminal
■Input impedance: 105kΩ
■Output impedance: 1000Ω
■Headphone output: 16Ω to 300Ω
■Power adapter: 9VDC 200mA 2.1mm
■Dimensions: 83W x 63H x 118D mm
■Weight: 419 g
