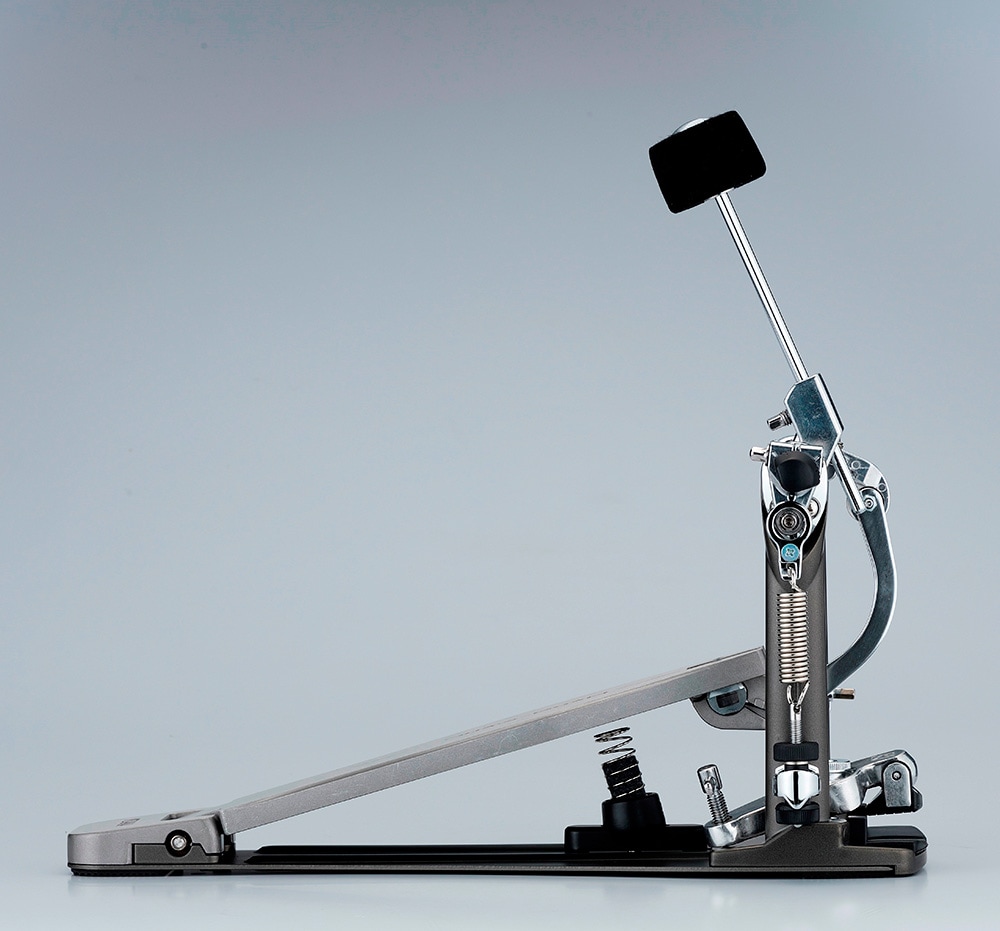

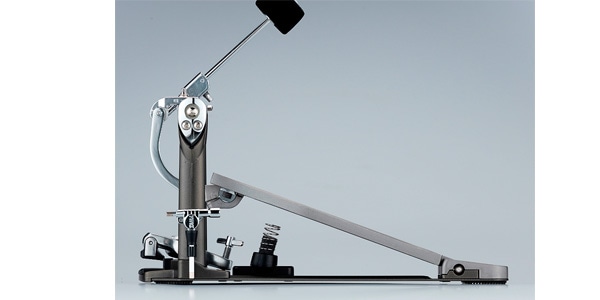

TAMA / HPDS1

The Dyna-Sync pedal pursues the perfect balance of ""power and speed"" as well as ""natural feeling"" by setting the contact point of the direct link that connects the cam and the footboard to the optimal position / angle. By sliding the upper arm of the cam back and forth, the rotation radius of the cam can be adjusted ""infinitely"". By changing the feel to various pedaling according to your preference, it brings a sense of unity that fits any playing style.

■Drum pedal
■Dyna-Sync
■Single pedal
■Direct drive
Drum pedal that uses a ""direct drive"" method that uses a metal arm to connect the cam and footboard
■Dedicated hard case included

●Optimized Transmission Design
Direct drive, which uses a metal arm to connect the cam and footboard, eliminates the ""play"" of the action during playing, achieving a very light feel and quick return of the footboard. On the other hand, the unique feeling that changes depending on the angle of the footboard is a matter of preference for players.
The Dyna-Sync pedal pursues the perfect balance of ""power and speed"" as well as ""natural feeling"" by setting the contact point of the direct link that connects the cam and footboard to the optimal position/angle regardless of the angle of the footboard.

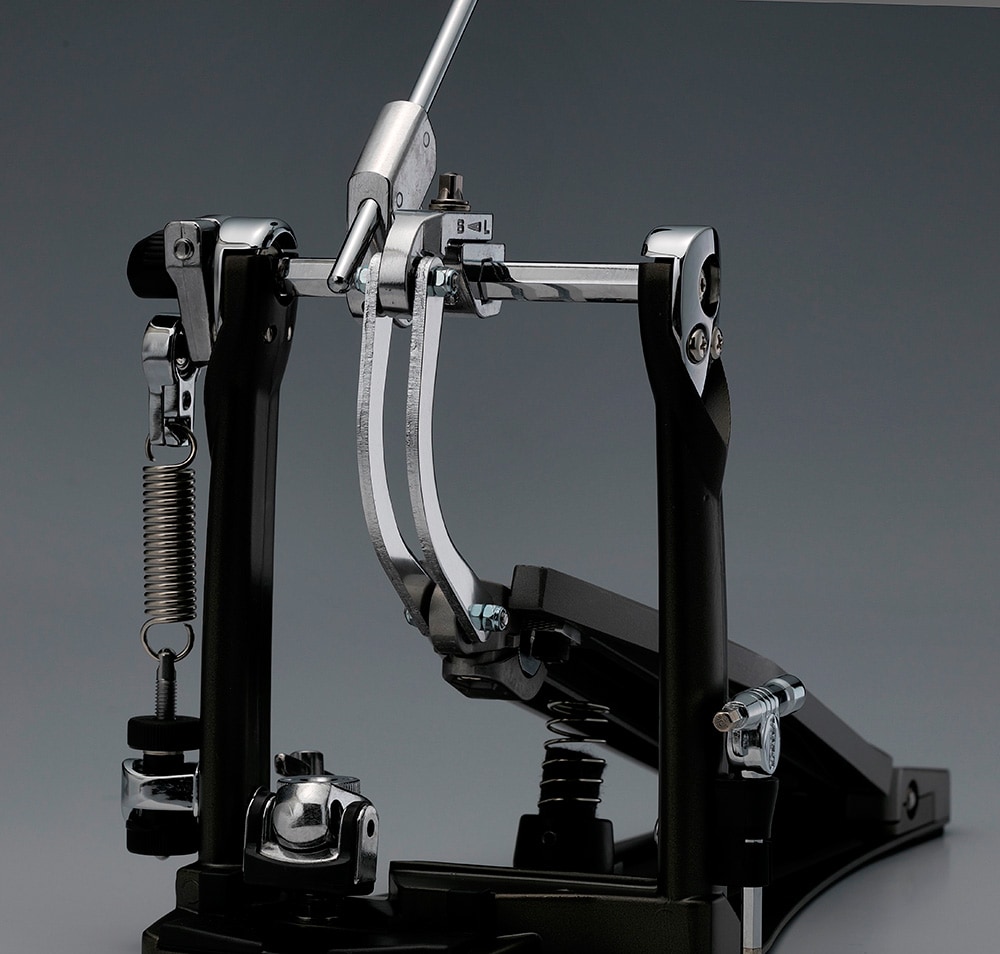

●Dual Linkage
In order to convert the force of stepping on the footboard into the rotational motion of the cam without waste, a rotating shaft with a bearing is installed on both ends of the joint part of the arm that connects the cam and footboard. Moreover, by holding them with the same force from both sides with two arms, energy loss at the connection is prevented to the utmost extent, achieving incredible reaction speed and power.

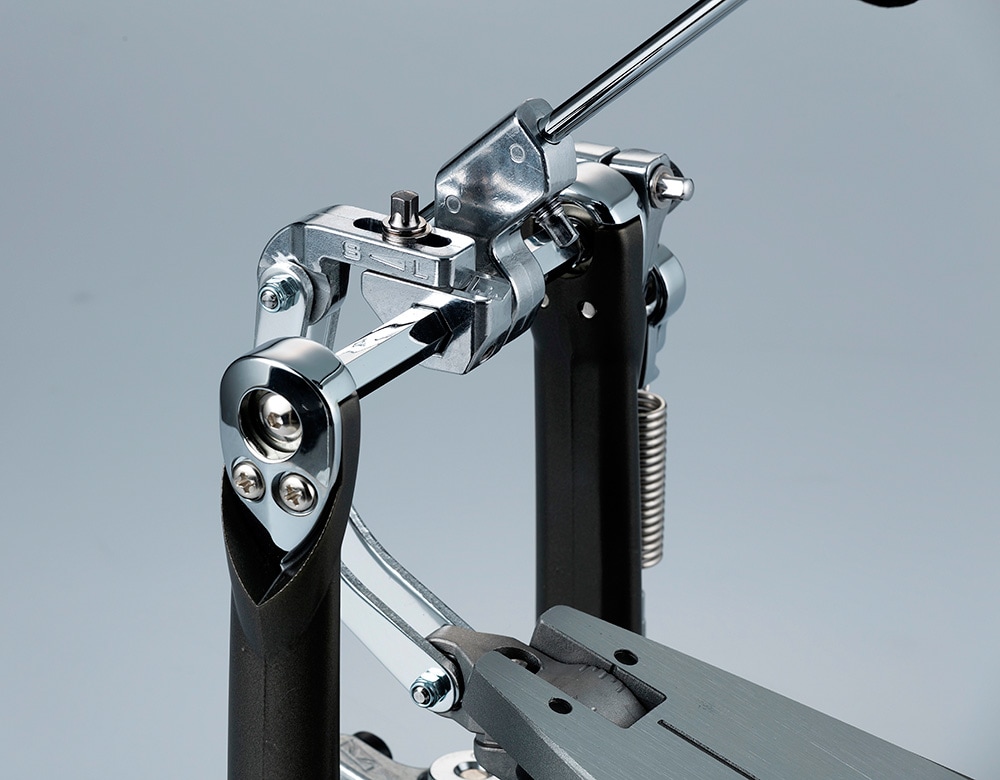

● Slidable Cam
The rotation radius of the cam can be adjusted ""steplessly"" by sliding the upper arm of the cam back and forth. By extending the arm and increasing the rotation radius (moving in the direction of L: Large), the change in the angle of the footboard and the force required for stepping during play becomes gentler, achieving high operability that allows you to express a fine touch like a chain drive pedal. Conversely, by shortening the arm and making it smaller (moving in the direction of S: Small), the change in the angle of the footboard and the force required for stepping becomes larger, resulting in an action that enhances the direct drive feeling, and it becomes possible to obtain a solid feeling of stepping. Although it is a direct drive action, it can be changed to a variety of footsteps according to your preferences, bringing a sense of unity that fits any play style.

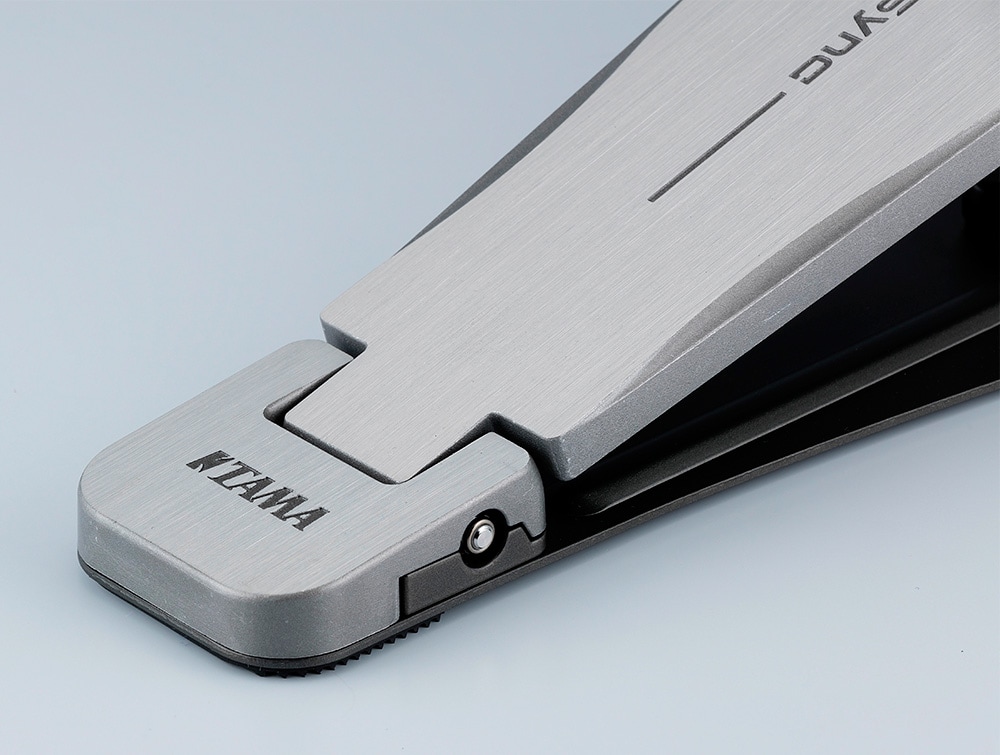

● Footboard Angle Adjustment
An important function for customizing to each drummer's individual preferences is the angle adjustment of the footboard angle independent of the beater angle. The Dyna-Sync pedal is equipped with a new and unique angle adjustment function that has never been seen before. At the tip of the footboard, there is a clamp that connects the linkage extending from the cam, and by adjusting the bolt provided there with a tuning key, the angle of the entire footboard can be changed and firmly fixed.

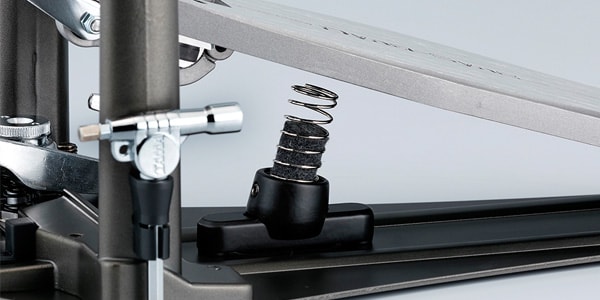

●Sync-Coil
The Sync-Coil is a TAMA original mechanism that assists the return of the footboard by touching the back of the footboard with a coil just before the beater hits the head. It uses a spring that is 1.5 times stronger than the Cobra Coil of the Cobra pedal, so you can get a stronger effect.

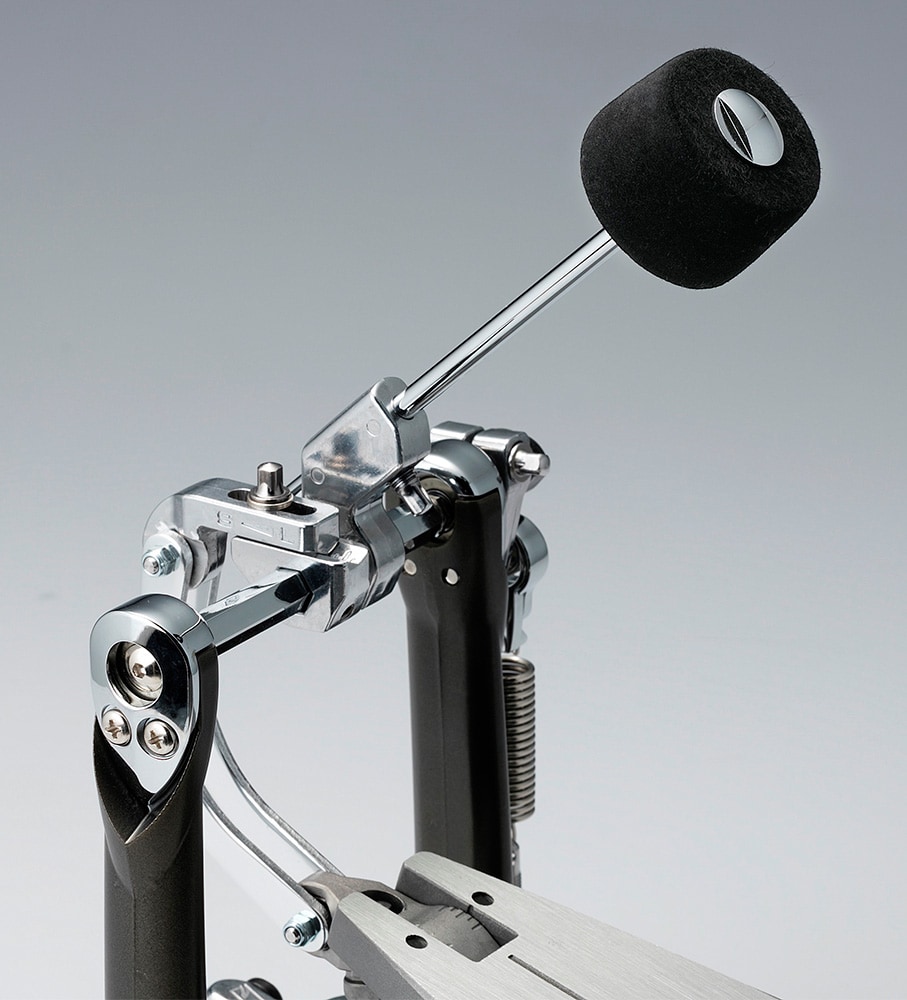

●Dyna Beater
A traditional bale-shaped beater characterized by black felt and a slightly tapered shape. It achieves a natural feeling when playing and a clear, dynamic bass drum sound.

●Hinge Guard Block
The bearings at both ends of the hinge shaft are held by sandwiching them from above and below, dispersing the force applied to the bearings when the pedal is pressed. The load on the hinge shaft itself can be reduced, realizing higher precision rotation, smoother operability, and high durability.

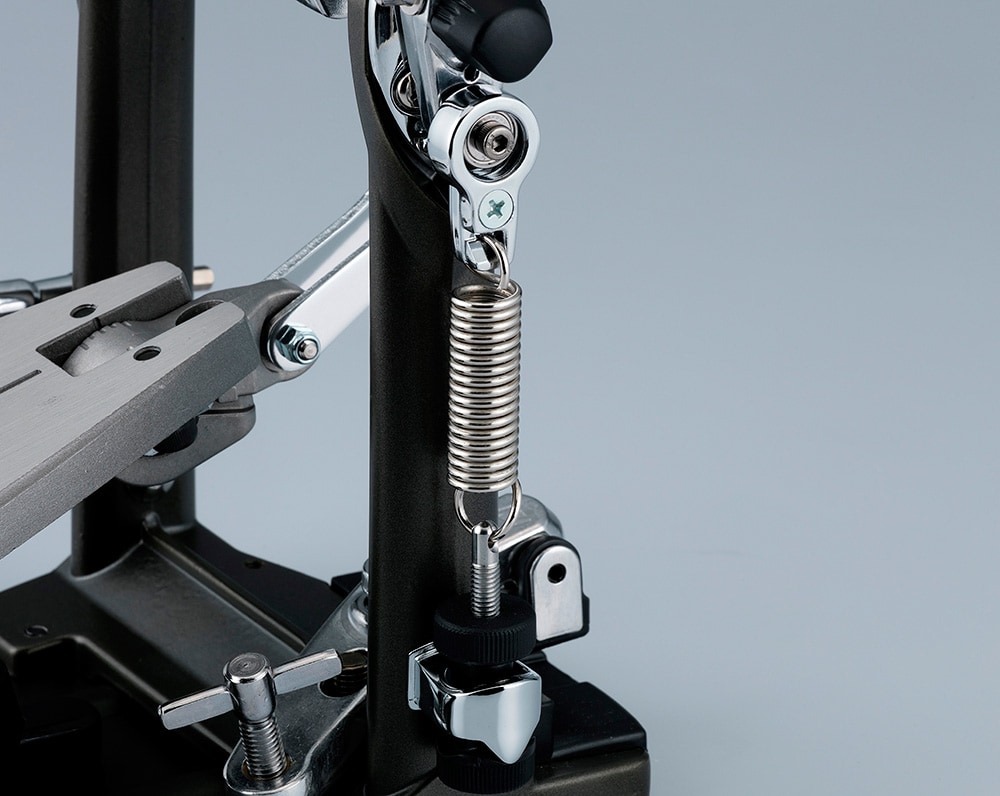

●Swivel Spring Tight
A mechanism for maximizing the effect of the spring. The axis that fixes the lower end of the spring rotates, so the spring always expands and contracts vertically without distortion even with intense movement. This converts the elastic energy stored in the spring into energy that moves the pedal without loss. In addition, by reducing the friction on the connection part with the spring, ideal pedal work has been achieved with light pressure and quick return.

●Para-Clamp II Pro
TAMA's original clamp that securely holds bass drum hoops of various thicknesses. The tip that fixes the bass drum hoop is equipped with rubber to increase grip, and exerts strong fixing force while suppressing damage to the hoop. In addition, the tip adopts a structure that moves in three dimensions, so even if the front side of the bass drum is extremely raised, the tip fits according to the angle and stabilizes the pedal.

●Oiles Bearing Hinge
The hinge that supports the footboard uses an ""Oiles"" bearing made of bell brass mesh coated with Teflon resin. This prevents the footboard from wobbling sideways, allowing for smooth pedal work.
