MOOER / Micro Preamp 020

The Mooer Micro Preamp 020 is a preamp pedal that captures the sound of the BRUNO UnderGround 30, which is considered the best guitar amplifier in the world. It is silky and deep. It has a blue channel that creates a vast tone, and a red channel that has rich harmonics and a singing tone. You can enjoy the finest tone with a small pedal.

■Guitar Effects
■Preamp
■BRUNO UnderGround 30 Type

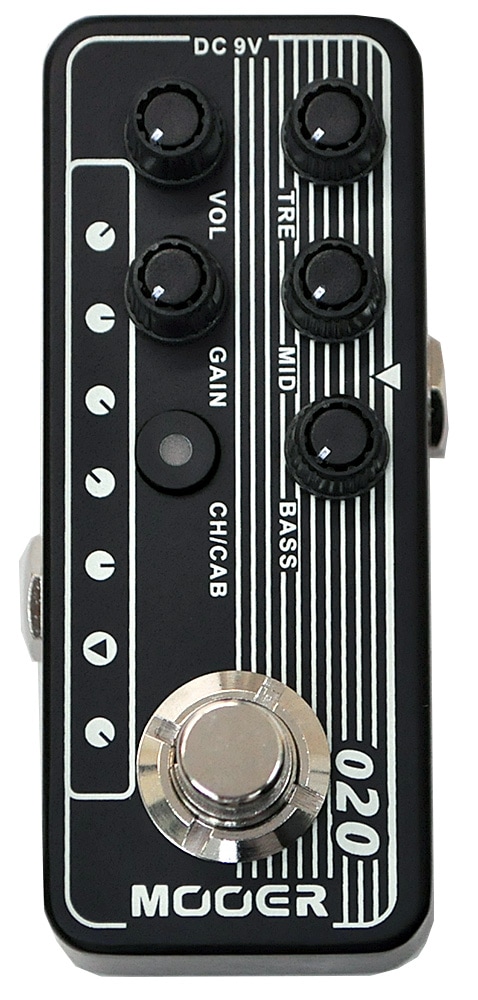

■Controls
・VOL: Adjusts the volume.
・GAIN: Adjusts the strength of distortion.
・TRE: Adjusts the high frequency output.
・MID: Adjusts the mid frequency output.
・BASS: Adjusts the low frequency output.
・CH/CAB: Push to switch channels. Also, press and hold for 2 seconds to switch the cabinet simulator ON/OFF.
・Footswitch: Equipped with two operating modes. Press and hold the footswitch for 2 seconds to switch operating modes.
Active/Bypass: Press the footswitch to switch between active and bypass of the preamp. Can be used like a normal effect.
Channel Switching: Press the footswitch to switch between two channels. Useful when using as a preamp that is always ON.
■Connections

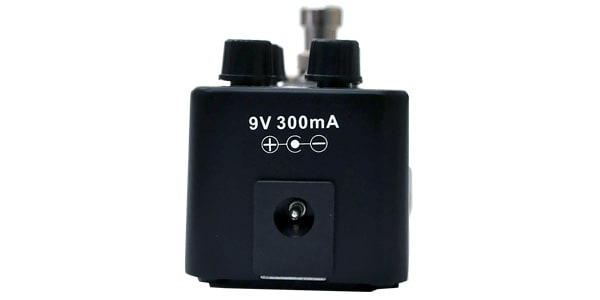

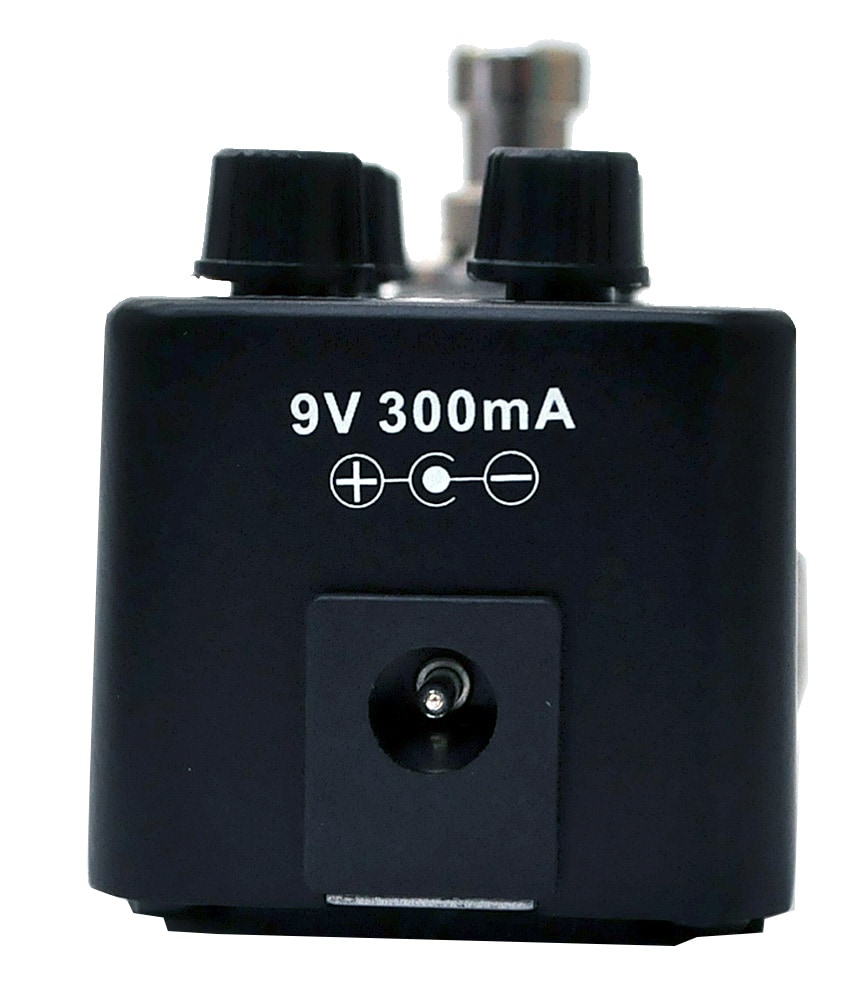

・DCIN: Connect a center negative DC9V adapter. The current consumption is 300mA.

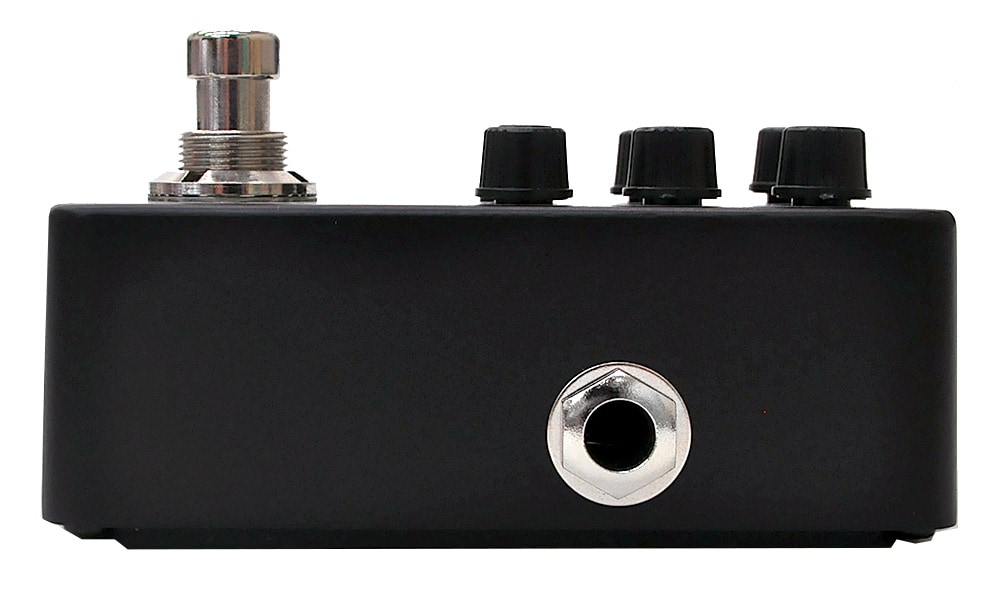

-INPUT: Connect the cable from the instrument. When using as a preamp, it is also effective to connect a distortion effecter in the front stage.

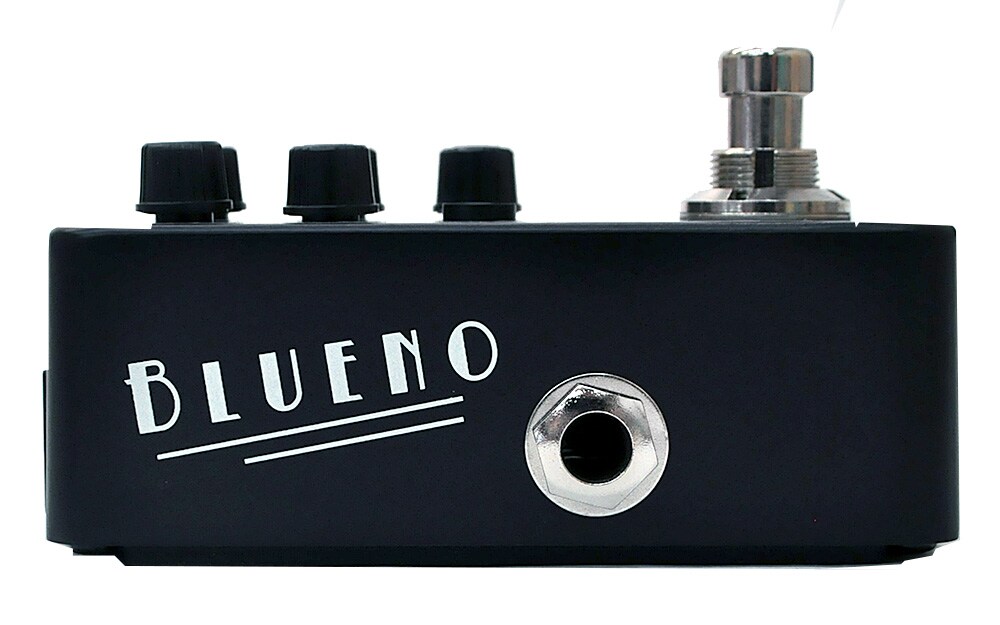

-OUTPUT: Connect the cable from the amplifier or PA. Connect to the amplifier's input, effect return, PA, etc. It is effective to connect spatial effects in the back stage.

■Specifications
Input: 1/4 inch mono audio jack (impedance: 1MΩ)
Output: 1/4 inch mono audio jack (impedance: 100Ω)
Power supply: Regulated center negative DC9V adapter (batteries cannot be used)
Current consumption: 300mA
Size: 93.5mm (D) x 42mm (W) x 52mm (H)
Weight: 160g

~From the manufacturer's website~

■What is the Micro Preamp series?
The Mooer Micro Preamp series is a digital preamp pedal that records the sounds of various vacuum tube amplifiers in a mini-sized housing. ""Intelligent Amplifier Modeling"" technology captures the sound, dynamics, and response of a real tube amp.

This small unit is packed with features. It is equipped with a 3-band EQ, has two selectable channels, and also has a built-in cabinet simulator. The foot switch can be used not only as an active/bypass switch but also as a channel switching switch.

The Micro Preamp series pedals can be used as effects, of course, but can also be connected to the effect return or power amp input to directly drive the amplifier's power amp. In addition, line recording is possible using a speaker simulator. It can also be output directly to a PA or monitor.

■ Equipped with completely independent dual channels
The Micro Preamp series can select two independent channels. Although the control knobs for operation are common, the knob operation does not affect the two channels. When you switch channels with the CH/CAB button or foot switch, the previous settings are loaded as they are, regardless of the current knob position.
In other words, the sound you created once will not be affected even if you switch channels and move the knobs.
When you switch channels, the LED color changes, so you can see the current channel at a glance.

■ Equipped with cabinet simulator
The Micro Preamp series has a built-in speaker simulator that simulates the sound coming from a speaker, and can also be connected directly to a PA, monitor, audio interface, etc. Press and hold the CH/CAB button to switch the speaker simulator ON/OFF. While the cabinet simulator is ON, the LED will flash slowly.

*Image is for illustrative purposes only.
