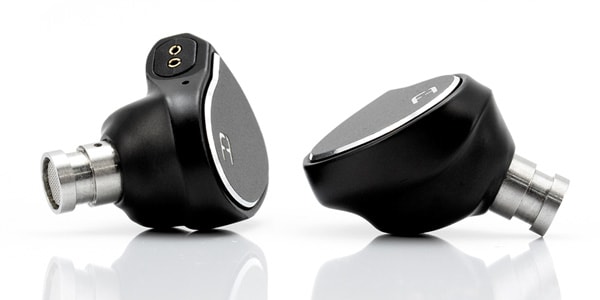

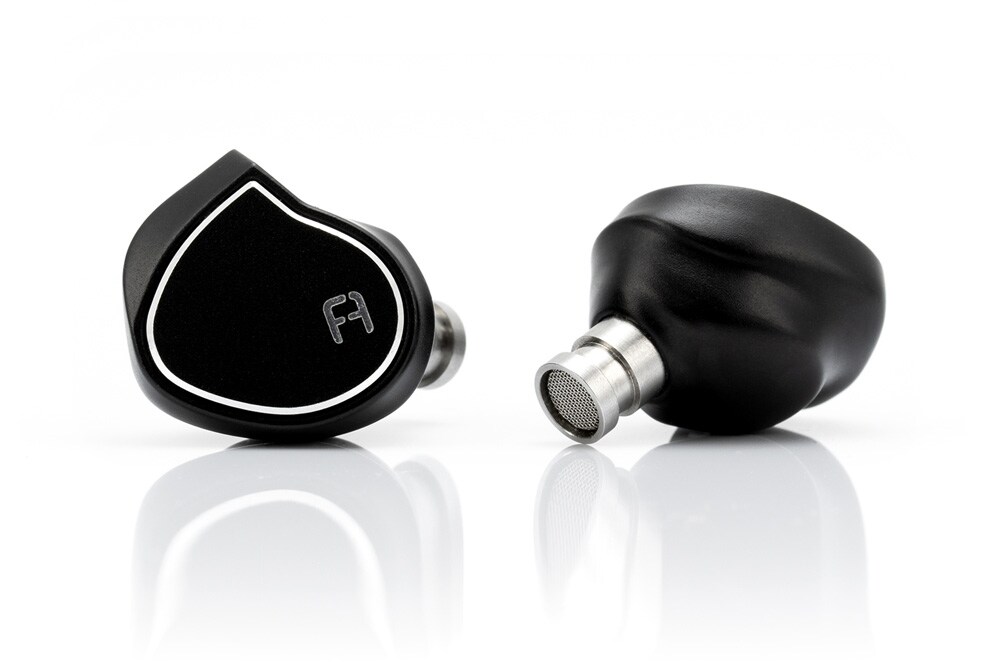

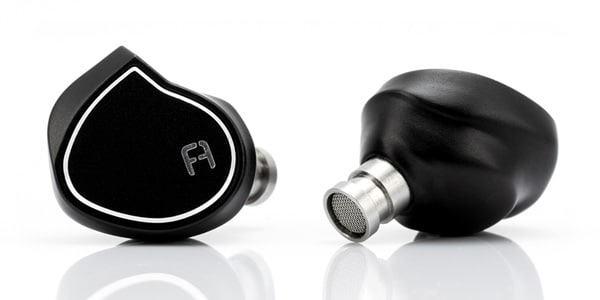

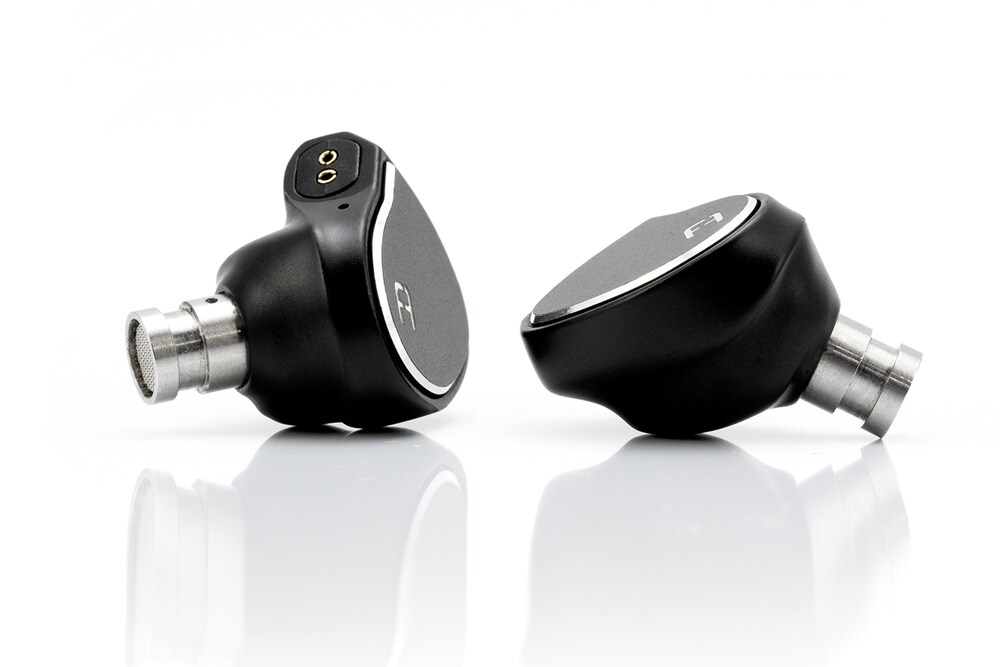

FAudio / PASSION

The new Passion earphones from Hong Kong earphone brand FAudio are equipped with a proprietary 9mm dynamic driver. The highly flexible and extremely thin medical fiber diaphragm delivers a fast response and a tight, crisp sound.

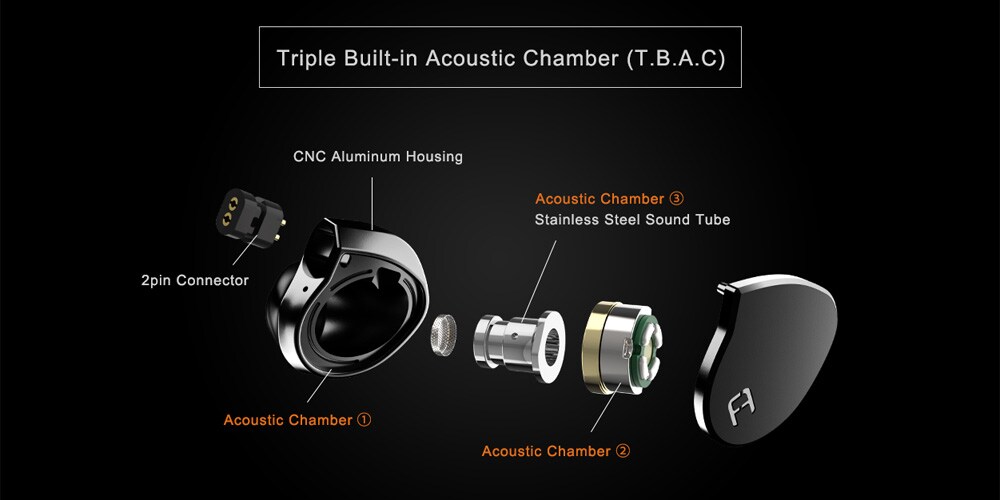

■Passion has three acoustic chambers. By optimizing the housing volume and controlling the air flow inside the earphone housing, the performance of the dynamic driver is maximized.
■The housing is made of extremely durable 6061-T6 aluminum alloy. There is very little resonance inside the housing, and it reproduces clear sound without distortion.
■The ergonomic shape of the housing keeps it comfortable even when worn for long periods of time.
■The included ""Black Jacket Silver Plated Litz Cable"" is made of four silver-plated copper conductors and is covered with a medical-grade PVC jacket that is highly durable and oxidation-resistant.
■The terminal part on the earphone side uses a custom 2-pin terminal made of gold-plated beryllium copper. It uses a well-established terminal structure that is highly conductive and easy to re-cable.
■FAudio earphones come with proprietary silicone ear tips. As the name suggests, the ""FA Vocal"" ear tips improve the audibility of the vocal line, with adjusted nozzle length and inner wall coating. The other, the ""FA Instrument,"" is tuned to focus on the sound of musical instruments, and features tight low frequencies. ＜Specifications＞
■Earphones
■Housing: 6061-T6 aluminum housing
■Driver: 9mm medical fiber dynamic driver
■Sound guide tube: Stainless steel sound tube
■Proprietary technology used: Triple Built-in Acoustic Chamber (T.B.A.C)
■Frequency response: 15-22,000Hz
■Impedance: 16Ω
■Sensitivity: 110 dB
■Sound insulation: -20dB
■Earphone terminal: Custom 2-pin terminal (0.78mm) processed with beryllium copper
■Cable conductor: Silver-plated copper conductor
■Cable length: Approximately 118cm
■Input terminal: 3.5mm mini terminal
■Accessories: Black Jacket Sliver Plated Litz Cable, carrying case, cleaning tool, 1/4 adapter, ear tips (FA Foam x 1, FA Vocal (S/M/L), FA Instrument (S/M /L)), warranty card (1 per year)
