TASCAM / AV-P3040 power distributor

Variations

1系統あたり最大20A供給が可能なTASCAMのパワーディストリビューター。3Pコンセントを後面パネルに6口、非連動3Pコンセントは前面パネルおよび後面パネルに1口ずつ装備。

■ Specifications
・ Main / sub 2 system total 40A maximum supply
・ Up to 20A can be supplied per system

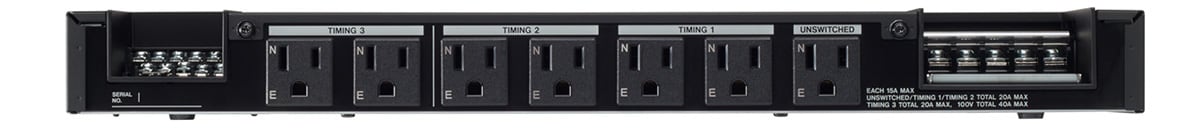

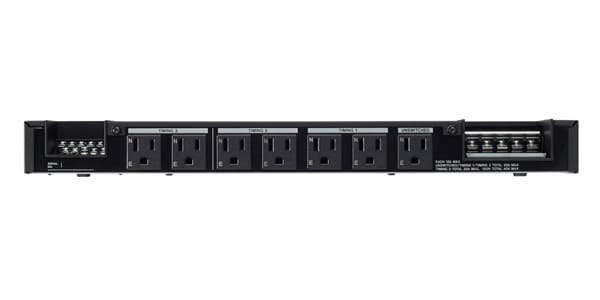

・ 6 outlets linked to the main power supply (rear panel)
・ Two outlets that are not linked to the main power supply (one front panel, one high-exempt panel)
・ 3-step sequence (delay) operation function that can set operation time
・ Main power switch clear cover and front panel cover equipped to prevent malfunctions and accidents
・ Equipped with a breaker that protects the power supply from overload (Main: 20A, Sub: 20A, Front: 3A)
・ Supports a cascade that can build a supply system of 40 A or more

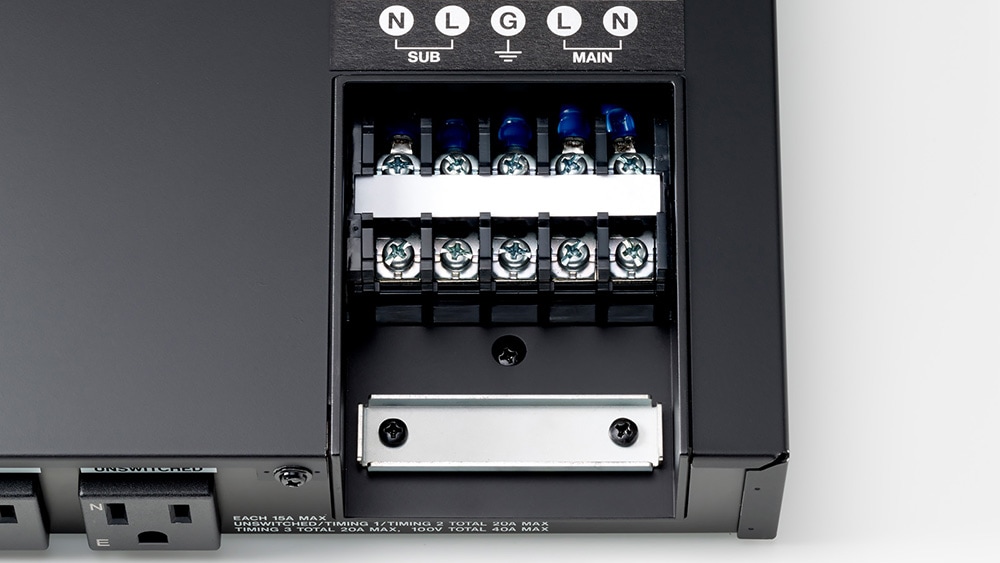

・ Equipped with an external control terminal that can support a wide variety of external controls
・ Supports emergency broadcasting in which the power supply is cut off by signals from emergency broadcasting equipment
・ A long body with a depth of 300 mm for easy setting
・ 1U rack mount size
