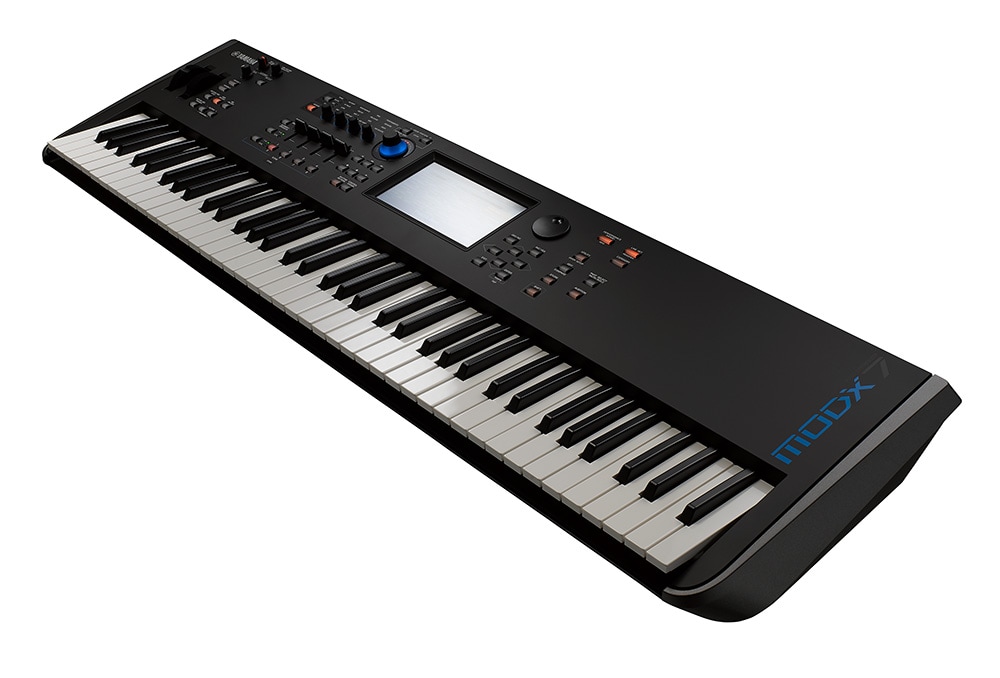

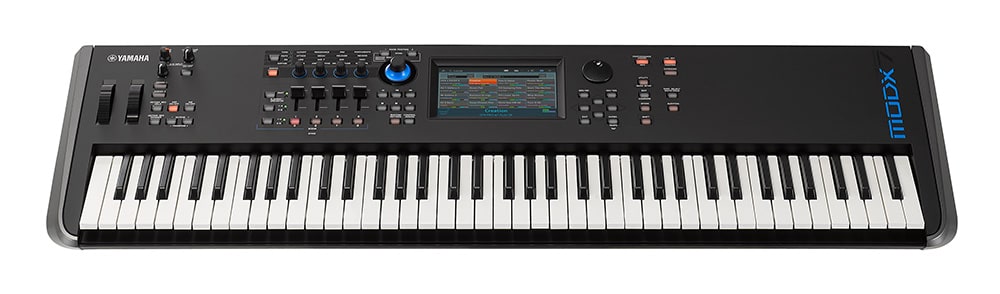

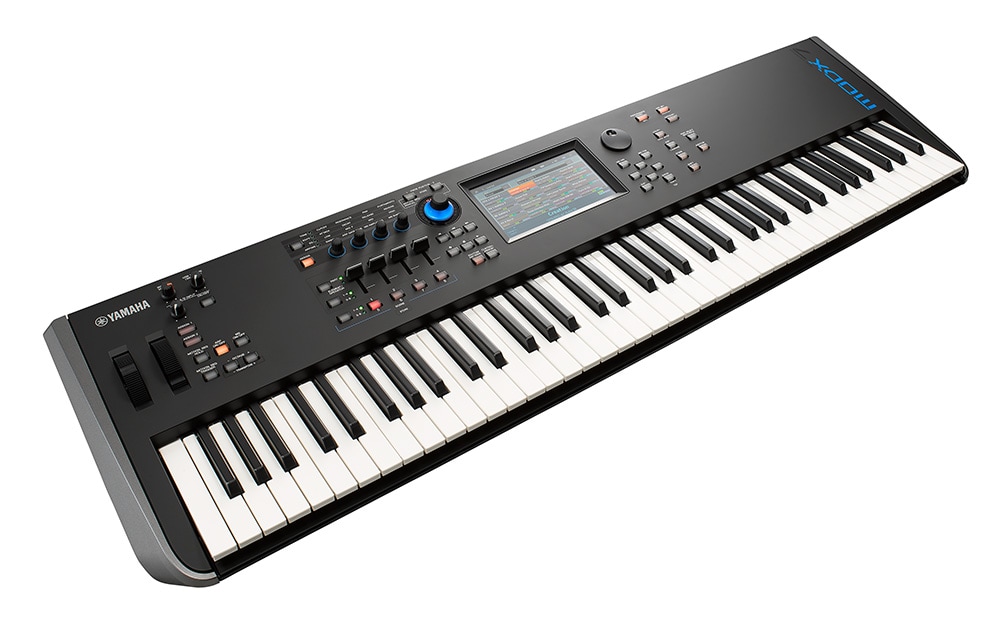

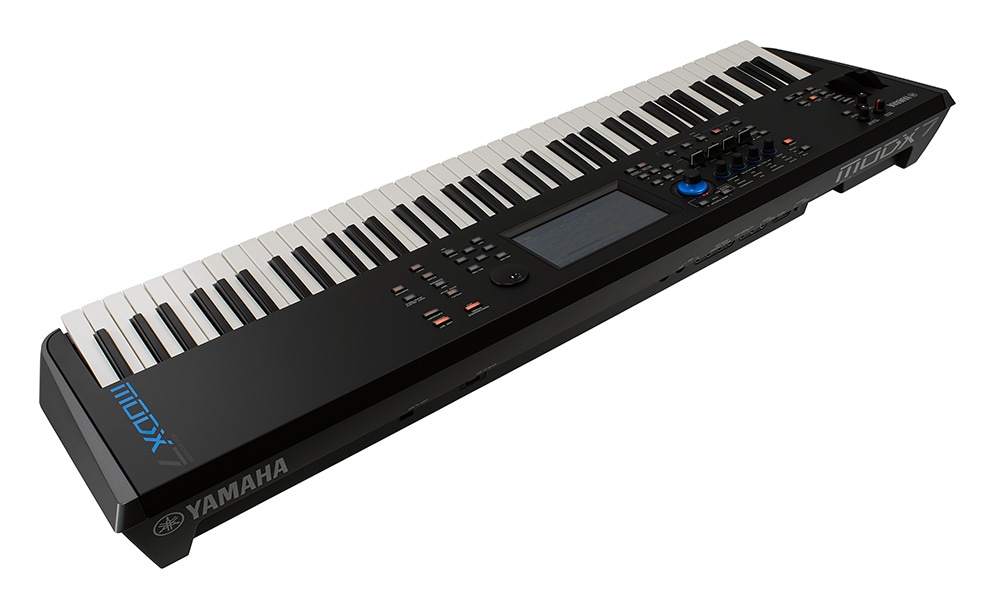

YAMAHA / MODX7 Keyboard synthesizer

Equipped with AWM2 sound source, FM-X sound source and the Super Knob which are also found on the MONTAGE. AWM2 is a sampling sound source of 5GB or more. FM-X is an FM sound source of 88 algorithms of 8 operators (7 waveforms can be selected for each). The Super Knob can control up to 128 effects and modulator parameters with a single knob, allowing for smooth and dramatic tone changes!

[Keyboards]
・ Number of keys: 76 keys
・ Type: Semi-weighted keyboard
・ Velocity: Yes (Initial touch)

[Sound source section]
・ Sound source method: Hybrid (PCM & FM)
・ Motion Control Synthesis Engine AWM2 (8 elements)
・ FM-X: 8 operators (88 algorithms)
・ Timbre: 16 built-in sound sources, audio input part (A / D stereo part, USB stereo part)
・ Preset: 5.67GB equivalent (16bit linear conversion), user: 1.0GB
・ Number of performances: about 2,000
・ Filter: 18 types

[Effects]
・ 12 kinds of reverb
・ 85 variations
・ Insert 85 types (A, B)
・ 80 A / D part insertions (Equipped with preset programs for each effect type)
・ 5 band master equalizer
・ 1st part equalizer (3 bands)
・ 2nd part equalizer (2 bands)
・ 23 types of master effects

[Sequencer]
・ Capacity: About 130,000 sounds
・ Note decomposition: quarter note / 480
・ Tempo: 5 to 300 BPM
・ Performance recorder: 128 songs
・ Number of tracks: 16 sequencer tracks, 1 tempo track, 1 scene track
・ Recording method: Real time (replace, overdub, time punch)
・ Playback: MODX original format, SMF format (0,1)

[Arpeggiator]
・ Number of parts: Maximum 8 parts
・ Presets: 10,239
・ User presets: 256
・ Motion sequencer: Up to 8 + 1

[Number of live sets]
・ Presets: 256
・ Users: 2,048

[Control unit]
・ Master volume
・ A / D input gain knob
・ USB volume
・ Pitch bend wheel
・ Modulation wheel
・ Control slider x 4
・ Knob x 4
・ Super knob
・ Data dial

[Display]
・ 7 inch wide VGA TFT color LCD (with touch panel)

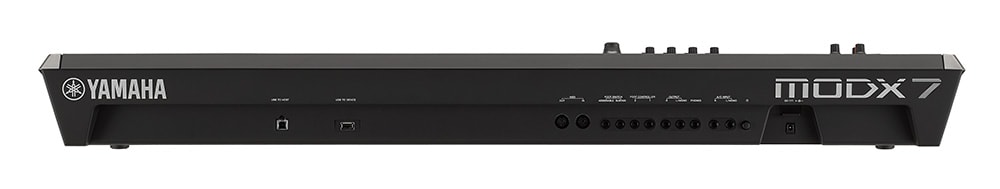

[Connecting terminal]
・ USB TO DEVICE
・ USB TO HOST
・ MIDI [IN] / [OUT]
・ FOOT CONTROLLER [1] / [2]
・ FOOT SWITCH [ASSIGNABLE] / [SUSTAIN]
・ OUTPUT [L / MONO] / [R] (standard phone)
・ [PHONES] (Standard stereo phone)
・ A / D INPUT [L / MONO] / [R] (standard phone)

[Audio interface function]
・ Sampling frequency: 44.1kHz
・ Number of input channels: mono 4ch / stereo 2ch
・ Number of output channels: mono 10ch / stereo 5ch

[Power supply]
・ Power consumption: 16W (when using PA-150B)

[Dimensions]
・ Width: 114.4cm
・ Height: 13.4cm
・ Depth: 33.1cm
・ Weight: 7.4kg

[Accessories]
・ Power adapter
・ Instruction manual
・ Warranty card
・ CUBASE AI DOWNLOAD INFORMATION
