MUSICOM LAB / EFXMKV

The EFX MK-V is an audio controller that covers all the functions required by professionals and achieves high sound quality. In addition to its general loop switcher and MIDI controller functions, it also comes with editor software compatible with both Windows and Mac OS, allowing you to perform complex programming and MIDI interface on your PC.

■Loop switcher & MIDI controller
■Main features
- ""Song mode"" allows you to register each preset by song
- You can call up the normal 360 presets (6 x 60 BANK) by song
- ""Set mode (set list)"" allows you to rearrange each song in the order of the set list
- You can change the order in which the ""songs"" you create are called up to match the set list of the day
- You can swap and parallelize the connection order of the effects for each preset
- Equipped with a high-quality mixer inside, you can freely create presets regardless of the order of the loop numbers
- Freely changeable buffer position for each preset
- Equipped with a total of three high-quality buffers: an ""input buffer"" in the input stage, an ""output buffer"" in the output stage, and a buffer whose insert location can be freely changed
- The two buffers in the input/output stage can also be ""used / ""Not used"" can be set individually.
- Spillover function that leaves delay sounds, etc.
- When switching from a preset containing reverberation sounds such as delay or reverb to the next preset, it is possible to leave the sound of the previous preset until the reverberation ends.
- Can send any MIDI signal
- Can send MIDI PC# (Program Change) and CC# (Control), operate CC# in real time with a connected expression pedal, and set BPM.
■Function details

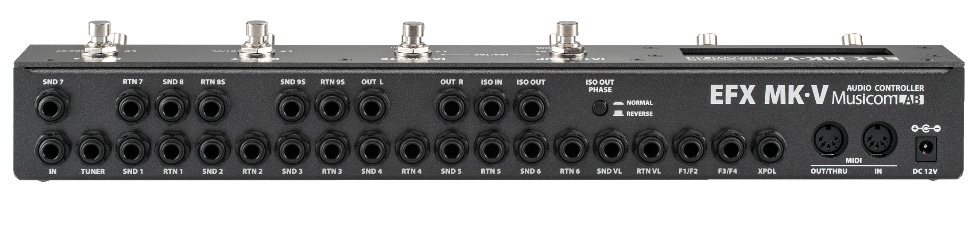

- 9 x Audio Loops (7 Mono Loops, 2 Stereo Loops & 1 Volume Loop) The volume loop can be switched with the IA switch and preset.
- 2 x Stereo Loops use TRS jacks for stereo connection.
- The connection order of the loops can be set for each preset.
- Equipped with three buffers: input buffer, output buffer, and movable mobile buffer. Each buffer can be turned on/off with the IA switch or preset settings.
- Two mixers (functions) with 3 x inputs (2 Effects & Dry signals) are built in. The mixer also allows for preset spillover.

- 4 x switching with 2 x TRS jacks. External switching of amplifiers etc. is possible.

- 360 presets (60 banks x 6 presets) & 1 global preset

- 99 song settings are possible.

- 99 songs can also be set to 40 sets x 40 songs.

- Clickless (mute) function to reduce pop noise when switching.

- ISO in & ISO out to avoid hum noise and phase problems. (Audio transformer isolation function.)

- 8 x MIDI program change and 8 x MIDI control change can be set to send per preset.

- 25 x MIDI control change can be sent per IA switch.

- MIDI time clock can be sent and can be synchronized with function switch 3. Time synchronization of effects with external TAP jacks is possible in the same way as effects with MIDI functions. BPM can be saved in bank presets and song presets.
- Easily copy presets, banks, songs, and sets.
- 2-line x 24-character LCD display shows preset and song titles.
■Specifications
- Buffer impedance: 2.2MΩ
- Buffer output impedance: 100Ω
- Power supply: 12VDC...DC12V center negative, power supply sold separately (there are no genuine manufacturer products, so please use CLASSIC PRO DC12V2ANS or ""strymon Ojai R30"" etc.)
- Current consumption: 300mA
- Size: 420mm (W) x 96mm (D) x 68mm (H)
- Weight: 1,450g
