3 Monkeys Solderless / DCSOLDERLESSPEDALBOA

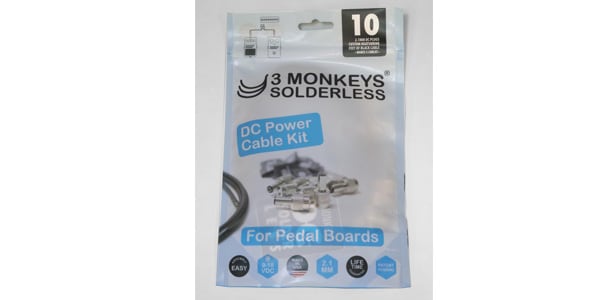

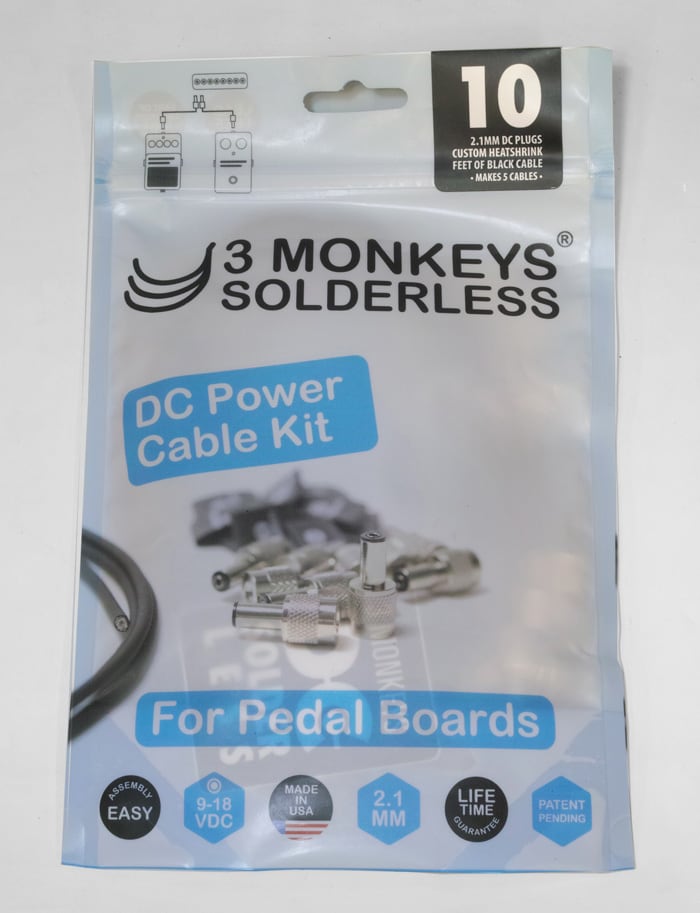

3 Monkeys Solderless / DC Solderless Pedalboard Kit is a solderless DC plug kit. No soldering required + no need to strip the cable or tighten screws - amazing structure! This kit comes with a 3m dedicated cable and 10 dedicated DC plugs.

■DC Cable Kit
■Solderless
■Contents
・3m dedicated cable
・10 dedicated DC plugs
■Features
・No wire stripping required
・No screwing required
・Easy to make, just screw the cable into the plug
・16AWG, 19Strands center core cable
・Low capacitance cable (28-30pF/Foot)
・Patch cables can also be made using the 1/4 inch plugs sold separately
■How to make
1. Cut the cable to the desired length. Make sure the cut is as straight as possible. 3 Monkeys uses a knife. First, refer to the cut of the included cable.
2. Screw the cable into the plug. Screw it in a few times as if tightening a bolt, and insert it all the way. There is no need to tighten it too much.
3. Do the same on the other side.
4. Check the cable for electrical continuity.
■Troubleshooting
・Cable does not conduct electrical continuity: Check that the plug is firmly inserted into the cable.
- If it still does not work, try unplugging the cable, cutting it again and making it again.

*If you have any extra cable left over, it will not go to waste. You can also make additional DC cables by using the 2.1mm DC Solderless Plug alone.
In addition, you can use the same cable to make patch cables by using the 1/4"" Solderless Audio Plug (sold separately).
Don't worry if you have extra plugs left over. You can make more DC cables by using the Solderless Cable (sold separately).
