Meridian Guitars / Funk-U-Lator

■ベース用エフェクター
■シンセ、オートワウ

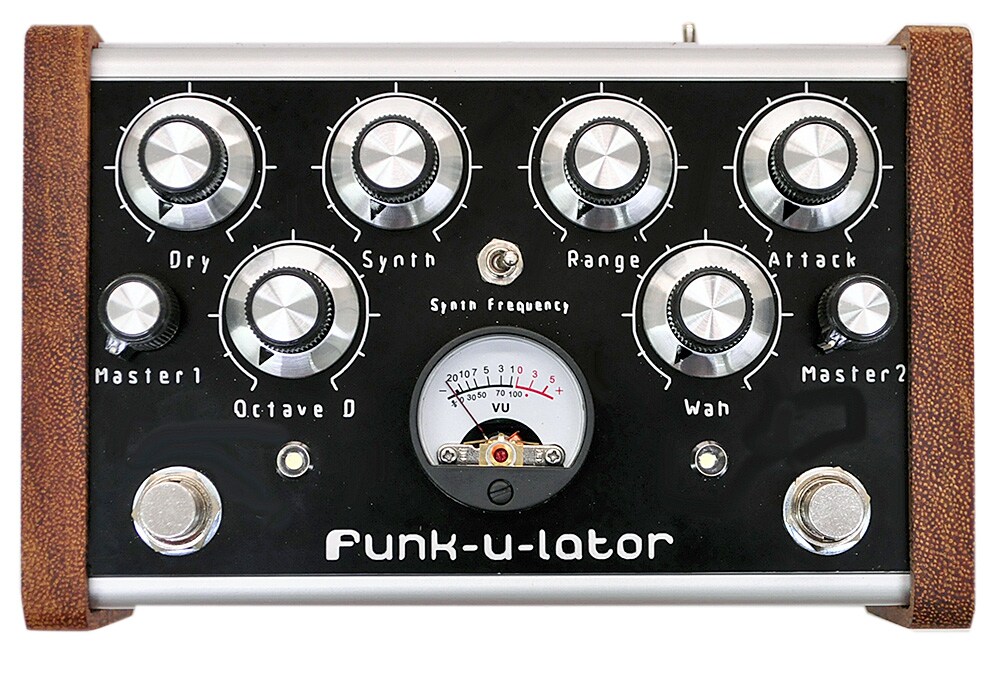

・OCTAVER - SYNTH
DRY： Clean Level (-∞/ +6Db)
OCTAVE D： Sub Octave Level(-∞/ +6Db)
SYNTH: Synth Level (-∞/ +6Db)
MASTER 1：Octaver/Synth Side Master Volume
SYNTH SWITCH： Sets the synth frequency response

・FILTER AUTOWAH
ATTACK： Adjusts the opening threshold of the filter (you need to adjust according to the strength of the picking)
RANGE： Adjusts the frequency range of the filter
WHA： Autowah Level
MASTER 2： Filter Autowah Side Master Volume
SWITCH： True-Bypass
POWER SUPPLY 9v DC
CURRENT FLOW ： 100mA

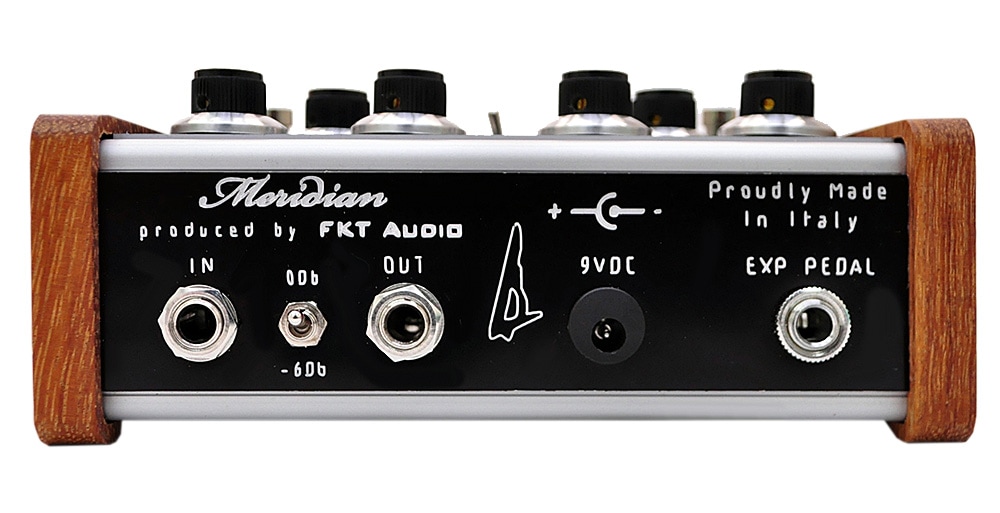

・REAR PANEL
INPUT： Jack (Mono)
OUTPUT： Jack (Mono)
EXP PEDAL INPUT Jack
DC ADAPTOR Jack (9V DC)
SWITCH： 0Db/-6Db (Sets the octaver input signal)
