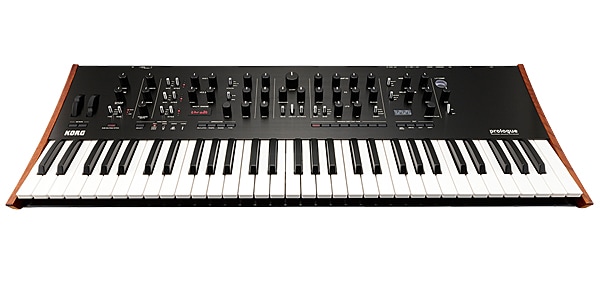

KORG / PROLOGUE-16　ハイブリッドシンセ(アナログ&デジタル)

"A top model of an analog synthesizer. You can create a sound that combines the presence of analog with the glitter of digital. An analog compressor with VU meters, like studio gear, is only built into Prologue-16. It comes with a standard 61-key keyboard, so it's also recommended for those who want to play well. "

[Limited quantity!]
Exclusive case "SC-PROLOGUE-BK" will be presented as a gift!
*Please note that we will not be able to prepare if we exceed the number we can provide. Please contact us in advance regarding availability.

Keyboard: 61 keys (natural touch keyboard, velocity compatible)
Sound source: analog sound source + multi-digital sound source
Maximum polyphony: 16 voices
Program: 500 (250 preset programs and 250 user programs at the factory)
In addition to the program sort function including voice mode and timbre settings, up to 8 x 4 banks of live set programs can be registered for each program.

Voice mode: 4 (POLY, MONO, UNISON, CHORD)
VOICE MODE DEPTH, which changes different parameters for each mode
Timber: Up to 2 (main timbre, sub timbre)
Configurable layer, crossfade and split
Arpeggiator: 6 (Manual, Rise, Fall, Rise Fall, Random, Poly Random)
Changeable tempo and sound range
Program sort: 8 (PROG NUM, CATEGORY, ALPHABETICAL, LIKE, FREQUENT, ENVELOPE, RANDOM, LIVE SET)
Main synth parameters VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION: PITCH EG (ALL, VCO1+2, VCO2), PITCN EG INT, SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE: NOISE/VPM/USER, OCTAVE, TYPE, SHAPE
MIXER: VCO1, VCO2, MULTI
VCF: CUTOFF, RESONANCE, EG INT, DRIVE, LOW CUT, KEYTRACK
AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
EG: ATTACK, DECAY, SUSTAIN, RELEASE
LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE (FAST, SLOW, BPM), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
Main effect parameters MOD EFFECTS: OFF/ON/SELECT (CHORUS, ENSEMBLE, PHASER, FLANGER, USER), SPEED, DEPTH
DELAY/REVERB: OFF/DELAY/REVERB, TIME, DEPTH
L.F. COMP. (prologue-16 only): OFF/ON, GAIN
MULTI ENGINE noise generator: 4 types
VPM oscillator: 16 types
User oscillator: 16 slots
MOD EFFECTS CHORUS: 8 types
ENSEMBLE: 3 types
PHASER: 8 types
FLANGER: 8 types
USER: 16 slots
DELAY/REVERB DELAY: 8 types
REVERB: 8 types
Controls: Modulation wheel that changes different parameters for each program, pitch wheel, PORTAMENTO knob, VOICE SPREAD knob (prologue-16 only)
Display Main: Organic EL display with oscilloscope function
MULTI ENGINE section: 7 segment x 6 digit LED display
Input/output terminal: Headphone terminal (stereo phone jack)
OUTPUT L/MONO, R terminals (monaural phone jack, unbalanced)
SYNC IN terminal (3.5mm mini jack, maximum input level 20V)
SYNC OUT terminal (3.5mm mini jack, output level 5V)
MIDI IN terminal
MIDI OUT terminal
USB B terminal
EXPRESSION terminal
DAMPER terminal (not compatible with half damper)
Power supply: AC 100V
Power consumption: 23 W
Dimension: 874 (W) x 348 (D) x 118 (H) mm
Weight: 9.1 kg
Accessories: AC power cord
