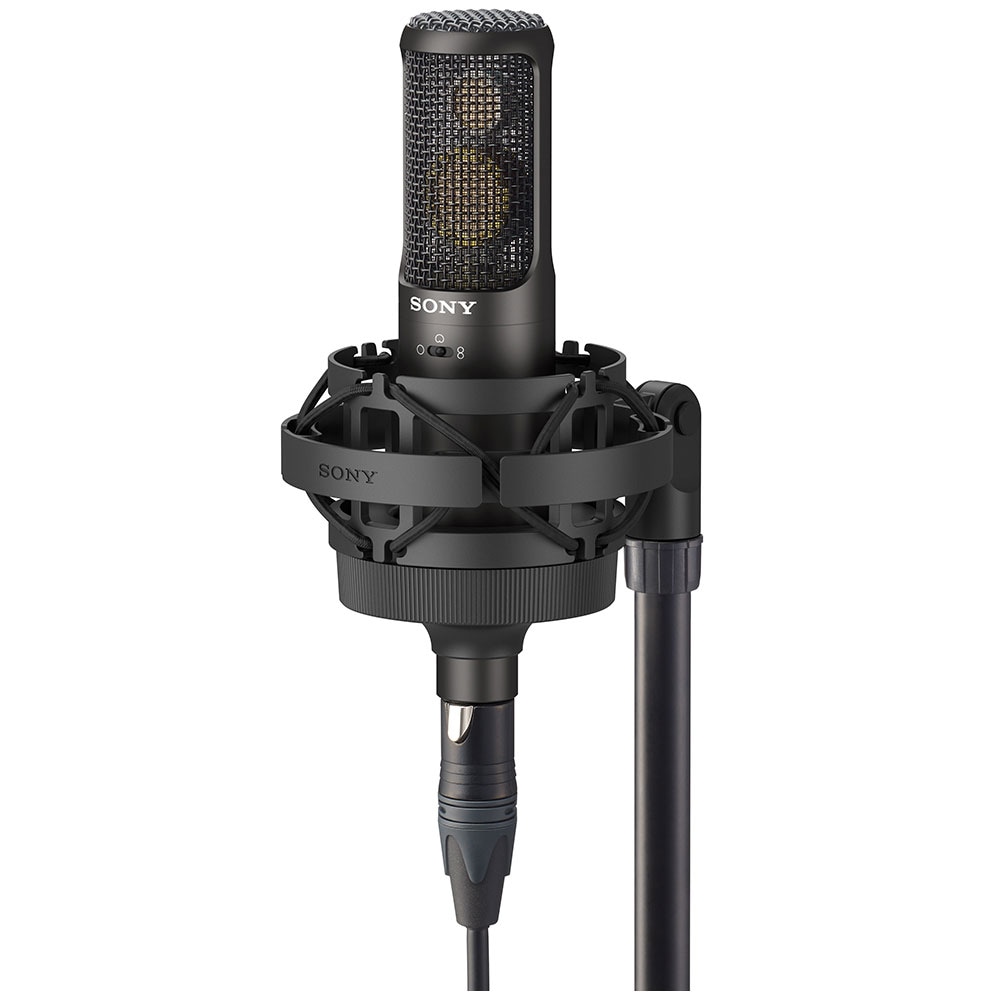

SONY / C-100

This is a high-resolution variable directional condenser microphone. It has both rich midrange and wide high range. It faithfully picks up the airy feeling of a hall. Each one is carefully assembled by hand by skilled workers at Sony Taiyo factory in Japan.

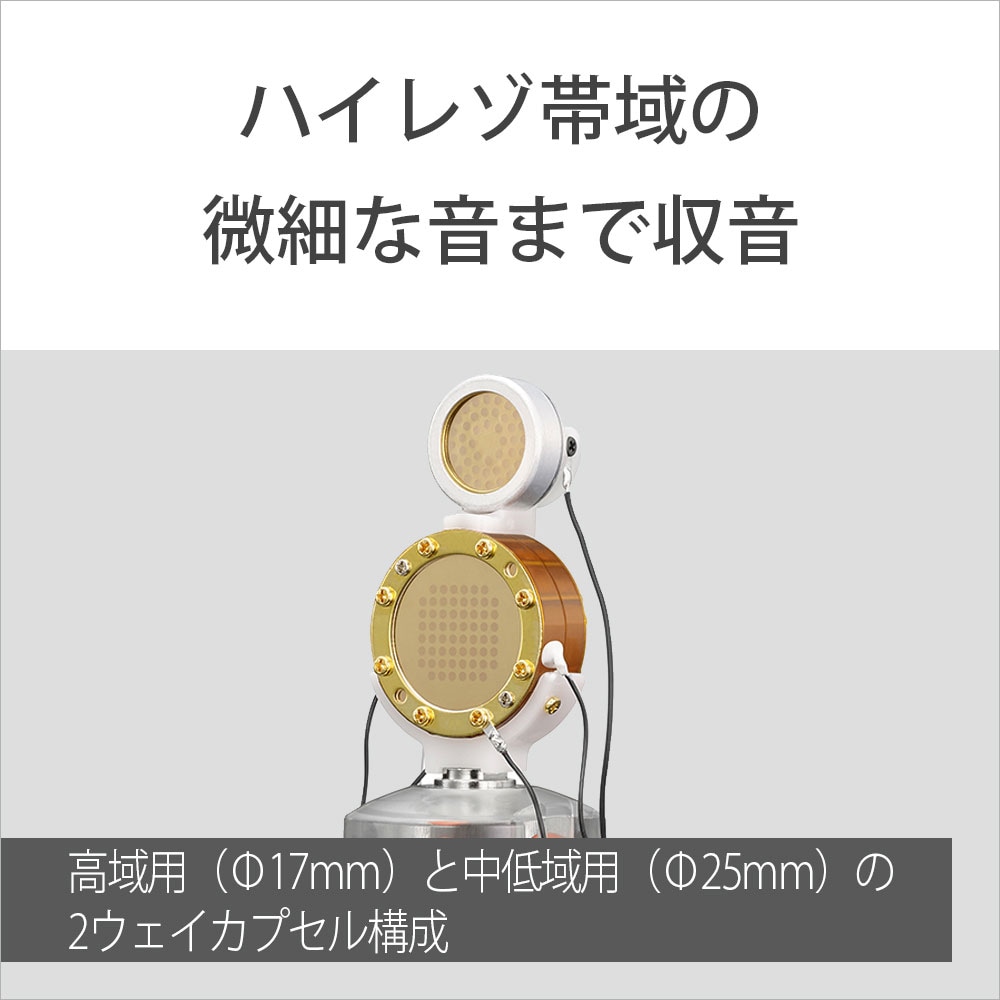

■A high-resolution side-address condenser microphone with a 2-way capsule configuration that uses a newly developed microphone capsule, achieving both a wide high range and rich mid-low range.

A wide range of sound recording from 20 to 50 kHz is possible.

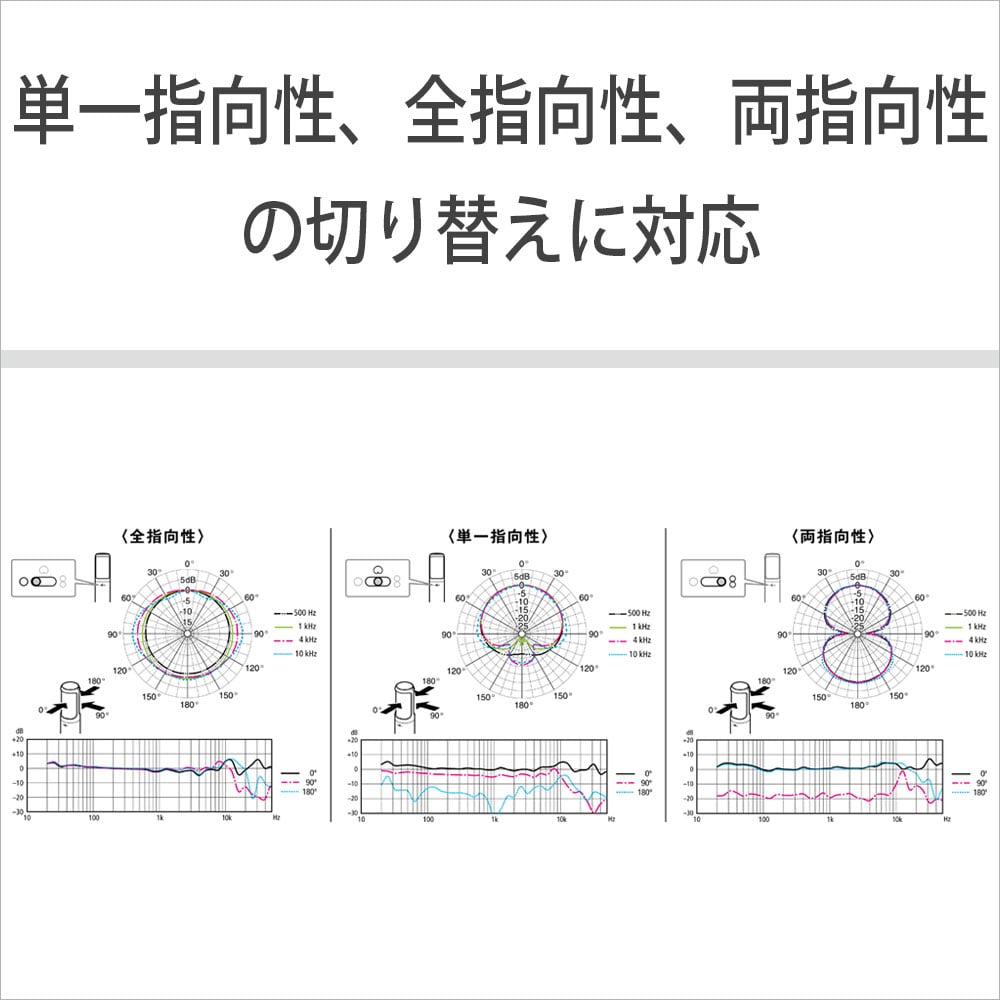

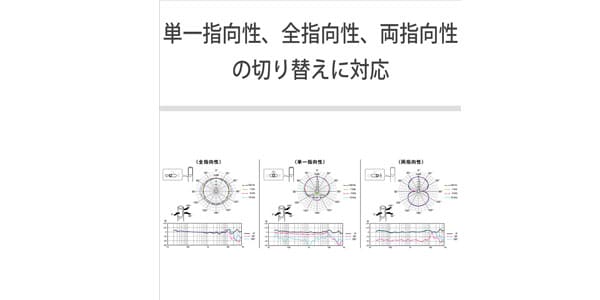

Supports switching between unidirectional, omnidirectional, and bidirectional.

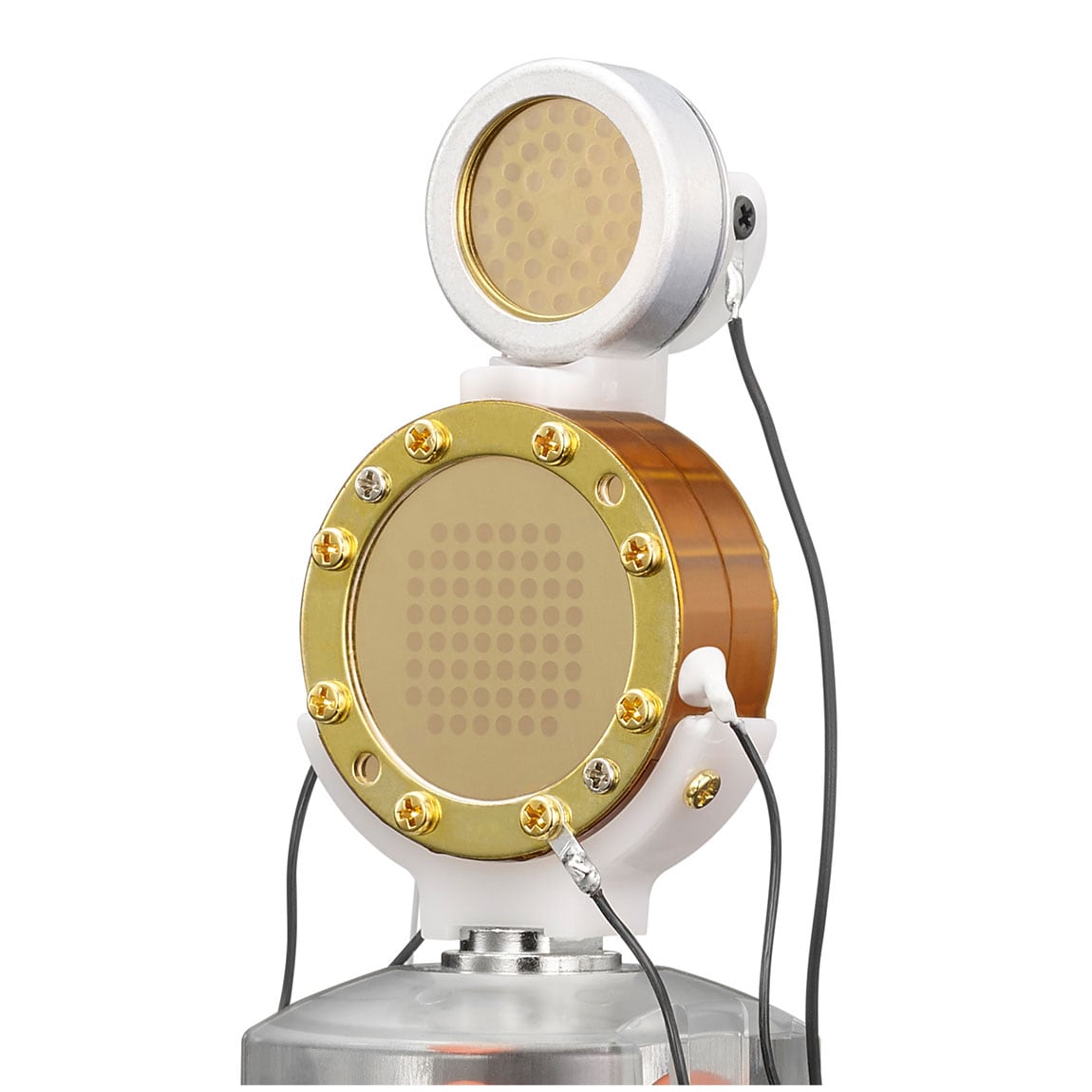

The newly developed microphone capsule for high frequencies achieves high reproducibility up to 50 kHz by reducing the thin and lightweight diaphragm and the acoustic impedance of the back electrode plate. The newly developed microphone capsule for low frequencies achieves high sensitivity by reducing the acoustic impedance of the back plate. A powerful and voluminous recording is achieved. In addition, polyetherimide (PEI), which has high strength and high insulation properties, is used as the insulating structural material for both high and low frequencies, after being subjected to high-precision resin cutting processing. The capsule case and back electrode are made of brass with high-precision cutting processing. High-precision assembly processing achieves high-precision sound recording with little distortion. In addition, the diaphragm vapor-deposited with 24K gold has been used to achieve high-purity sound quality.

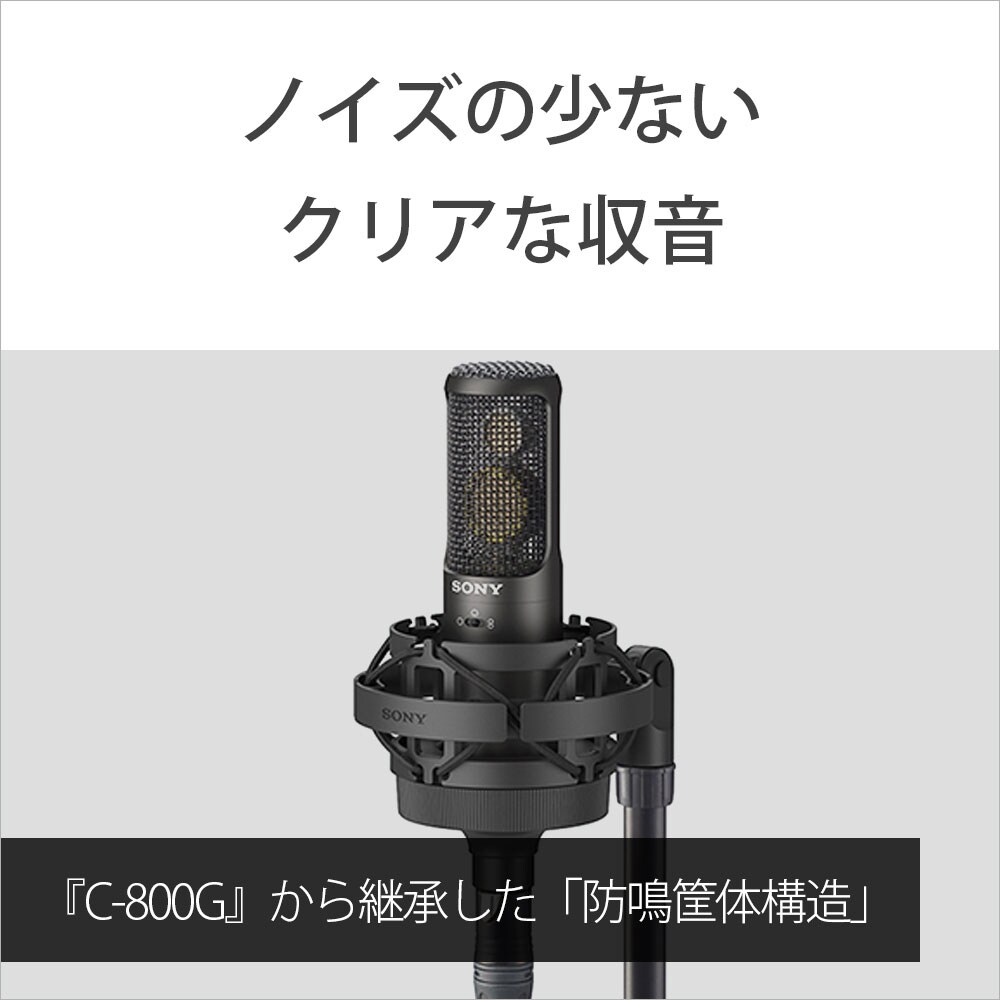

■Inherits the ""anti-resonance housing structure"" adopted in the C-800G
The microphone case and chassis are made of zinc die-cast with a high specific gravity to ensure vibration resistance and vibration control. The microphone sleeve is made of machined aluminum, and the sleeve bottom is made of machined brass, and the structure combines dissimilar metals to eliminate muddy sound caused by unnecessary resonance and achieve clear sound.

■Domestic production with a commitment to reliable products
Professional audio products such as the condenser microphones C-38B and C-800G, and monitor headphones MDR-CD900ST, which are used in many recording studios. These are manufactured by Sony Taiyo, a Japanese factory that has been producing them for many years. Under the strict quality control cultivated in professional products, each product is carefully assembled by hand by skilled workers.

■Common features of the C-100/ECM-100U/ECM-100N
・Sony is the first to introduce a thick copper foil substrate with a copper foil thickness of 70 μm. Achieves dense, rich low-midrange and high-resolution high-range

- Film capacitors are used for all signal line capacitors. This achieves clear, transparent sound quality

- High-precision metal film resistors are used for all signal line resistors. Achieves powerful, highly accurate sound quality

- Hybrid aluminum electrolytic capacitors that are compact and have high capacity are used for the power line. Enhances power supply smoothness and achieves powerful, accurate sound pickup

- XLR-3-12C type with gold-plated contacts is used for the output terminal. High reliability
・Low-cut filter
・Pad switch function

～Product specifications～
■Type: 2-way microphone (condenser type + electret condenser type)
■Directivity: unidirectional / omnidirectional / bidirectional (switchable)
■Frequency response: 20-50,000Hz
■Front sensitivity (0dB=1V/Pa)
Unidirectional: -31 dB
Omnidirectional: -37 dB
Bidirectional: -35 dB
(Declination ±3 dB, 0 dB=1 V/Pa, 1 kHz)
■Dynamic range
Unidirectional: 113 dB or more
Omnidirectional: 114 dB or more
Bidirectional: 114 dB or more
■Output impedance: 90Ω±15%, balanced type
■Inherent noise
Unidirectional: 19 dB SPL or less
Omnidirectional: 24 dB SPL or less
Bidirectional: 22 dB SPL or less
(0 dB=2×10-5 Pa)
(IEC *1 61672-1 A-Weighted, 1 kHz, 1 Pa)
■Maximum input sound pressure level
Unidirectional: 132 dB SPL or more
Omnidirectional: 138 dB SPL or more
Bidirectional: 136 dB SPL or more
(Equivalent input sound pressure value of the input level at which the microphone output signal produces 1% waveform distortion at 1 kHz, 0 dB=2×10-5 Pa)
■Output connector: XLR-3-12C type
■Cord: Sold separately
■Power supply: External supply system DC 44 V-52 V (IEC *1 61938 P48)

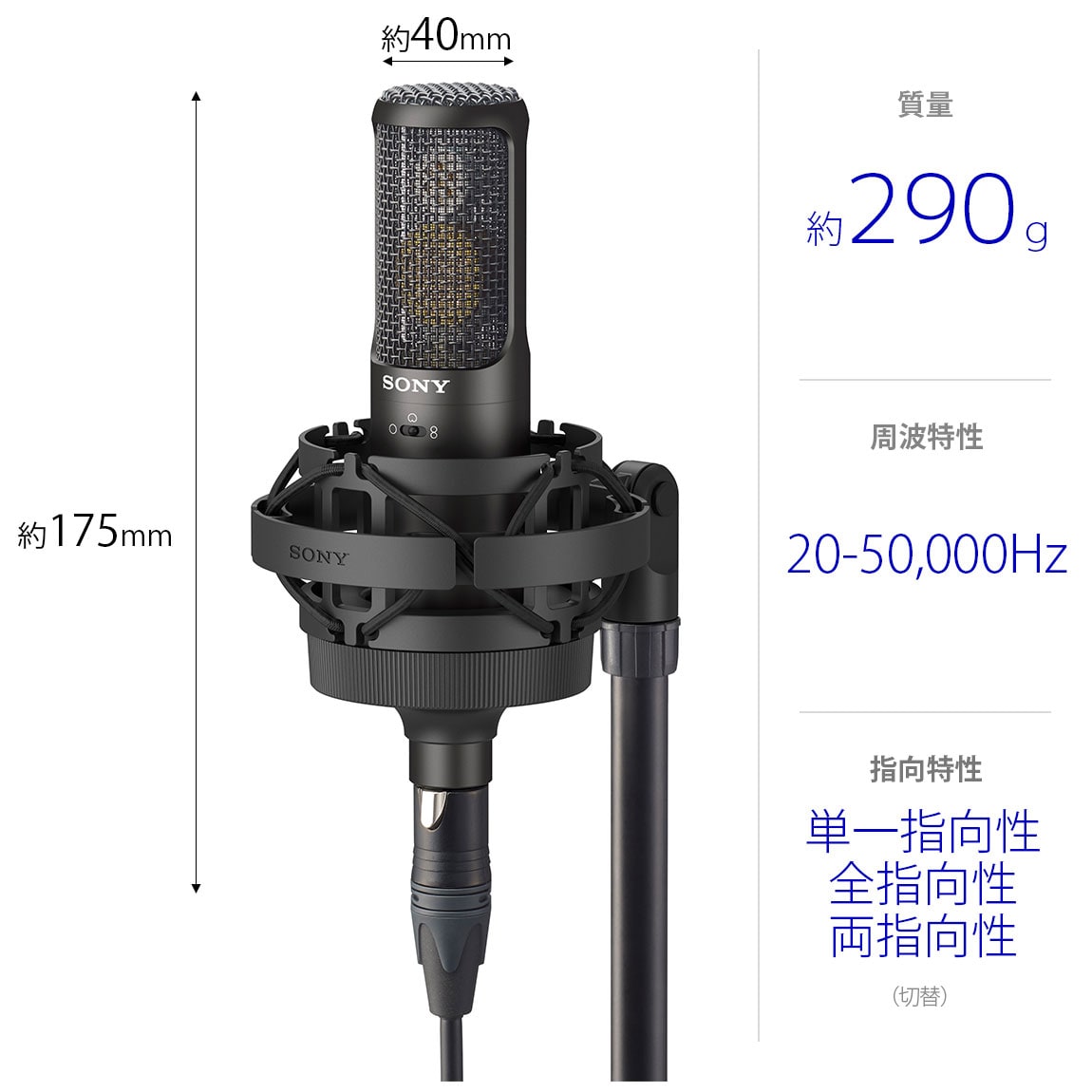

■Size: 40×175mm
■Grip system (diameter): 40mm
■Weight: Approximately 290g

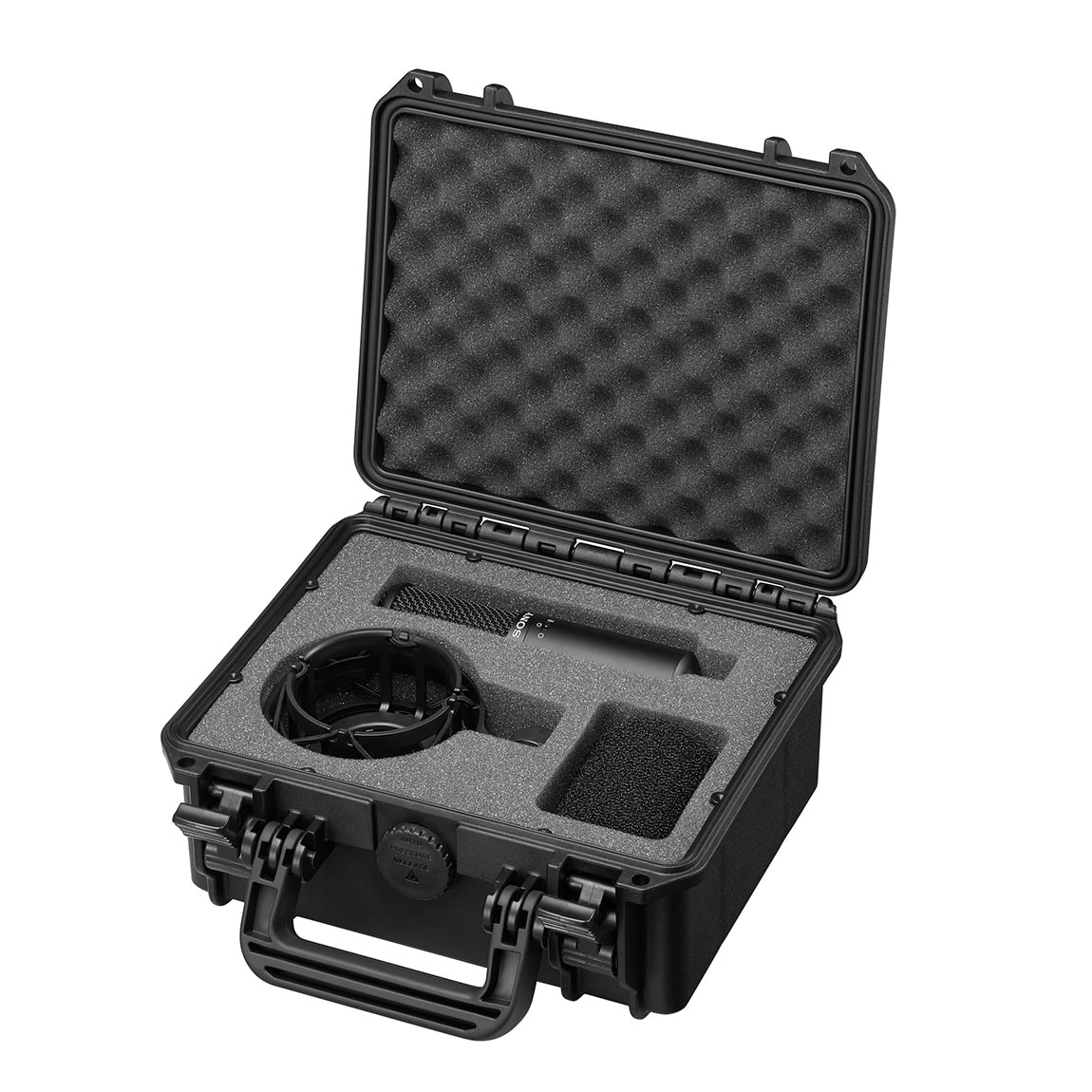

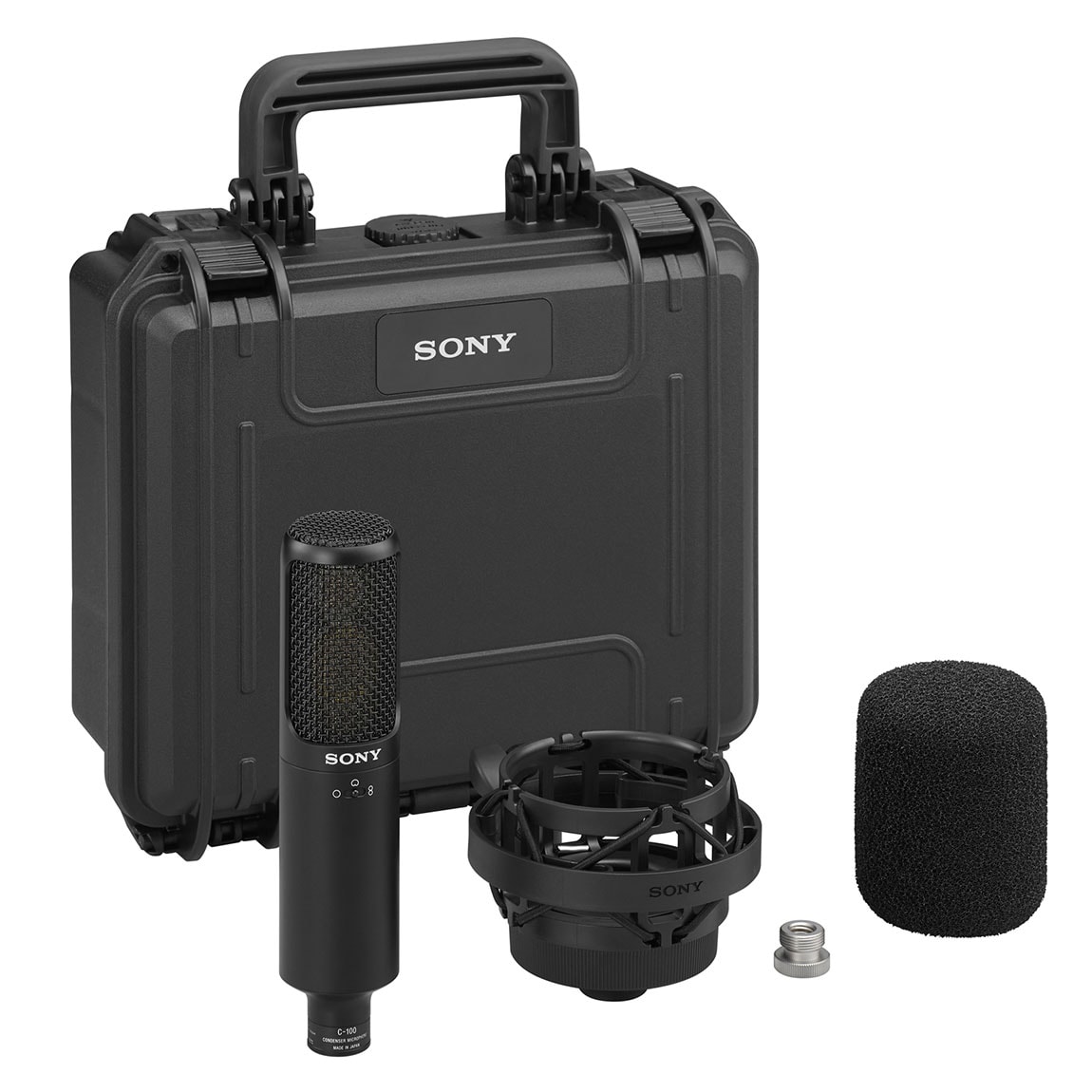

■Accessories: Cradle suspension x 1, windscreen x 1, stand adapter (W3/8 - NS5/8) x 1, carrying case x 1
