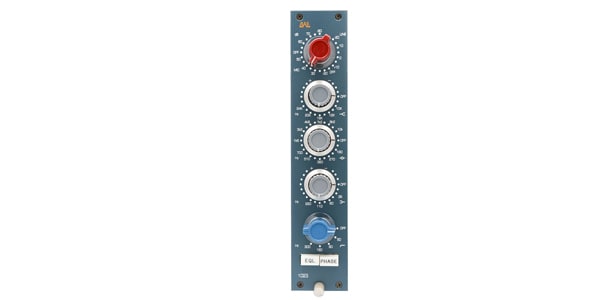

BAE / 1023 Module

Channel strip with Carnhill transformer. This model is designed to have a higher Mid / High frequency in the EQ section compared to the 1073.

■ Main features

・ Equipped with high-pass filter based on inductor
・ Compatible with low output ribbon microphones with 80dB GAIN
・ 3 band EQ section
・ Equipped with polarity reversal switch
-Carnhill St. Ives transformer, Elma switch, Canford wire design same as the original
・ Extended Mid / Hi
Mid: 160Hz, 270, 360, 510, 700, 1K6, 3K2, 4K8, 7K2, 8K2, 10K.
Hi: 10K, 12K, 16K, 20K, 24K.

■ Specs

Number of channels: 1
Frequency response: 10Hz-55kHz
3-band EQ, high-pass filter, 50Hz, 80Hz, 160Hz, 300Hz
HF: +/- 16dB shelf, 10kHz, 12kHz, 16kHz, 20kHz and 24kHz
MF: +/- 18dB +/- 12dB or +/- 18dB peaking, selectable center frequency 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz
LF: +/- 16dB shelf, 35Hz, 60Hz, 110Hz & 220Hz selectable frequency
Equipped with phantom power
Dimensions: 10 series module size
Weight: 2.72 kg
