BAE / 1023

This channel strip features a Carnhill transformer. Compared to the company's ""1073"" model, this version has higher Mid/High frequencies in its EQ section.

■Channel Strip

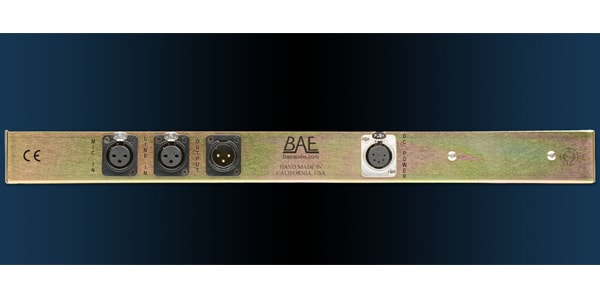

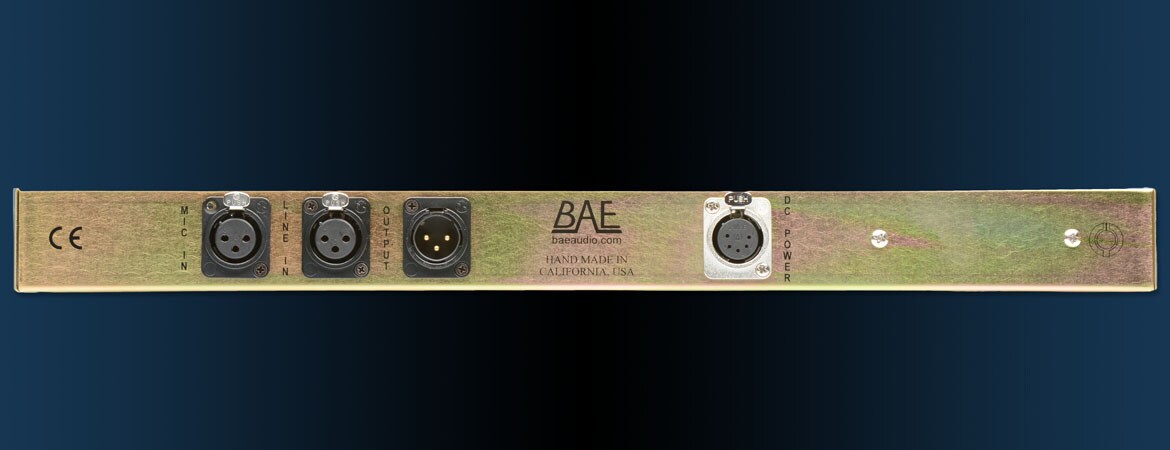

The 1023 is a fully hand-wired channel strip using Carnhill (St. Ives) transformers. It features the exact same mic/line preamps as the 1073, but with significantly higher frequencies in the Mid/High section. Not only does it offer more frequency settings, but the extended EQ section allows for direct manipulation of the mid-bell curve against overlapping highs/lows, enabling more musical sound shaping.


■Main Features

* Class A, 1U chassis transformer-coupled design

* Inductor-based high-pass filter

* 80dB gain for low-power ribbon microphones

* 3-band EQ section

* Switchable input impedance (1200-300Ω)

* Line-level input compatible

* High-impedance DI for guitars, basses, etc.

* Polarity inversion switch

* Original Carnhill St. Ives transformer, Elma switch, Canford wire design

* Extended Mid/Hi

Mid: 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1K6, 3K2, 4K8, 7K2, 8K2, 10K.

Hi: 10K, 12K, 16K, 20K, 24K.

■Specifications

Number of Channels: 1

Frequency Response: 10Hz-55kHz

3-band EQ, high-pass filter, 50Hz, 80Hz, 160Hz, 300Hz

HF: +/- 16dB shelf, 10kHz, 12kHz, 16kHz, 20kHz, and 24kHz

MF: +/- 18dB +/- 12dB or +/- 18dB peaking, selectable center frequencies 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz

LF: +/- 16dB shelf, selectable frequencies 35Hz, 60Hz, 110Hz & 220Hz

Phantom power included

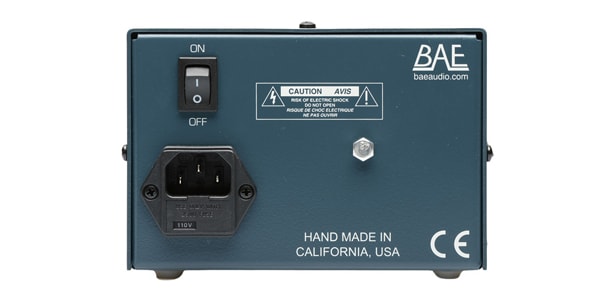

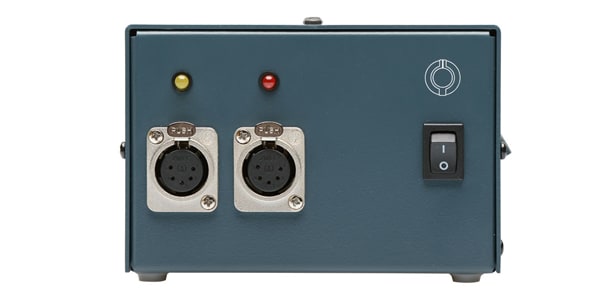

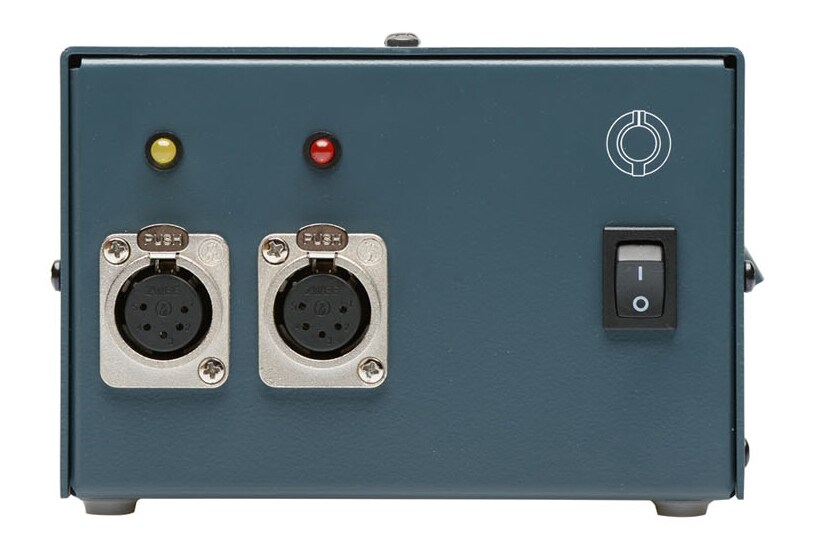

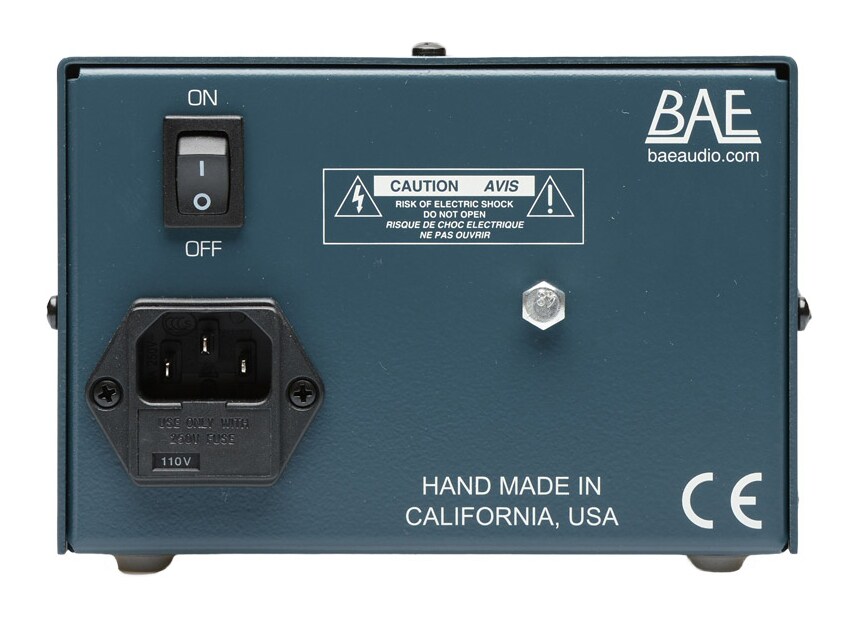

Power requirements: Dedicated external power supply included

Dimensions: 19W x 1.75L x 9D (1U rack size)

Weight: 4.54 kg
