SAMSON / ESWC99BGTJ

You can use 6 channels from 30 channels in the B band in the same area at the same time. It uses a sturdy metal chassis and comes with a rack mount kit. Equipped with an RF field search function and automatically selects available groups. The longest operating distance between the transmitter and the receiver is 91m, and it can be used in a large stage, gym and outdoor ground.

■ System overview
・ Maximum reach: 100m (* When on a straight line without obstructions)
・ Frequency characteristics: 50Hz-15kHz
・ T.H.D .: <1% (@AF 1 kHz, RF 46 dBu)
・ Dynamic range:> 103 dB A-weighted
・ SN ratio:> 90dB
・ Operating temperature:? 10 ℃ to + 60 ℃
・ Tone key frequency: 35.000kHz

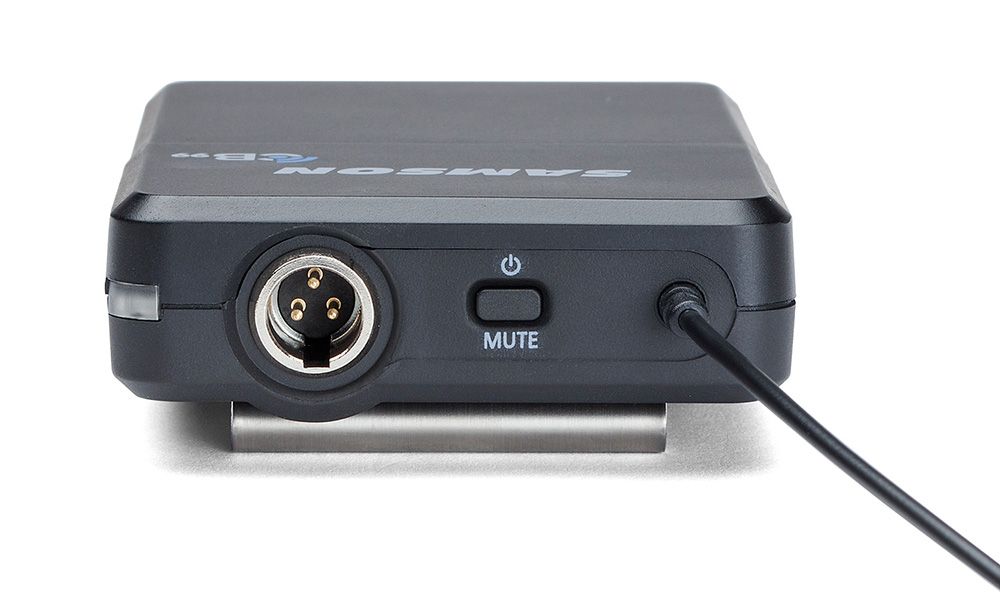

■ CB99 Belt Pack Transmitter

・ Input terminal: Mini-XLR (3-pin)
・ Input impedance: 1MΩ
・ Input gain range: 38dB
・ RF output: 10mW EIRP
・ Power supply: 2 AA alkaline batteries
・ Continuous use time: about 8 hours
・ Dimensions: 96 mm x 62 mm x 18.5 mm
・ Weight: 93 g (* excluding batteries)

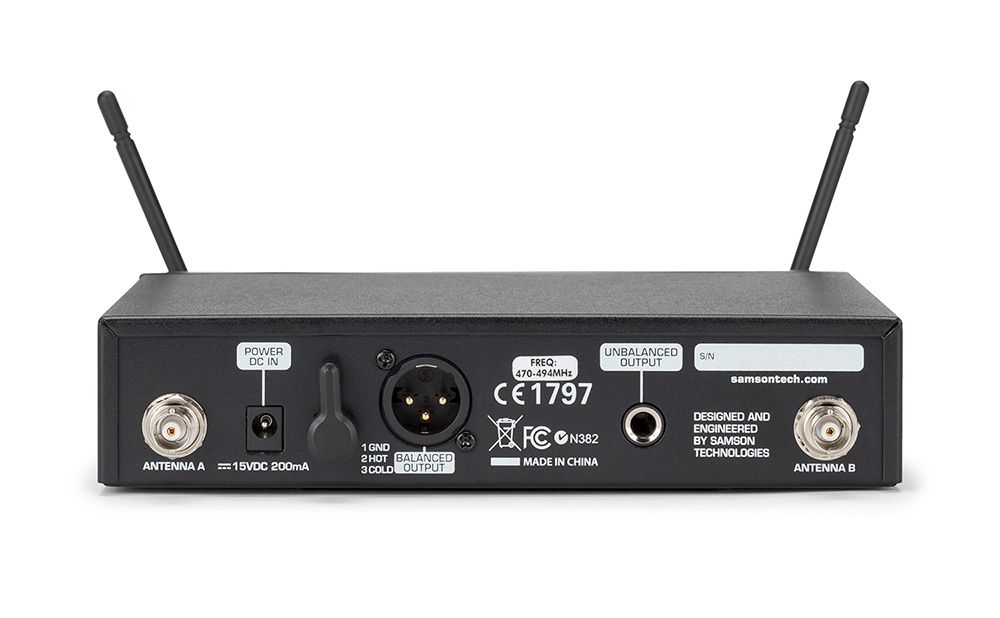

■ CR99 receiver
・ Audio output level: + 14dBu (Unbalanced), + 9dBu (Balanced)
・ Audio output impedance: 810Ω (Unbalanced), 240Ω (Balanced)
・ Sensitivity: -100dBm / 30dB sinad
・ Image rejection:> 50dB
・ Power supply: 15VDC 200mA (※ power adapter included)
・ Dimensions: 200 mm x 150 mm x 42 mm
・ Weight: 946 g
