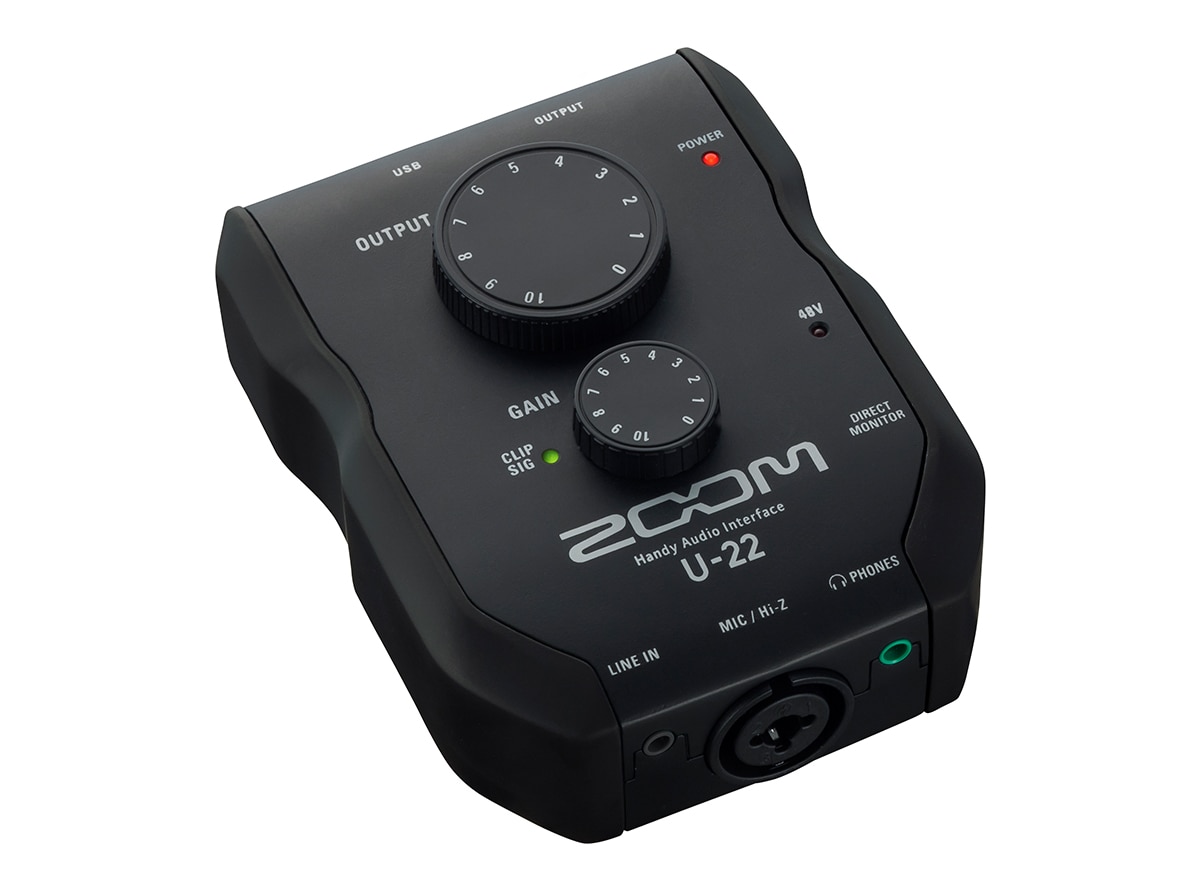

ZOOM / U-22 オーディオインターフェイス

2-in/2-out audio interface "U-22". Compact size, perfect for combination with laptop or iPhone/iPad.

■ Audio interface

The "U-22" is a 2-in/2-out audio interface that carefully selects the functions required for mobile recording and live performances. Ultra compact size, perfect for combination with laptops and iOS devices.

Equipped with a high-quality microphone preamplifier with low noise design, you can record vocals and musical instruments with pure sound quality at a resolution of up to 24-bit/96kHz. You can easily carry the same high-quality sound as the high-end model U-44/U-24, anywhere.

■ Main features

・Stereo USB audio interface for PC/Mac/iOS devices
・Equipped with high-performance microphone preamplifier cultivated in the ZOOM H series

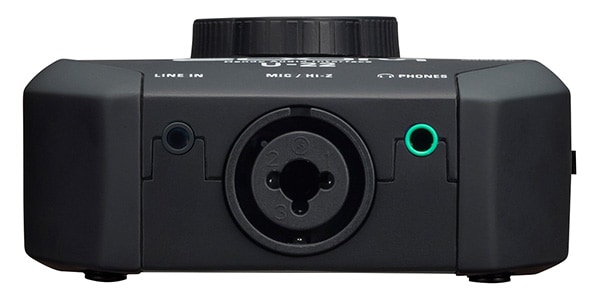

・Equipped with XLR/TS combo input that can connect both microphone and line
・Supports resolutions up to 24 bits/96 kHz, enabling high-quality recording and playback
・Can be connected to iPhone/iPad (Battery or AC adapter power supply and commercially available Lightning-USB connector are required)
・Operates for about 5 hours with two AA alkaline batteries
・Ableton Live 9 Lite download license included
・Hi-Z support for direct connection of guitar and bass

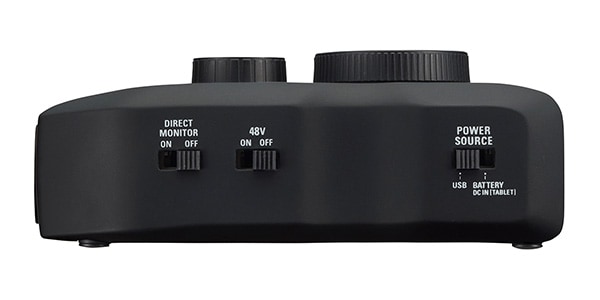

・Supports direct monitoring of zero latency

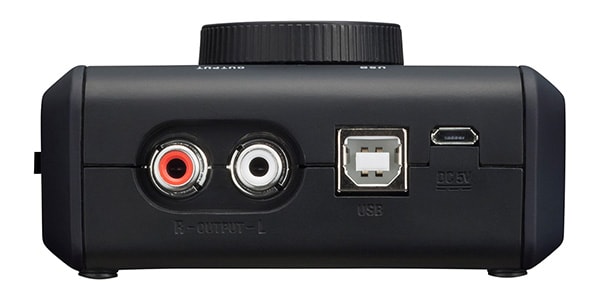

・Equipped with RCA output (L/R) and headphone jack
・Equipped with gain knob for microphone/Hi-Z input (combo jack)
・Built-in +48V phantom power supply

■ Specifications

Input: XLR/TS combo jack (XLR: 2nd hot TS: TIP hot), stereo mini jack
Output: RCA pin (coaxial), PHONE
Power supply: USB bus power (Type B), ZOOM AD-17 (Micro-B), DC5V power supply (Micro-B), 2 AA batteries (continuous drive time: about 5 hours (phantom OFF))
External dimensions: 119.2 mm (D) x 91.8 mm (W) x 44.6 mm (H)

■ Operating environment

・Windows
OS: WindowsR 7 SP1 or later / 8.1 / 10 (32bit, 64bit)
CPU: IntelR Core i3 or above*
USB: USB 3.0 / 2.0**
*Atom, Celeron, Pentinum series and AMD CPU are not guaranteed
**Only compatible with USB host controller with built-in Intel chipset, operation is not guaranteed for use with USB hub/expansion card

・Mac
OS: MacR OS X 10.9.5 or later / 10.10 / 10.11
CPU: IntelR Core i3 or above
USB: USB 3.0 / 2.0*
*Operation is not guaranteed when used with a USB hub or expansion card

・IPhone / iPad
OS: iOS 7.1 or later
*Requires 2 AA batteries or AC adapter (AD-17 sold separately), Apple iPad camera connection kit or Lightning-USB camera adapter

■ Bundled items

・Instruction manual
・USB cable
・Ableton Live 9 Lite (download license)
