YAMAHA / MONTAGE6 Keyboard synthesizer

The flagship synthesizer that incorporates a new sound source system, the "Motion Control Synthesis Engine", and realizes smooth, dynamic performance expression.

■ Keyboard: 61 keys FSX keyboard (with initial touch / after touch)
■ Sound source method: Motion Control Synthesis Engine AMW2: 8 elements FM-X: 8 operators, 88 algorithms
■ Maximum polyphony: AWM2: 128 sounds (both stereo and mono waveforms), FM-X: 128 sounds
■ Waveform memory: Presets: 5.67GB equivalent (16-bit linear conversion), user: 1.75GB
■ Effects: Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types x 2, Master effect x 15 types x 2 71 types of A / D part insertion ＜Preset programs for each effect type＞ Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

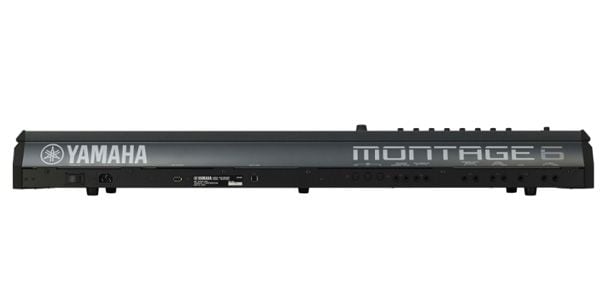

■ Connection terminals: [USB TO DEVICE], [USB TO HOST], MIDI [IN] / [OUT] / [THRU],
FOOT CONTROLLER [1] / [2], FOOT SWITCH [ASSIGNABLE] / [SUSTAIN],
OUTPUT (BALANCED) [L / MONO] / [R] (TRS balanced output terminal),
ASSIGNABLE OUTPUT (BALANCED) [L] / [R] (TRS balanced output terminal),
[PHONES] (stereo standard phone jack),
A / D INPUT [L / MONO] / [R] (Standard phone jack)
■ Power consumption: 20W
■ Dimensions and weight: 1,037 (W) × 396 (D) × 131 (H) mm, 15kg
■ Accessories: Power cord, 2P-3P converter, instruction manual, warranty card, CUBASE AI DOWNLOAD INFORMATION (about CUBASE AI download)
