TASCAM / SD-20M

The TASCAM SD-20M is a 1U rack-mountable SD card recorder with built-in microphone input. Its 4-track and dual recording capabilities enable reliable recording with simple operation. With a microphone input on the front panel and a line input on the rear panel, it's versatile enough for a wide range of applications.

■SD Card Recorder
■1U Rack Mount

~From the Manufacturer's Website~
■Front-panel XLR/TRS combo input (with locking mechanism)
■4-track recorder capable of simultaneous recording of two stereo audio channels: microphone input and line input
>For recording minutes, etc., you can record the line output from a conference system while simultaneously recording two separate microphone inputs as a backup audio source.

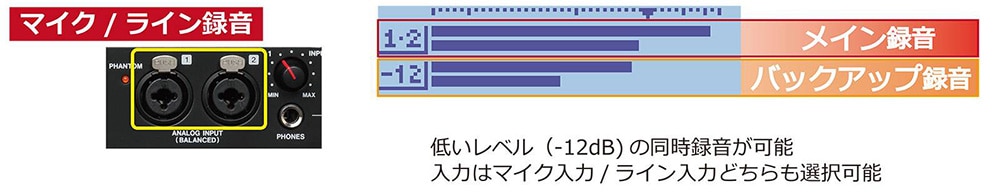

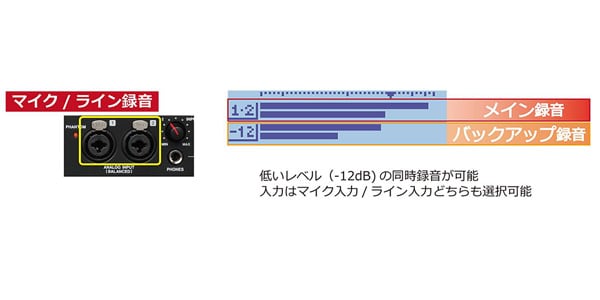

■Dual Recording Function
>Can simultaneously record at a lower level than the set recording level. This allows for backup recording to protect against distortion caused by sudden loud sounds.

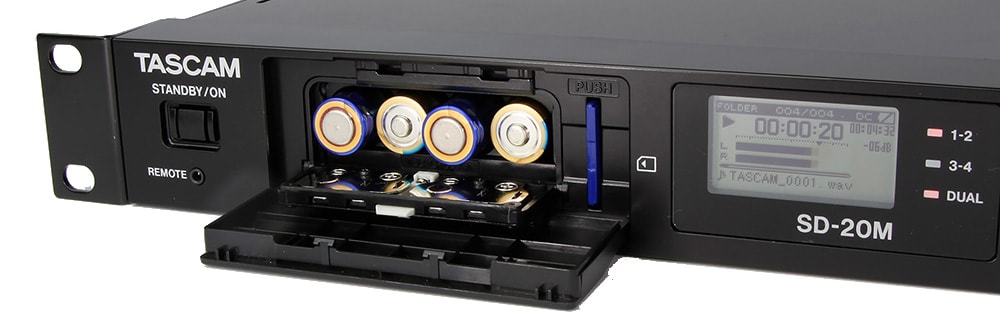

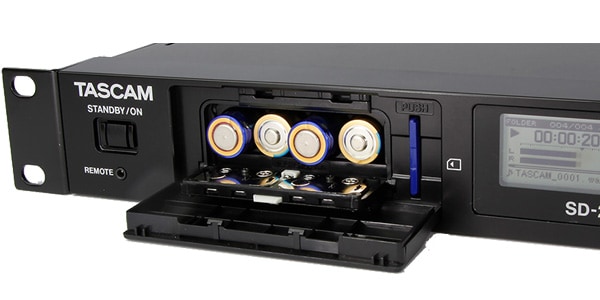

■Can be powered by an AC adapter or four AA batteries, providing power backup in the event of an AC power outage.

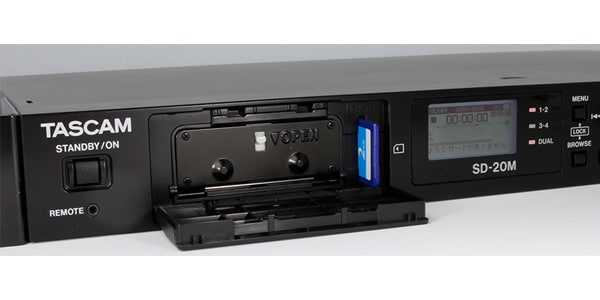

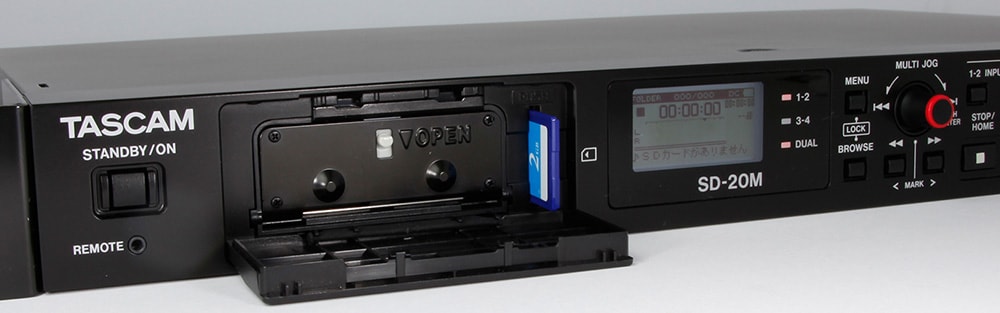

■Uses versatile SD/SDHC/SDXC cards as recording media.
■SDXC cards support up to 128GB, allowing for longer recording times.
■Supports high-resolution recording at 24-bit/96kHz in WAV/BWF format.
■Supports recording in MP3 format, allowing for longer recording times.

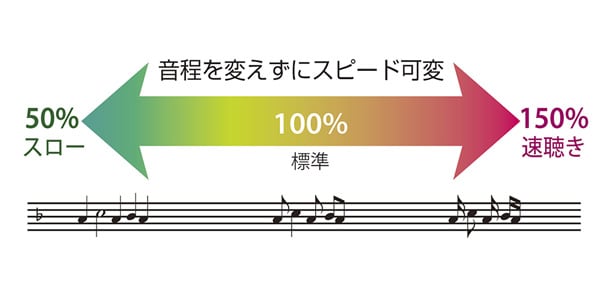

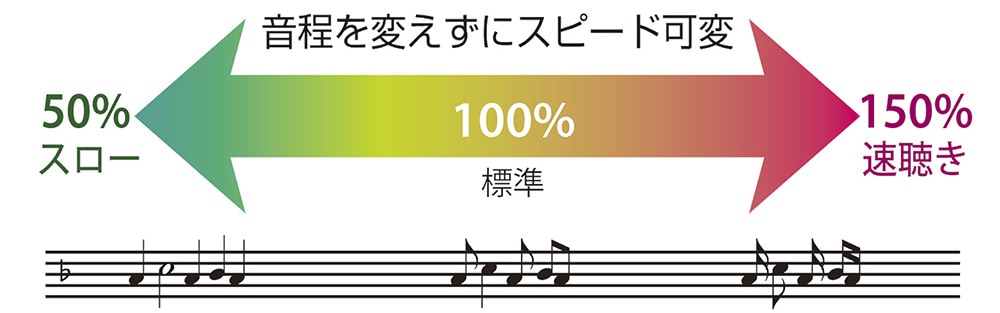

■Variable playback speed (0.5x to 1.5x) is convenient for transcribing meeting minutes. Equipped with a Speed function (0.1x increments)

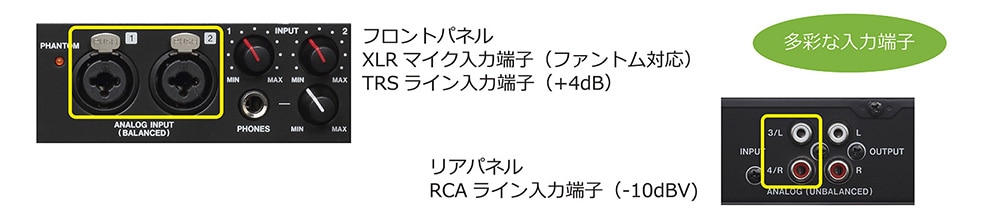

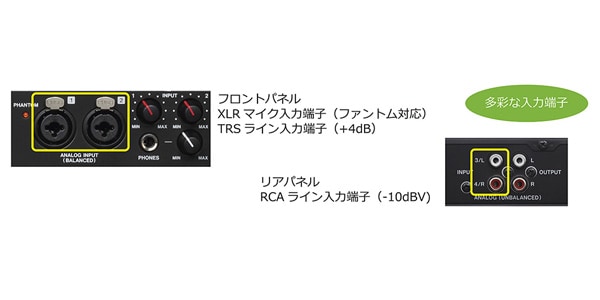

■ +4dBu line-level input for balanced input from mixers, etc.
■ Supports microphones requiring phantom power (+48V)
■ RCA inputs for unbalanced input from audio devices, supporting -10dBV line level
■ Auto-record function detects the audio input level and automatically starts recording
■ 3-stage low-cut filter (40/80/120Hz) for cutting out unwanted low frequencies such as air conditioning noise
■ Japanese display supported

[Product Specifications]
■ Power Supply: Dedicated AC adapter (TASCAM PS-P1220E),
Four AA batteries (alkaline, nickel-metal hydride, or lithium)
■Power consumption: 5W (maximum)
■Current consumption: 1A (maximum)
■Dimensions: 483(W) x 45(H) x 299.6(D) mm
■Weight: 2.8kg (including batteries), 2.7kg (excluding batteries)
■Operating temperature: 5 to 35°C
■Accessories: AC adapter (TASCAM PS-P1220E), rack mount screw kit, instruction manual (with warranty)
