WESAUDIO / _ MIMAS

An 1176-style 500-module compressor that can be digitally controlled from an AAX/VST2/VST3/AU format plug-in.

■ Compressor - API500 Series

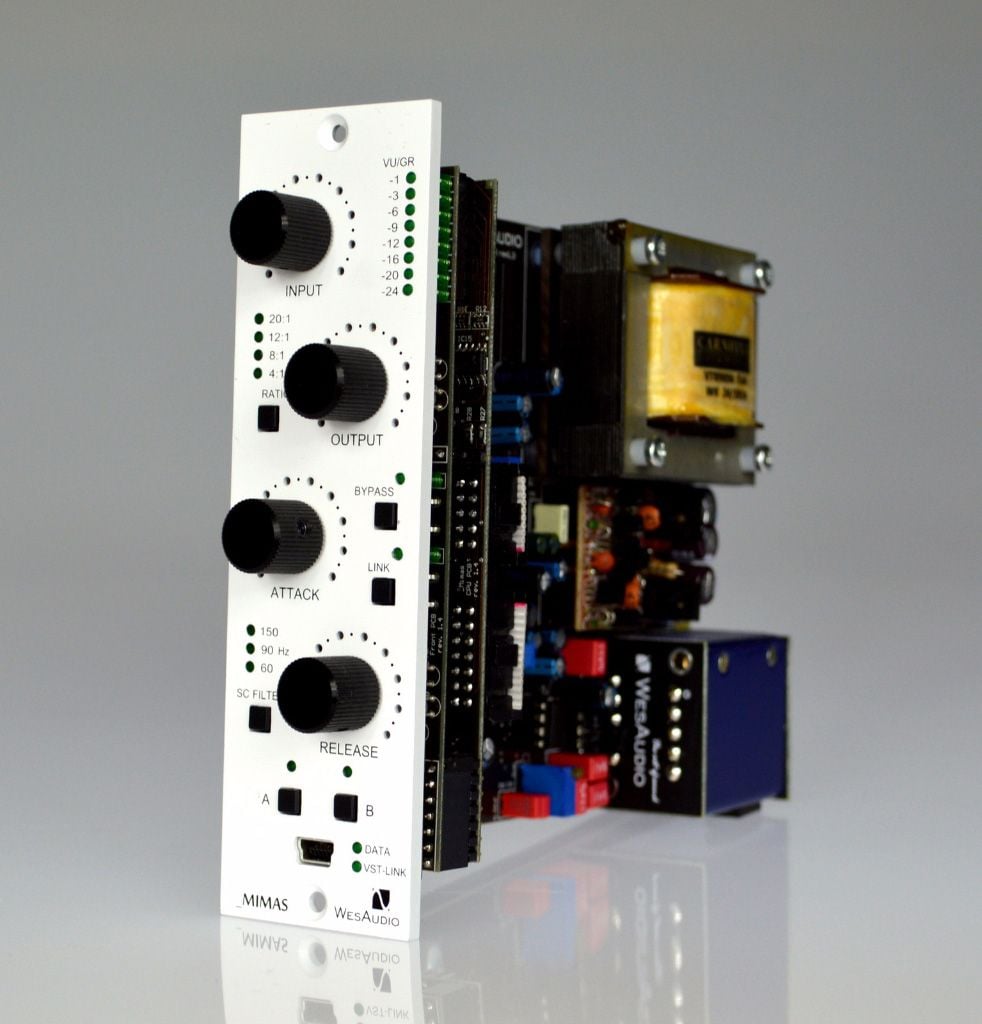

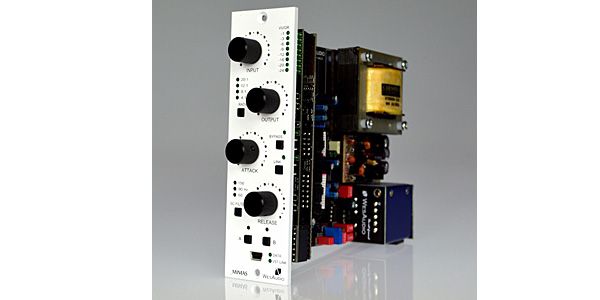

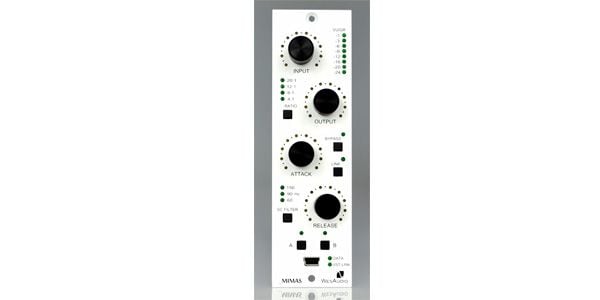

WesAudio Mimas is an analog-circuit compressor (API500-compatible module) that can be digitally controlled from an AAX/VST2/VST3/AU plug-in.
While retaining the analog sound of the company's acclaimed 1176-style compressor, all parameters can be remotely controlled from the plug-in on a USB-connected DAW system.

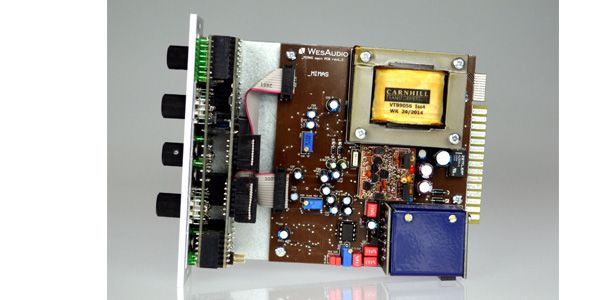

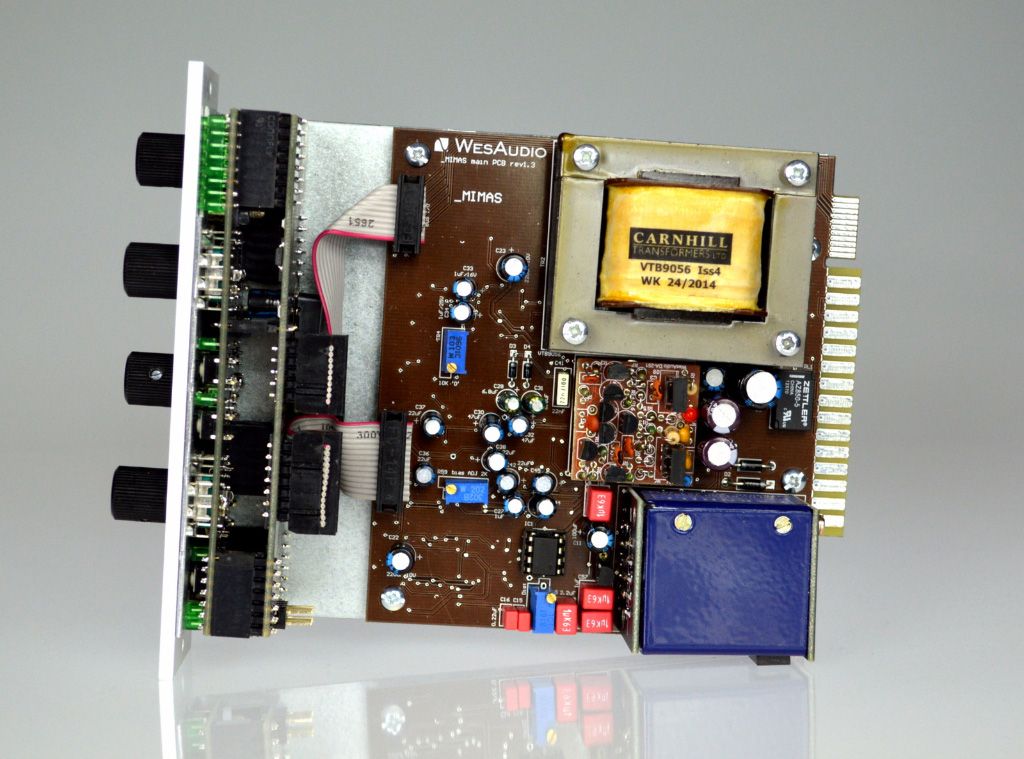

◎The analog circuit features a fully balanced input/output configuration using Carnhill transformers. Sidechain high-pass filters and ratio settings allow for the reproduction of four-button ""all button mode."" The A/B function allows instant switching between two settings.

◎The sound quality remains the same, while the plug-in's store and recall functions and physical automation can be written using the hardware knobs provide a fresh, authentic analog sound. Expanding the possibilities for new sound creation.

■ Main Features

・WesAudio-quality 1176 analog sound
・GCon - Adopts cutting-edge high-speed USB/Ethernet protocol
・Full digital control of analog circuitry
・High-quality balanced input/output circuitry using Carnhill transformers
・USB connection to computer
(For plug-in control. Can be used standalone without connection)
・AAX/VST2/VST3/AU (MAC/PC) control plug-in
・MONO and STEREO plug-ins (fully linked control of two units)
・A/B setting comparison function that can be used even when using the hardware alone
・Can operate _Mimas via sidechain by keying a track in your DAW
DAW sidechain function can be used (via USB cable)
・4 touch-sensitive encoders (allows knob movements to be automated in real time (from the hardware) in your DAW)
・True bypass
・VU (in/out) or GR Meter display switch
+24dBu headroom

■System Requirements

For plug-in compatibility with the latest Mac/Windows OS, Pro Tools, Cubase, Nuendo, Reaper, Studio One, Ableton, Logic Pro, and other software, please see here: http://wesaudio.com/download/

*This plug-in can be used with standard API 500 series compatible power supply racks. However, please consult us in advance if you plan to use it with the following API-compatible racks (it will not work as is and requires special arrangements).

Rupert Neve Designs 500 series Rack
Aphex 500 series Rack
