EMINENCE / KAPPA PRO-18LF-8

Variations

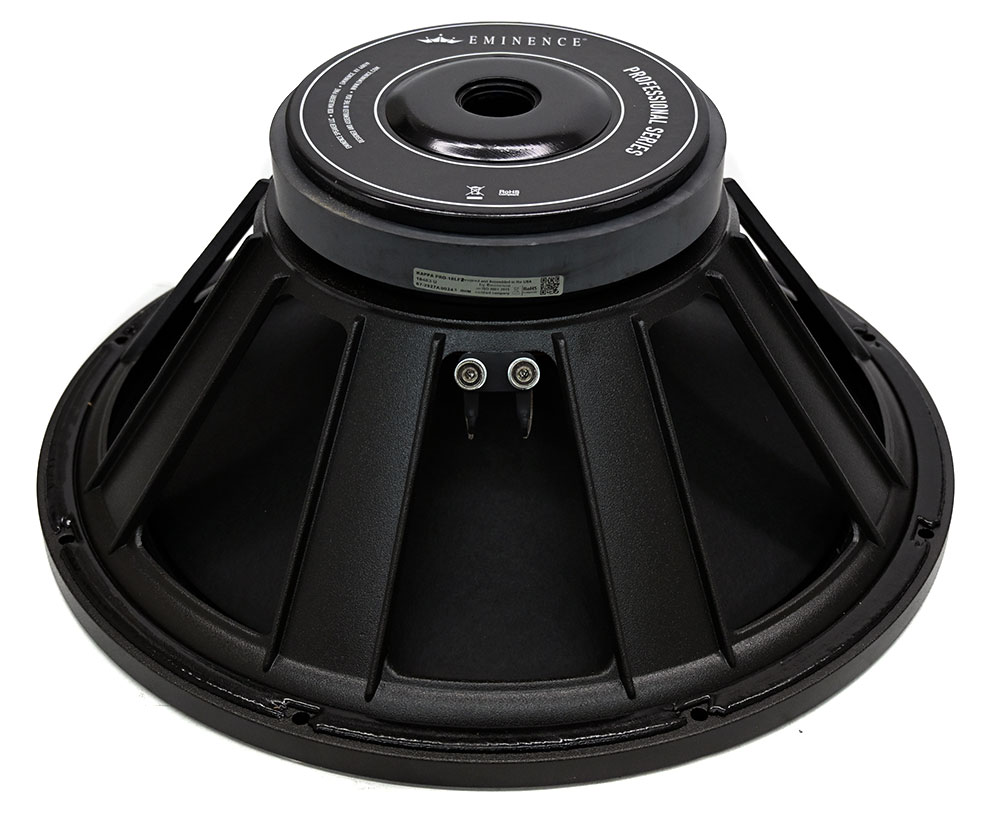

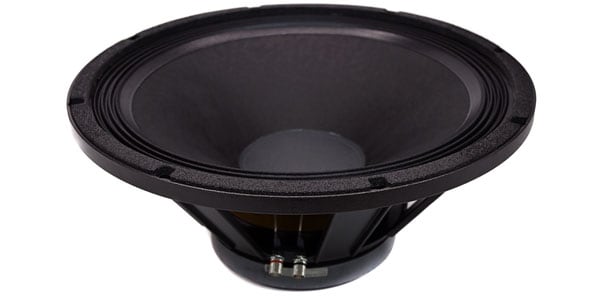

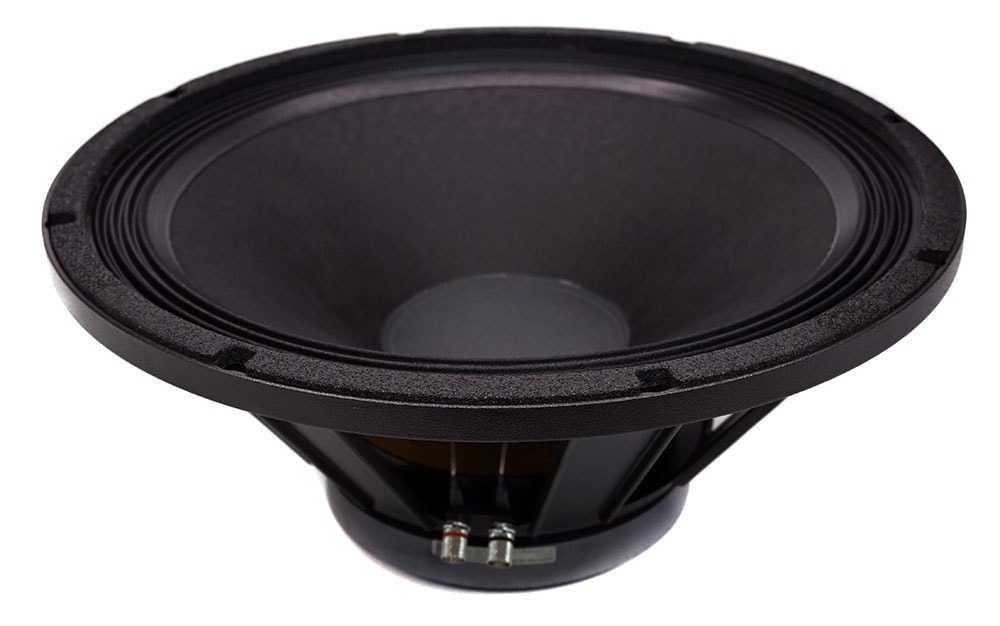

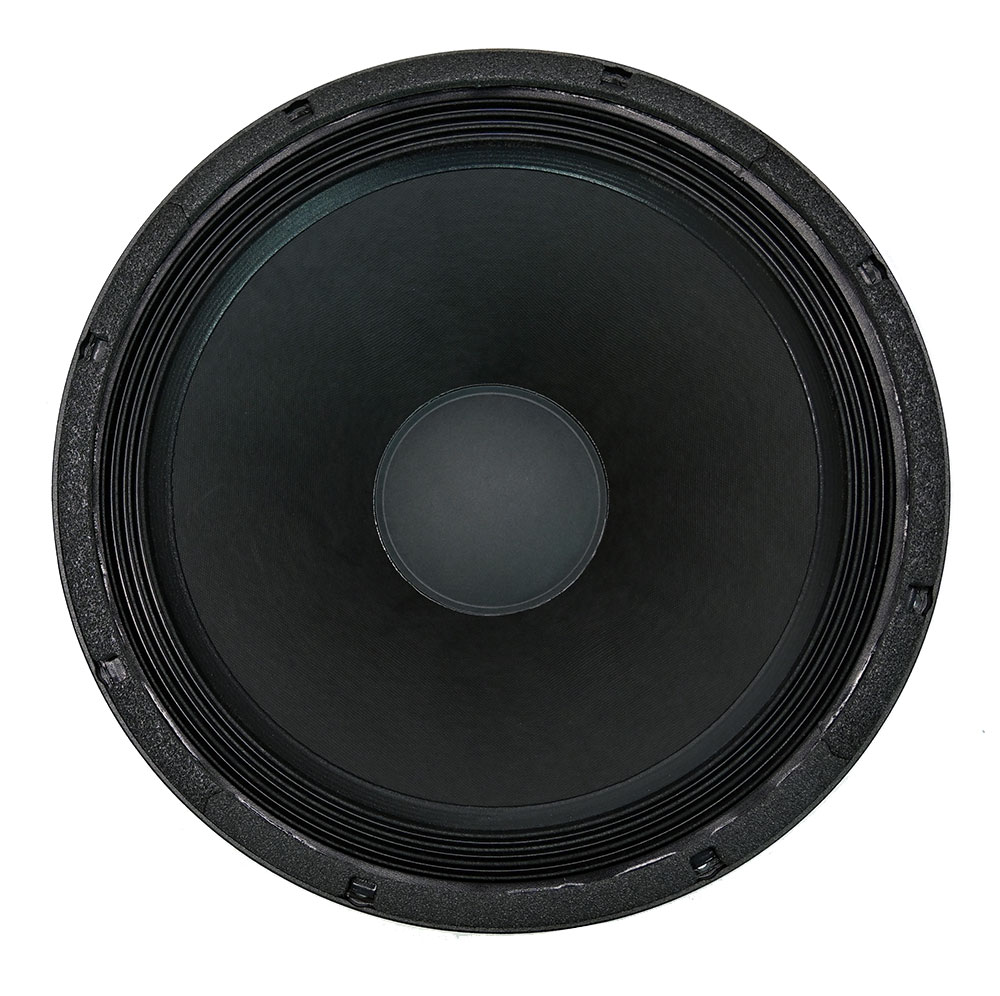

This 18-inch woofer unit features a lightweight, durable aluminum die-cast chassis and produces powerful, deep bass. It's ideal for small to medium-sized box subwoofers and bass amplifiers. With a 1600W input capacity, this model is a solid choice if you're looking for a replacement woofer unit for a single or double subwoofer.

■Diameter: 18""
■Impedance: 8Ω
■Power Handling: 1600 W (PGM)
■Frequency Range: 38 Hz - 0.7 kHz
■Sensitivity (1W/1m): 98 dB
■Magnet: Ferrite
■Dimensions: 457.2 mm x 457.2 mm x 207 mm
■Weight: 11.11 kg
■Other:
■Magnet Weight: 3.40 kg
■Voice Coil: 3""
■Voice Coil: Copper voice coil
■Coil Former: Kapton former

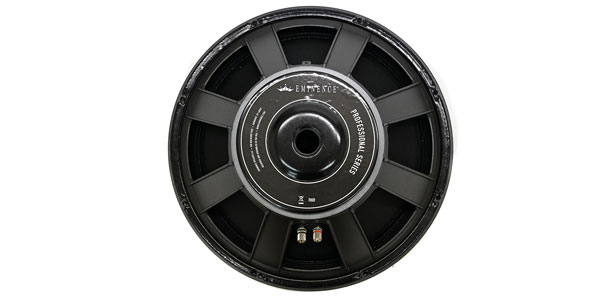

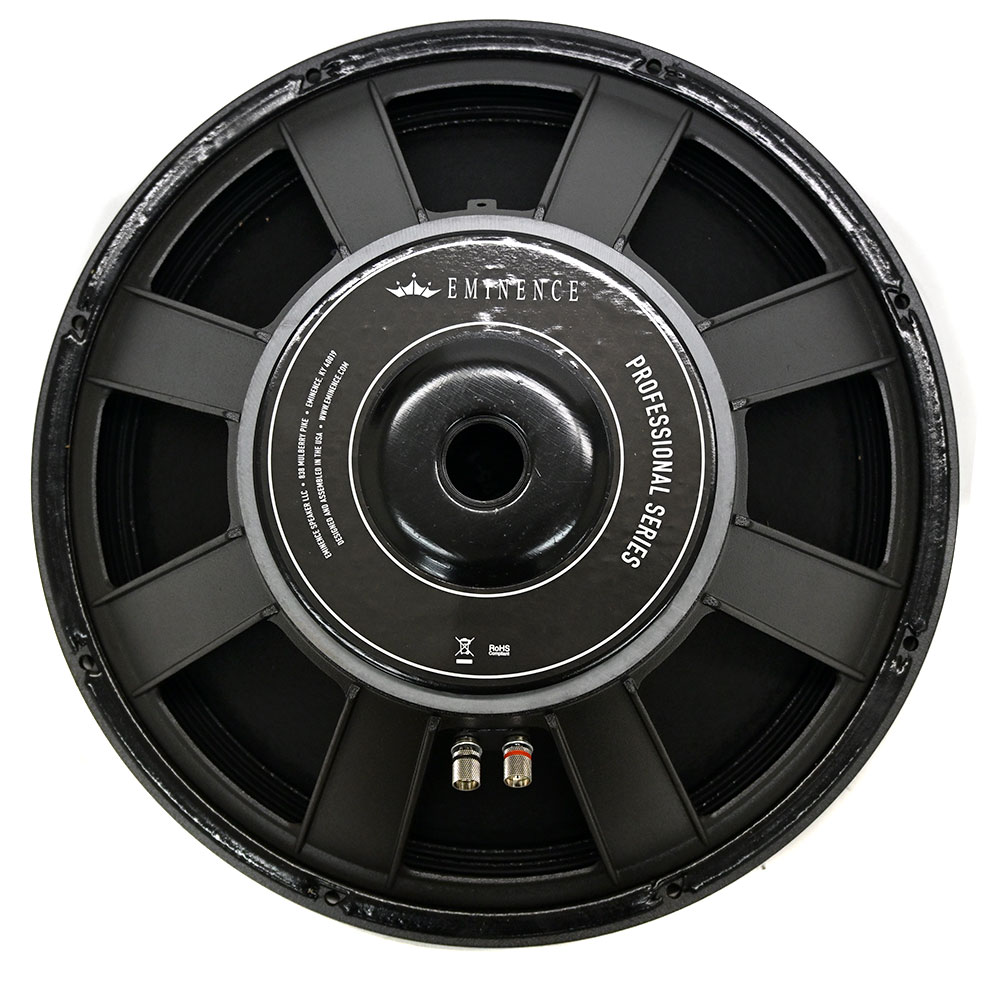

■Basket: Die-cast aluminum basket

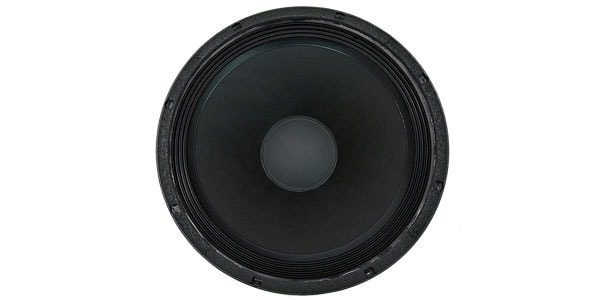

■Cone: Treated paper cone
■Edge: Cloth cone edge
■Dust Cap: Treated paper dust cap
■Baffle Diameter: 421.1 mm
■Threaded Hole Size: 7.1 mm
■Diameter Between Screw Holes: 438.2 mm Mounting Holes B.C.D.

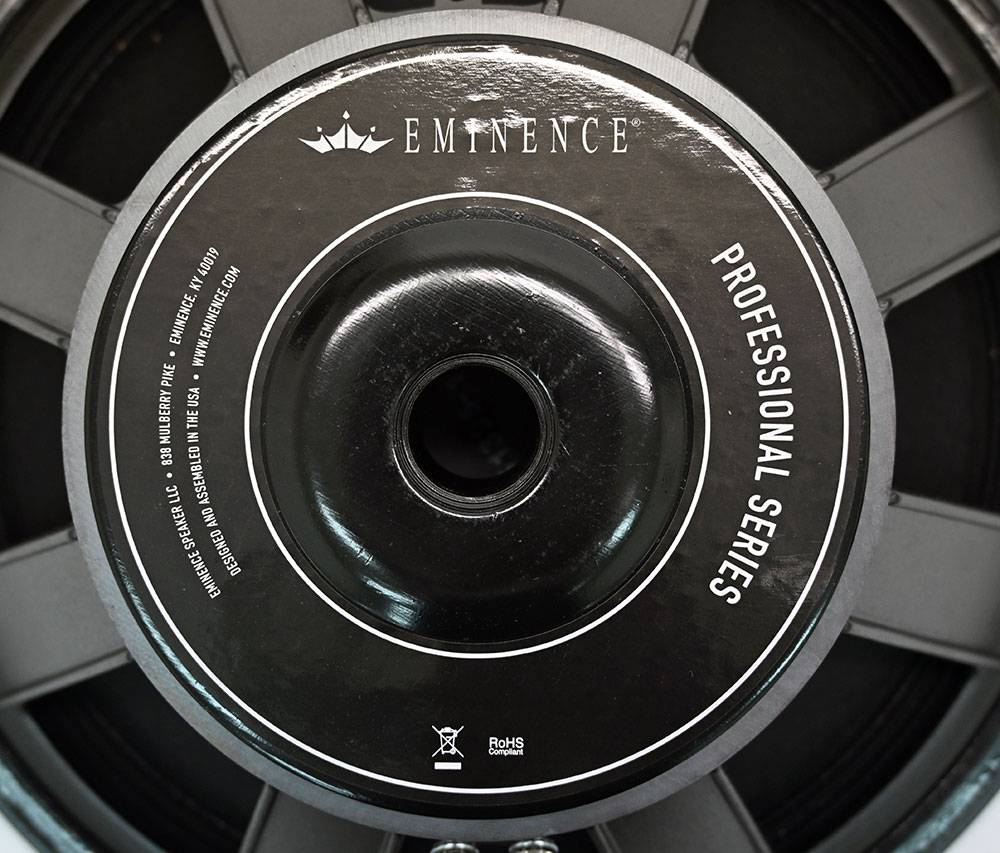

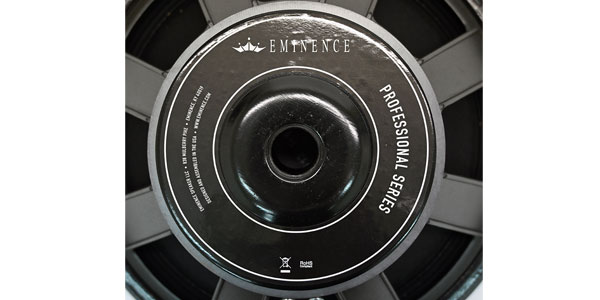

■Professional Series
The Professional Series features lightweight, durable construction thanks to its cast-aluminum chassis. This series features 26 unique models, covering a wide range of applications, from heavy, clear, and high-power woofers to lightweight neodymium transducers for line arrays.

■EMINENCE
Founded in 1966 in Kentucky, USA, the company still maintains its own factory there, producing high-quality guitar and PA speaker units that impress even the most demanding professionals. Popular models include the smash-hit ""Tonker"" and ""Legend,"" as well as the signature model ""EJ1250"" named after tone-conscious guitarist Eric Johnson.

*Usually, woofer units can be replaced with models of similar size, impedance, and power handling. However, when actually paired with a speaker, there may be slight mismatches in the screw holes or baffle size, requiring additional modification. Please note that we do not check or guarantee the installation of woofer units.

*When providing repairs or support, we generally do not provide replacement units. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
