DOD / 00100002

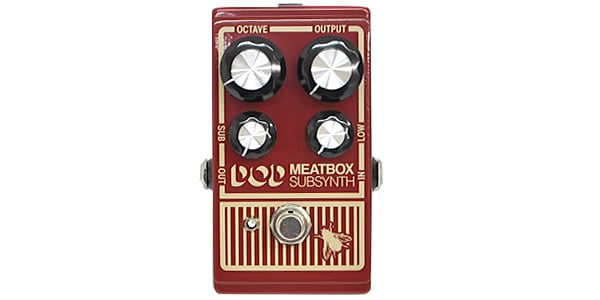

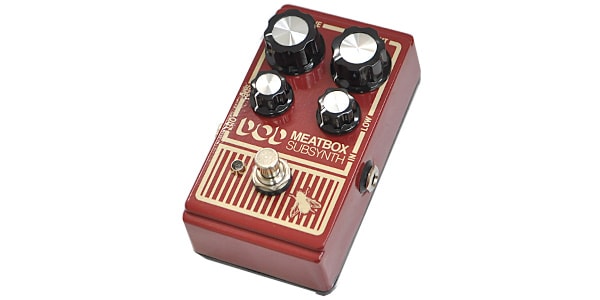

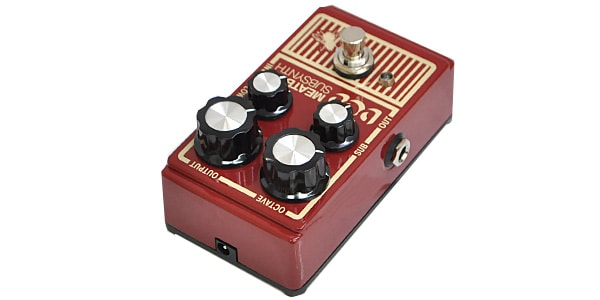

The DOD Meatbox is a legendary subharmonic synthesizer that adds an unprecedented ultra-low bass to the base. The thick, crawling low end shakes the foundation of the sound and creates an overwhelming presence. It is a one-of-a-kind pedal that gives a strong individuality to not only reggae and dub but also heavy rock.

■Bass Effects Pedal
■Sub Synth
■Specifications

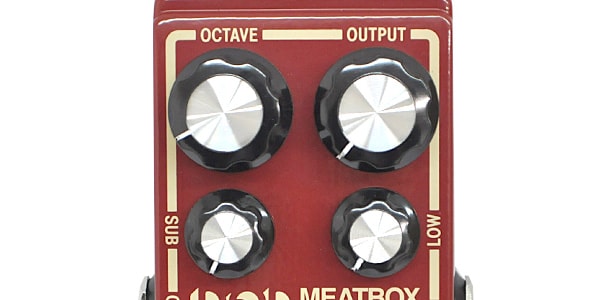

Controls: Octave, Output, Sub, Low, Footswitch
Jacks: Input, Output, DC
Input Impedance: 500k Ohms (Effect On)
Output Impedance: 100 Ohms (Effect On)
Input Impedance: True Bypass (Effect Off)
Output Impedance: True Bypass (Effect Off)
Power Supply: 9 V Alkaline Battery or PS0913 DC Adapter (Sold Separately)
Current Draw: 20 mA (9 V Standard)
Dimensions: 117 (L) x 73 (W) x 53 (H) mm (excluding rubber feet)
Weight: 281 g (excluding 9 V battery)
