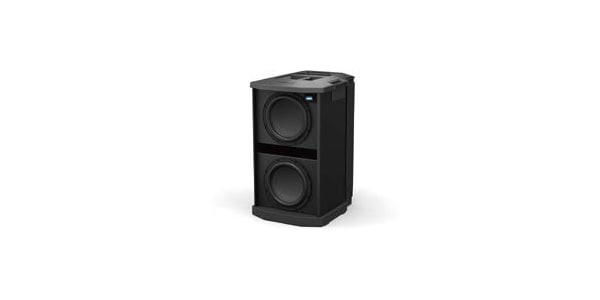

BOSE / F1 Subwoofer

A powered subwoofer equipped with a 1000W amplifier for the F1 Model 812.

[System performance]
■ Type: Powered woofer
■ Frequency characteristics (-3dB): 40 Hz --250 Hz
■ Frequency range (-10dB): 38 Hz --250 Hz
■ Directivity: Omnidirectional
■ Maximum sound pressure level (@ 1m): 130 dB SPL (peak, 6 dB CF)
■ Crossover frequency: 40-100 Hz (Butterworth24), line output: 100 Hz HPF (Butterworth 24)

[Power amplifier section]
■ Rated output: 1000 W
■ Total harmonic distortion: 0.1% or less (30 Hz -15 kHz, rated output)

[Speaker section]
■ Driver configuration: 2 x 10 inch driver

[Input / output terminal]
■ Input terminal: XLR / standard phone combo terminal (balance) x 2
■ Terminal: XLR (balance) x 2
■ Control: Volume, front LED function switching, power switch, polarity switching, line output EQ switching

[Other]
■ Dimensions: 688H x 410.2W x 448.5D mm
■ Weight: 24.9kg
■ Power supply voltage: 100 --240 V 50/60 Hz ± 20%, 200 W or less
