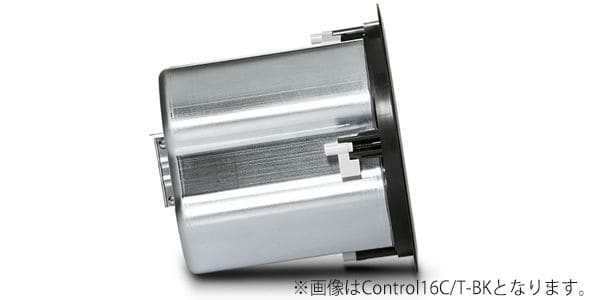

JBL / Control 16C/T

The Control 16C/T is a ceiling-mounted speaker that delivers uniform sound over a wide area. It features a coaxial speaker unit with a high-frequency driver positioned at the center of a low-frequency driver. The 6.5-inch low-frequency driver delivers powerful sound. With a maximum sound pressure level of 116 dB SPL, it's ideal for use in high-ceiling spaces or in loud environments. Available in white.

■ Ceiling-Mounted Speaker
■ Coaxial 2-Way Full-Range
■ 100W, 8Ω
■ 70/100V
■ 3.4kg
■ Pair
■ White

■ Frequency Range (-10dB): 62Hz - 20kHz
■ Coverage Angle (1-16kHz average): 110°
■ Maximum Sound Pressure Level (1m): 116dB SPL (peak)
■ Sensitivity (1-16kHz average): 91dB SPL
■Nominal Impedance: 8Ω
■Power Handling Capacity (Program/Pink): 100W/50W
■Transformer Tap
　100V: 30W, 15W, 7.5W
　70V: 30W, 15W, 7.5W, 3.8W
■Driver Configuration
　LF: 6.5 inches (165mm)
　HF: 0.75 inches (19mm)
■Terminals (Input/Loop-Through): Euroblock
■Color: White or Black (-BK)
■Dimensions (φ×H): 253×241mm
■Opening Dimensions: 226mm
■Applicable Panel Thickness: 13-32mm
■Weight: 3.4kg
■Accessories: C-type Support Brackets x 2, Support Rails x 4, Bracket Fixing Screws x 4,
Opening Template x 2, Painting Shield x 2, Japanese Instruction Manual

■JBL These in-ceiling speakers deliver the superior sound you expect from JBL PROFESSIONAL speakers with consistent sound quality across a wide area.
■The Control 10 Series features an optimal combination of various technologies to deliver the superior sound you expect from JBL PROFESSIONAL speakers. They deliver clear announcements and cozy background music with consistent sound quality across a wide area. They create comfortable acoustic spaces in small- to medium-sized facilities such as stores, hotels, conference rooms, and educational facilities.
■An optimal combination of multiple technologies delivers superior sound.
- Equipped with a coaxial speaker unit that places a high-frequency driver at the center of a low-frequency driver.
- The low-frequency driver uses a lightweight, heat-resistant aluminum bobbin and a voice coil with excellent heat resistance. Changes in sound quality are minimal, even under continuous high sound pressure.
- The high-frequency driver uses a center dome made of a material with excellent damping characteristics, delivering clear, warm sound. In addition, the lightweight, heat-resistant Kapton® bobbin and magnetic fluid cooling mechanism improve frequency response and reliability. The waveguides are also uncompromising, delivering consistent sound throughout the entire coverage area.
■Perfect for a variety of situations, regardless of venue.
・The Control12C/T and Control14C/T have a wide coverage angle, allowing a single speaker to cover a wide area. Fewer speakers are required, making them ideal for venues with strict budget constraints. The Control16C/T and Control18C/T achieve high maximum sound pressure levels, making them ideal for high-ceiling and noisy spaces.
・In addition to low-impedance connections, the built-in transformer allows for high-impedance connections as well. A single power amplifier can efficiently drive multiple speakers, minimizing sound quality degradation over long-distance transmissions.
・The speaker surface is made of flame-retardant and UV-resistant material, while the cone is made of polypropylene and the edge around the cone is made of butyl rubber, ensuring high durability even in humid environments.
・Available in white and black (-BK), the body edge and grille can be painted to match the interior décor of the installation location. A shield to protect the driver during painting is also included.
■Quick and easy installation from inside the room without going into the attic.
Includes an opening template for drilling holes in the ceiling, as well as C-shaped support brackets and support rails to reinforce the ceiling.
The connection terminals use Euroblock connectors, which allow the terminal section to be detached, allowing wiring without lifting the speaker. A loop-through terminal is also provided for outputting signals to other speakers.

-Equipped with a coaxial speaker unit with a high-frequency driver positioned at the center of the low-frequency driver. The 6.5-inch low-frequency driver produces powerful sound.
-Maximum sound pressure level reaches 116dB SPL, making it ideal for high-ceiling spaces and noisy environments.
-Supports both low- and high-impedance connections with a single cable.
-Available in white and black (-BK).
