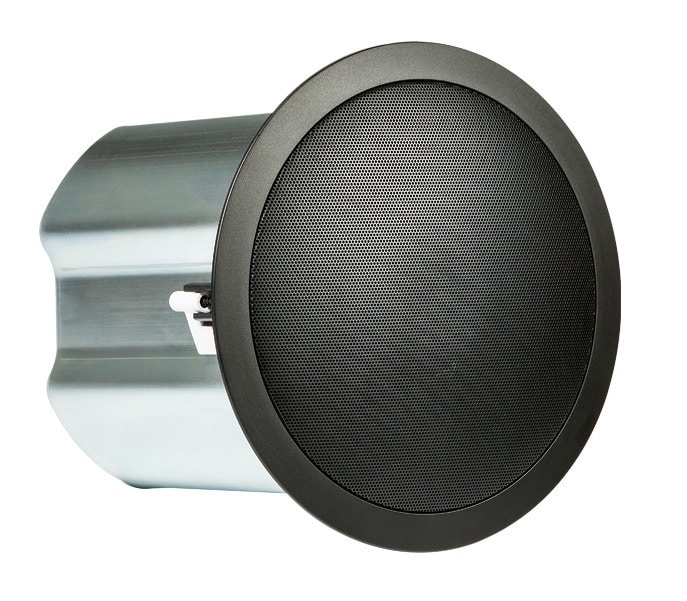

JBL/Control 18C / T-BK Embedded ceiling speaker

JBL / Control 18C / T-BK Embedded ceiling speaker

JBL / Control 18C / T-BK Embedded ceiling speaker ※画像はホワイトとなります。

※画像はホワイトとなります。

Variations

The Control 18C/T-BK is a ceiling-mounted speaker that delivers uniform sound over a wide area. It features a coaxial speaker unit with a high-frequency driver positioned at the center of the low-frequency driver. The large 8-inch low-frequency driver delivers powerful sound. With a maximum sound pressure level of 118dB SPL, it performs well in spaces with high ceilings or in noisy environments. Available in black.

■ Ceiling-mounted speaker

■ Coaxial 2-way full-range

■ 180W

■ 8Ω

■ 70/100V

■ 5.5kg

■ Pair

■ Black

■ Frequency response (-10dB): 58 Hz - 20 kHz

■ Frequency response (±3dB): 80 Hz - 16 kHz

■ Power handling: 180W Continuous Program Power

■ Sensitivity: 92 dB Nominal

■ Coverage: 90° conical coverage

■ Output sound pressure level SPL@1m: 112 dB @ 1 m (3.3 ft) average, 118 dB peak

■ Impedance: 8Ω

■ Transformer taps:

60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only)

■ LF driver: 200mm Polypropylene cone, rubber surround

■HF driver: 25 mm silk dome tweeter

■Input terminal: Euroblock

■Baffle diameter: 282 mm

■Dimensions: 307 x 307 x 290 mm

■Weight: 5.5 kg

■Accessories:

C-type support bracket x 2, support rail x 4, bracket fixing screw x 4, opening template x 2, painting shield x 2

■A ceiling-mounted speaker that delivers the superior sound characteristic of JBL PROFESSIONAL with uniform sound quality over a wide area.

■The Control 10 Series incorporates a combination of various technologies to achieve the superior sound characteristic of JBL PROFESSIONAL. It delivers clear announcements and comfortable background music with uniform sound quality over a wide area. It creates a comfortable acoustic space in small to medium-sized facilities such as stores, hotels, conference rooms, and educational facilities.

■ Superior sound achieved through the optimal combination of numerous technologies

・Features a coaxial speaker unit with a high-frequency driver positioned at the center of the low-frequency driver.

・The low-frequency driver uses a lightweight, heat-resistant aluminum bobbin and a voice coil with excellent heat resistance. Even with continuous high sound pressure, changes in sound quality are minimized.

・The high-frequency driver employs a center dome made of a material with excellent attenuation characteristics, producing a clear and warm sound. Furthermore, the lightweight, heat-resistant Kapton? bobbin and magnetic fluid cooling mechanism improve frequency response and reliability. The waveguide is also uncompromising, delivering uniform sound across the entire coverage area.

■ Versatile and suitable for various venues

・The Control12C/T and Control14C/T have a wide coverage angle, covering a large area with a single unit. Because fewer units are needed, they can be introduced even in venues with strict budget constraints. The Control16C/T and Control18C/T achieve high maximum sound pressure levels, making them ideal for spaces with high ceilings or noisy environments.

* In addition to low-impedance connections, the built-in transformer allows for high-impedance connections as well. A single power amplifier can efficiently drive multiple speakers, minimizing sound quality degradation during long-distance transmission.

* The speaker surface uses flame-retardant and UV-resistant materials, while the cone is made of polypropylene and the surrounding edge is made of butyl rubber, ensuring high durability even in humid environments.

* Available in white and black (-BK), the speaker's edge and grille can be painted to match the interior of the installation location. A shield to protect the driver during painting is also included.

■ Quick and easy installation from inside the room without needing to access the ceiling space.

* Includes an opening template for drilling holes in the ceiling, C-shaped support brackets for ceiling reinforcement, and support rails.

* The connection terminals use Euroblock connectors with removable terminal sections, allowing for wiring without lifting the speaker. It also features a loop-through terminal for outputting signals to other speakers.

* Equipped with a coaxial speaker unit with a high-frequency driver positioned in the center of the low-frequency driver. The large 8-inch low-frequency driver delivers powerful sound even without a subwoofer.

* Reaches a maximum sound pressure level of 118dB SPL, making it suitable for spaces with high ceilings or noisy environments.

* Supports both low and high impedance connections with a single cable.

* Available in white and black (-BK).
