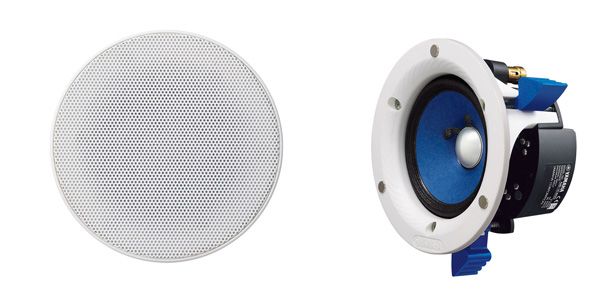

YAMAHA / NS-IC400 WHITE

The slim size means there are fewer installation restrictions, and it can be used on ceilings and walls with limited installation space. The large, non-clip clamp and magnetic catch grill allow for quick and secure installation.

~From the manufacturer's website~

The NS-IC series of ceiling speakers for facilities are built-in ceiling speakers that deliver high sound quality. Their slim design minimizes installation restrictions, making them suitable for ceilings and walls with limited space. The large, non-clip clamps and magnetic catch grille allow for quick and secure installation. They also feature a back cover that protects the speaker unit and circuitry from dust and moisture.

■Type: Mechanical 2-way
■Frequency Range (-10dB): 95Hz - 40kHz
■Rated Impedance: 8Ω
■Power Input Capacity
　NOISE: 15W
　PGM: 30W
　MAX: 90W
■Output Sound Pressure Level (1W, 1m): 85dB SPL
■Components: 10cm Double-Layer Cone
■Connector: Push-Pin Terminals
■Dimensions & Weight: Φ150x86.5Hmm, 0.8kg
■Accessories: Grille, Template
■Pair

■Installation Simulation Software: CISSCA
Commercial Installation Solutions Speaker Calculator (CISSCA) is calculation software that allows you to quickly estimate the optimal number of speakers required for your project by entering information such as the size and purpose of the room where the speakers will be installed, the type of speaker, and the placement pattern. You can also check the effective sound pressure value of the resulting estimate.

- Quickly estimate the number of speakers required for your project
- Easy setup and operation
- Convenient report output function for smooth system proposals
