MIDAS / M32C

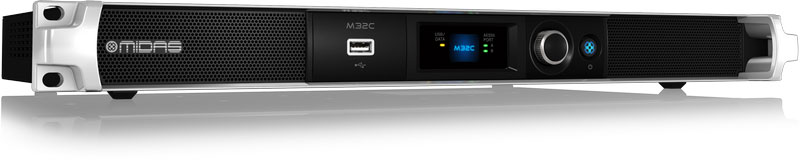

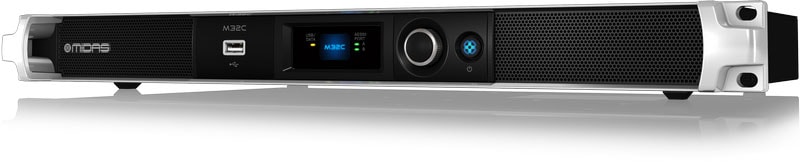

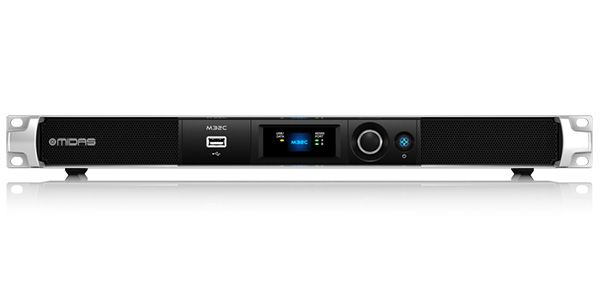

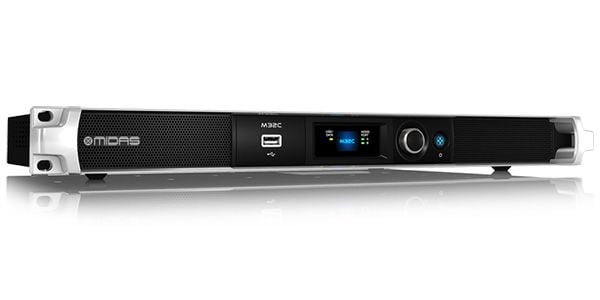

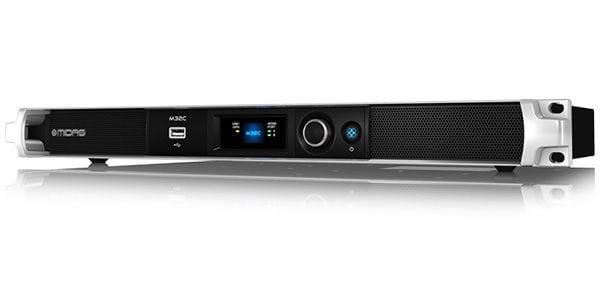

The M32C is a digital mixer from MIDAS. Its AES50 network allows for up to 96 inputs and 96 outputs. It features a high-performance aluminum construction combined with impact-resistant steel. Wireless remote control is possible via iPhone or iPad.

■ Digital Mixer

■ Rack Type

■ 40-input channel, 25-bus, 1U rack-mountable digital mixing core for live and fixed sound applications

■ 40-bit floating-point signal processor

■ 8 DCA, 6 mute groups

■ 8 stereo signal processors, effects engine

■ 32x32 channel, USB 2.0 audio interface


? 40-input channel, 25-bus, 1U rack-mountable digital mixing core for live and fixed sound applications

? 25 mix buses - in-phase with no time lag

? AES50 network allows assignment of up to 96 inputs and 96 outputs

? Open architecture designed for 96kHz sampling rate operation

? High-performance aluminum and impact-resistant steel construction

? 40-bit floating-point signal processor

? 8 DCA, 6 mute groups

? 8 stereo signal processors, effects engine

? 32 x 32 channels USB 2.0 Audio Interface

* Built-in expansion port as an audio interface card or digital network bridge

* MIDI In/Out for remote scene recall or controllable other MIDI devices

* Wireless remote control via iPhone or iPad

* Auto-ranging, universal switch-mode power supply

~From the manufacturer's website~

The 40-input, 25-bus M32C houses the brains of the flagship M32 digital mixing console, all in a high-performance aluminum and steel 1U form factor. Multiple, geographically dispersed inputs and outputs can be easily coupled to the M32C using DL16 or DL32 stage boxes. Two AES50 network CAT5 connectors allow control and processing of up to 96 remote inputs and 48 output channels from the M32C. Furthermore, free remote software applications, M32-EDIT, M32-MIX, and M32-Q, allow for easy parallel management from various locations.

The M32C is designed to provide easy access to the uncompromising advantages of digitalization. MIDAS's unparalleled commitment to offering numerous value propositions allows for the integration of the M32C's advanced features (such as its standard-equipped comprehensive personal monitor mixing and extremely high-speed digital audio networking).

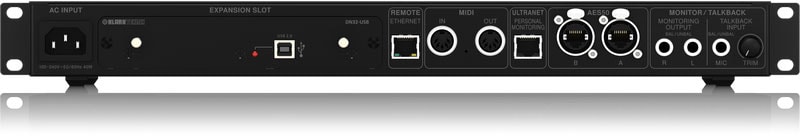

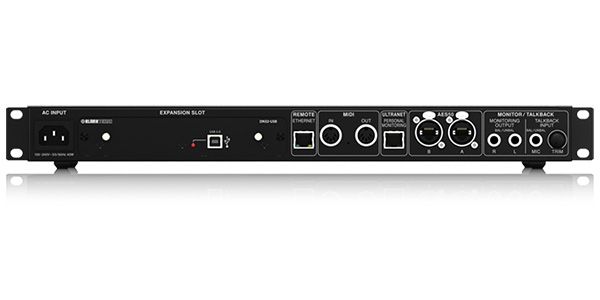

Simple configuration changes via front panel controls allow for a limited amount of user intervention, which can be pre-configured by engineers, while concealing all complexity. Expansion ports on the rear panel allow for additional connectivity to existing networked audio infrastructure with optional interface I/O cards.

The M32C's expansion slots provide flexible and expandable connectivity for a wide range of applications. A wide variety of KLARK TEKNIK expansion cards can be used to easily integrate the M32C's capabilities with existing MADI, Dante, and ADAT networks, replacing the standard DN32-USB card.
