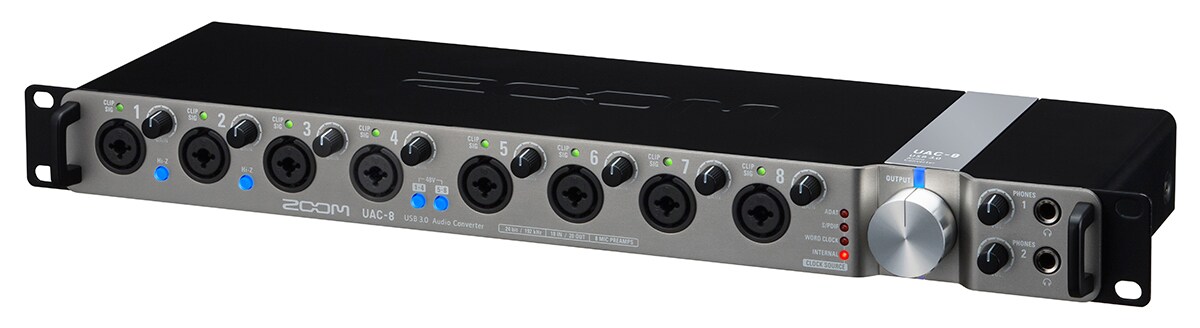

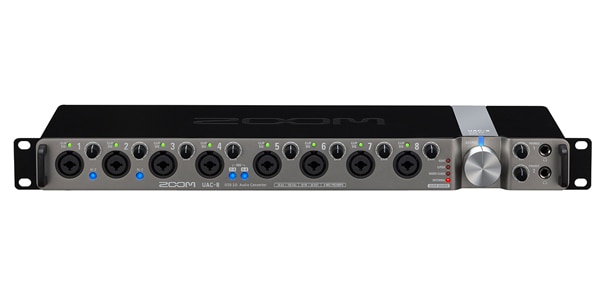

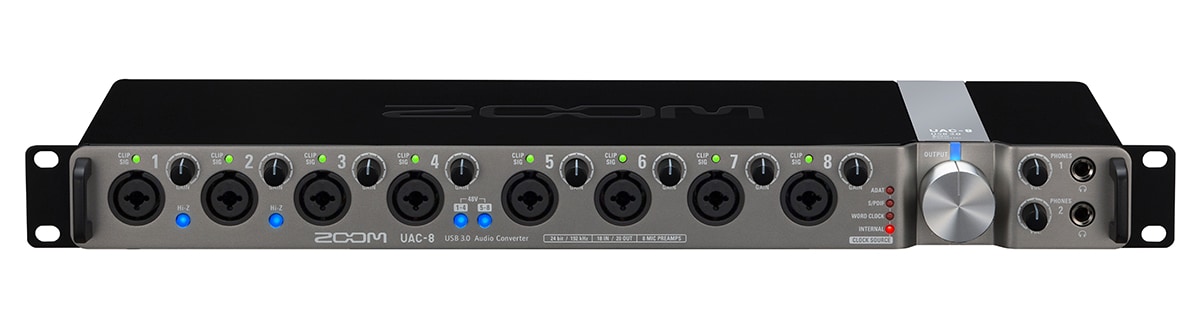

ZOOM / UAC-8

"UAC-8" which adopted the latest USB3.0 SuperSpeed interface. With a maximum of 18 in/20 out of input/output, it realizes ultra-high-speed latency and high-resolution sound quality of up to 24bit/192kHz. You can comfortably perform multitrack recording on a DAW system.

■ Audio interface
■ Up to 18 in/20 out
■ USB3.0 SuperSpeed ​​standard (USB2.0 standard can also be used)
■ Supports recording/playback of high-resolution sound up to 24-bit/192kHz
■ 8 XLR/TRS analog inputs (both microphone and line compatible)
■ Equipped with 8 lines of TRS balance out and master out
1-in/1-out MIDI interface
■ 1U rack mount design with a sturdy metal body
S/PDIF input/output: 2 in/2 out (up to 24bit/192kHz compatible)
■ ADAT optical input/output: 2 in/2 out @192/176.4kHz (S/MUX4 compatible), 4 in/4 out @96/88.2kHz (S/MUX compatible), 8 in/8 out @48/44.1kHz
■ WORD CLOCK input/output
■ Computer-free, stand-alone mode that operates as 8-channel mic pre
■ Supports Mac/Windows PC equipped with USB 2.0/3.0 port or iPad (※)
■ Special mixer application "UAC-8 MixEfx" can be used

*Apple iPad Camera Connection Kit is required separately.

■Specifications

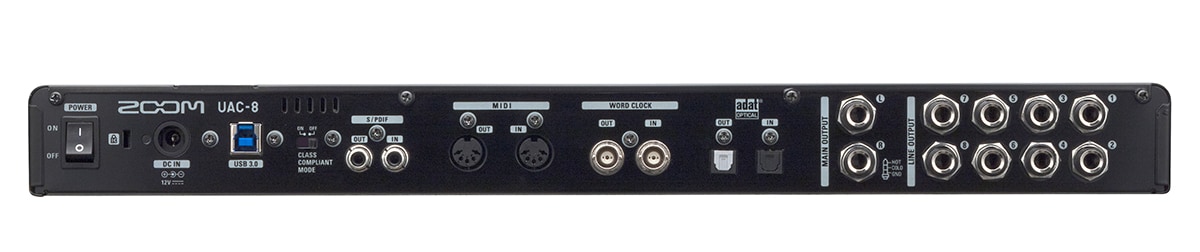

ANALOG INPUT
・INPUT1 to 8 specifications XLR/TRS combo jack (XLR: 2nd hot TRS: TIP hot), phantom power +48V
ANALOG OUTPUT
・MASTER OUTPUT L/R specification TRS phone jack (balanced)
・LINE OUTPUT1-8
・PHONES 1/2 specification standard stereo phone jack 20mWx2 (with 32Ω load)
DIGITAL IN/OUT
・ADAT OPTICAL specification rectangular optical connector
8IN/OUT: 44.1kHz/48kHz
4IN/OUT: 88.2kHz/96kHz S/MUX compatible
2IN/OUT: 176.4kHz/192kHz S/MUX4 compatible
・S/PDIF specification RCA pin (coaxial), compatible frequency 44.1/48/88.2/96/176.4/192kHz
・WORD CLOCK specification BNC connector, compatible frequency 44.1/48/88.2/96/176.4/192kHz, output impedance 75Ω

Frequency characteristic
・Frequency characteristics (44.1kHz): -1.0dB: 20Hz to 20kHz
・Frequency characteristics (96kHz): -1.0dB: 20Hz-40kHz
・Frequency characteristics (192kHz): -1.0dB: 20Hz-60kHz, -2.0dB: 80kHz

Dynamic range AD: 120dB typ (IHF-A), DA: 120dB typ (IHF-A)

Number of recording/playback channels
Audio interface/standalone mode
Recording: 18 channels (ANALOG: 8, S/PDIF: 2, ADAT OPTICAL: 8)
Playback: 20 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 8)
@ 44.1kHz, 48kHz
Recording: 14 channels (ANALOG: 8, S/PDIF: 2, ADAT OPTICAL: 4)
Playback: 16 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 4)
@ 88.2kHz, 96kHz
Recording: 12 channels (ANALOG: 8, S/PDIF: 2, ADAT OPTICAL: 2)
Playback: 14 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 2)
@ 176.4kHz, 192kHz
CLASS COMPLIANT mode
Recording: 8 channels (ANALOG: 8)
Playback: 10 channels (ANALOG: 10)
@ 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Sampling frequency 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, bit length 24bit
Interface USB3.0 / 2.0
MIDI IN/OUT 5-pin DIN jack
Power supply AC adapter: DC12V 2A AD-19
Size/Weight: 157.65mm(D) x 482.6mm(W) x 46.03mm(H), 2.02kg
Accessories Manual, USB3.0 cable, AC adapter, Cubase LE (download version)

■ Operating environment

PC: Windows 7/8/8.1 (32bit, 64bit)
*Intel USB3.0 chipset model recommended
Mac: Mac OS X 10.8.5 or later
iPad: iOS 7.1 or later
*Apple iPad Camera Connection Kit is required separately.

Please check the following for use with Logic.
*Bugs related to Logic and workarounds
https://www.zoom.co.jp/sites/default/files/products/downloads/pdfs/Logic%E3%81%AB%E9%96%A2%E3%81%99%E3%82%8B% E4%B8%8D%E5%85%B7%E5%90%88%E3%81%A8%E5%9B%9E%E9%81%BF%E6%96%B9%E6%B3%95_TAC_UAC%E3% 82%B7%E3%83%AA%E3%83%BC%E3%82%BA_2.pdf
