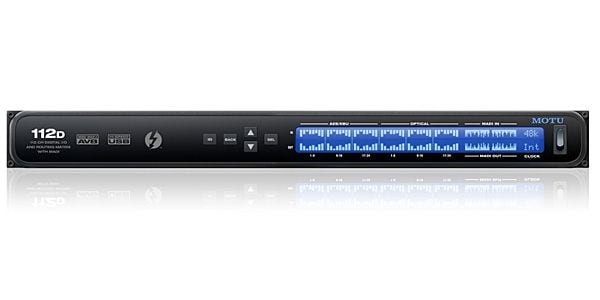

MOTU / 112D

Audio interface, Thunderbolt / USB2.0, ADAT, AES / EBU, MADI equipped, AVB Ethernet

■ Audio interface

112D is a Thunderbolt / USB / AVB audio interface that handles up to 112 channels equipped with ADAT, AES / EBU, and MADI input / output.

The 112D works not only as a highly flexible Thunderbolt audio interface, but also as a format converter, router and standalone mixer.

・ Supported sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

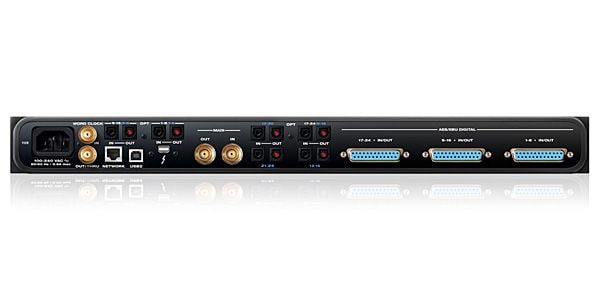

・ Digital input / output:
ADAT Optical x 3 bank: 24ch (1x sampling rate)
AES / EBU x3 bank: 24ch (D-Sub 25-pin terminal)
BNC MADI in / out: 64 / 56ch @ 1x, 32 @ 2x, 16 @ 4x
・ Total input / output
112 inputs 112 outputs (total 224) 44.1KHz and 48KHz
80 inputs and 80 outputs (32 in total) 88.2KHz and 96KHz
16 inputs 16 outputs (24 in total) 176.4KHz and 192KHz
・ Computer I / O
Thunderbolt: 1
USB 2.0 Audio Class Compliant (3.0 compatible): 1
AVB Ethernet: 1 (OS X Yosemite required)
・ Synchronous input / output:
Word clock input: 1
Word clock output / through: 1

■ Operating environment

Macintosh
・ 1 GHz or higher Intel processor
2 GB or more memory (4 GB or more recommended)
・ Mac OS X 10.8 or later
・ Thunderbolt port, USB 2.0 port or AVB Ethernet port * OS X Yosemite is required to use the AVB Ethernet port
・ Large capacity hard disk drive (500 GB or more for recording)

Windows
・ Pentium processor of 1 GHz or more
2 GB or more memory (4 GB or more recommended)
・ Windows 7 or later
・ USB 2.0 port or USB 3.0 port
・ Large capacity hard disk drive (500 GB or more for recording)

Web app support
・ Cross-platform: Mac, Windows, Linux, iOS, Android
・ Web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
* The web client and MOTU AVB interface must be connected on the same network (either wired or wireless).

Software
・ Thunderbolt / USB 2.0 driver
・ MOTU AVB Discovery App for Mac
・ MOTU AVB Discovery App for iOS (Download from Apple App Store)
・ MOTU AVB Control web app (provided from AVB hardware)
・ AudioDesk 4.0 (provided as a separate download method)

Supported OS
・ Audio I / O support: Mac OS X 10.8 or later / Windows 7 or later
・ Web application control: Mac, Windows, Linux, iOS, Android
