SHURE / SVX14J/CVL-JB1

This SVX series lavalier microphone set offers excellent cost performance. The included CVL lavalier microphone is compact and unobtrusive. Its unidirectional design makes it resistant to feedback and easy to use. This wireless set is ideal for meetings, lectures, speeches, and more.

Compact lavalier microphone included system
SVX4 diversity receiver, SVX1 bodypack transmitter, and lavalier microphone set.

■System Components

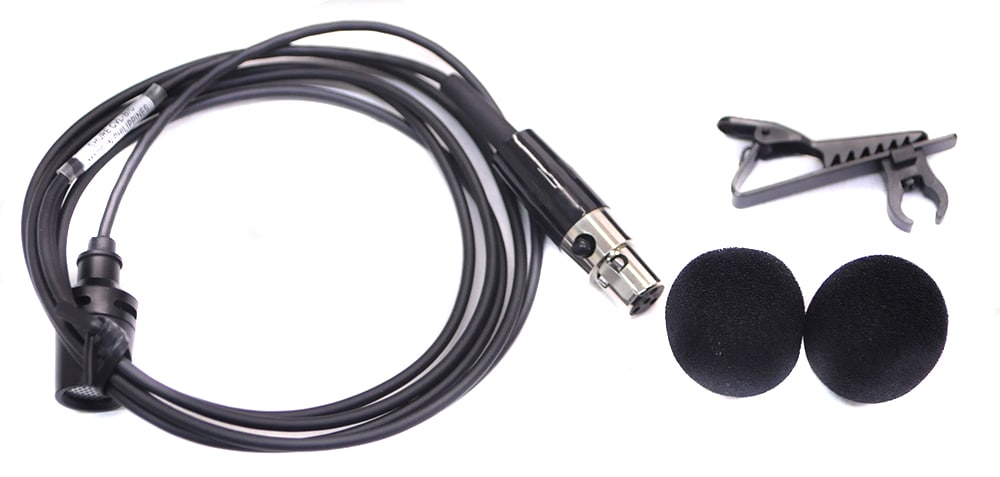

- CVL-B-TQG Lavalier Microphone
- SVX1 Bodypack Transmitter
- SVX4 Receiver
- AC Adapter
- 2 x AA Alkaline Batteries
- Cable Clip
- 2 x Windscreens
- Channel Switching Tool
- Channel Stickers

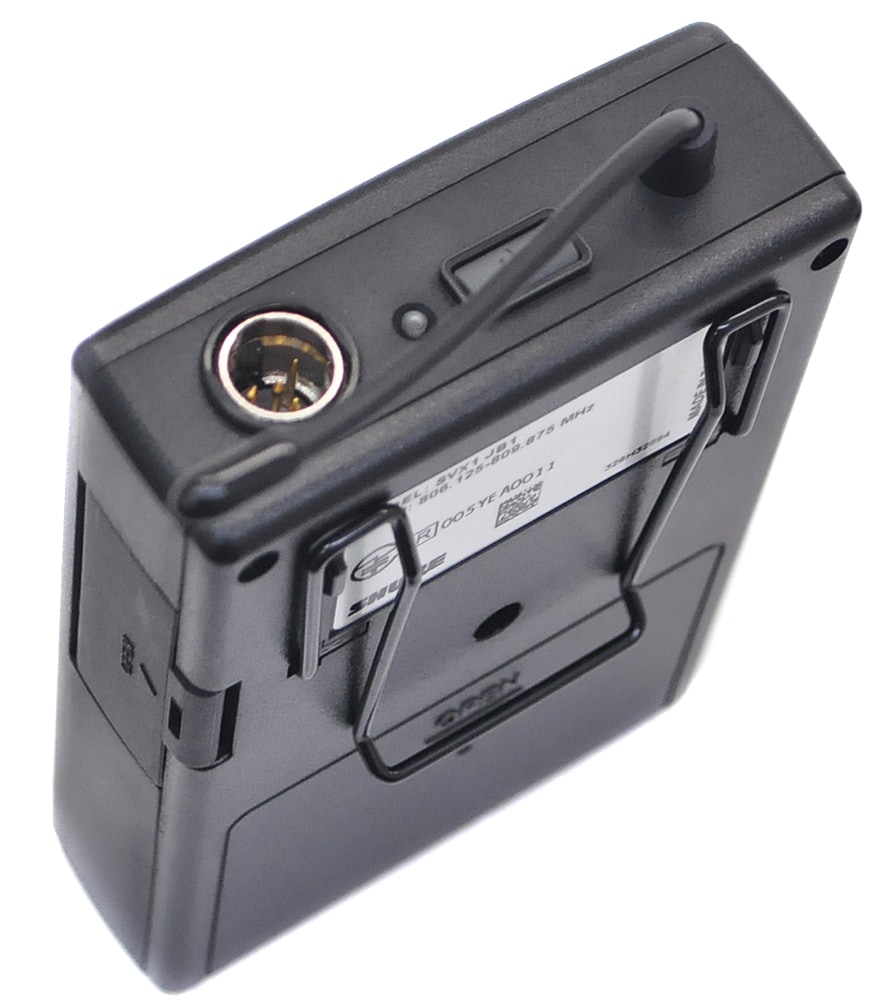

■SVX1 Transmitter
Transmit Frequency: Type B (806-810MHz), any one of 8 channels
Transmit Power: 10mW
Antenna Type: 1/4 Wavelength Whip
Maximum Input Level: -7dBV (MIC/LINE Switch ""MIC"" and GAIN Dial ""All the Way Up"") +9dBV (MIC/LINE Switch ""LINE"" and GAIN Dial ""All the Way Up"")
Gain Adjustment Range: -15dBV to +9dBV (GAIN Dial / 0 to +8dB) (MIC/LINE Switch / MIC/LINE Sensitivity Difference: 16dB) Power Source: 2 x AA alkaline batteries or 2 x AA nickel-metal hydride rechargeable batteries
Battery Life: Approximately 10 hours *When using alkaline batteries. Varies depending on usage environment. Dimensions and Weight: 64mm W x 108mm H x 19mm D, 90g (with dry cell batteries)

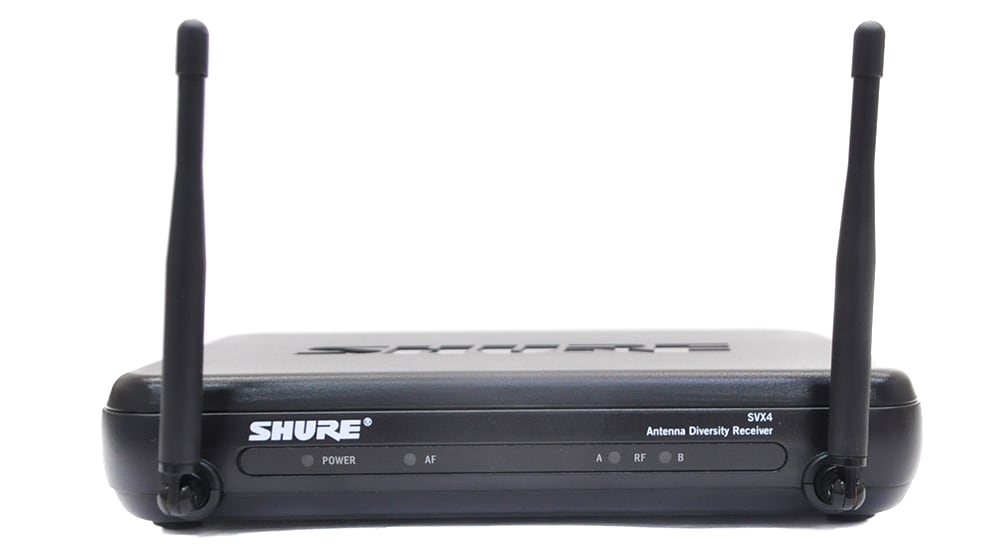

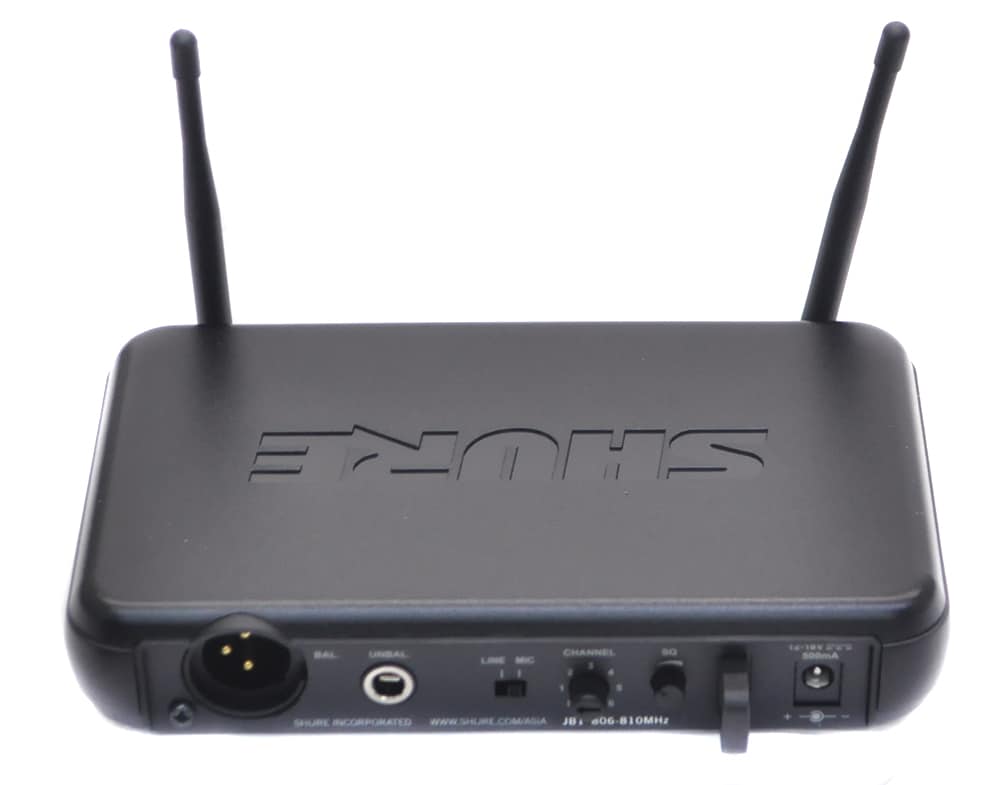

■SVX4 Receiver
Receiving Frequency: Type B (806-810MHz) Any one of 8 channels
RF Sensitivity (12dB SINAD): -105dBm (typical)
Audio Output: Connector: 3-pin XLR, male (balanced), phone jack (unbalanced)
Impedance: 600Ω
Level: XLR: -16dBV (100kΩ load) Phone jack: -22dBV (100kΩ load)
Power Supply: DC 12-18V (130mA)
Included AC adapter (AC 100V, 50/60Hz)
Dimensions and Weight: 168mm W x 32mm H x 105mm D, 245g
