SHURE / SVX288/PG58

Dual channel model with two PG58 handheld transmitters. Basic settings can be made simply by matching the transmission and reception frequencies of the transmitter and receiver. The receiver is "frequency-variable" and can change the frequency when the reception conditions are not good. The transmitter can run for 10 hours or more on two AA alkaline batteries.

＜Set contents＞
 ・ SVX2 handheld transmitter (PG58)
 ・ SVX88 receiver
 ・ AC adapter (PS21 AC adapter)
 ・ Channel key (Transmitter channel selection tool)
 ・ AA batteries x2

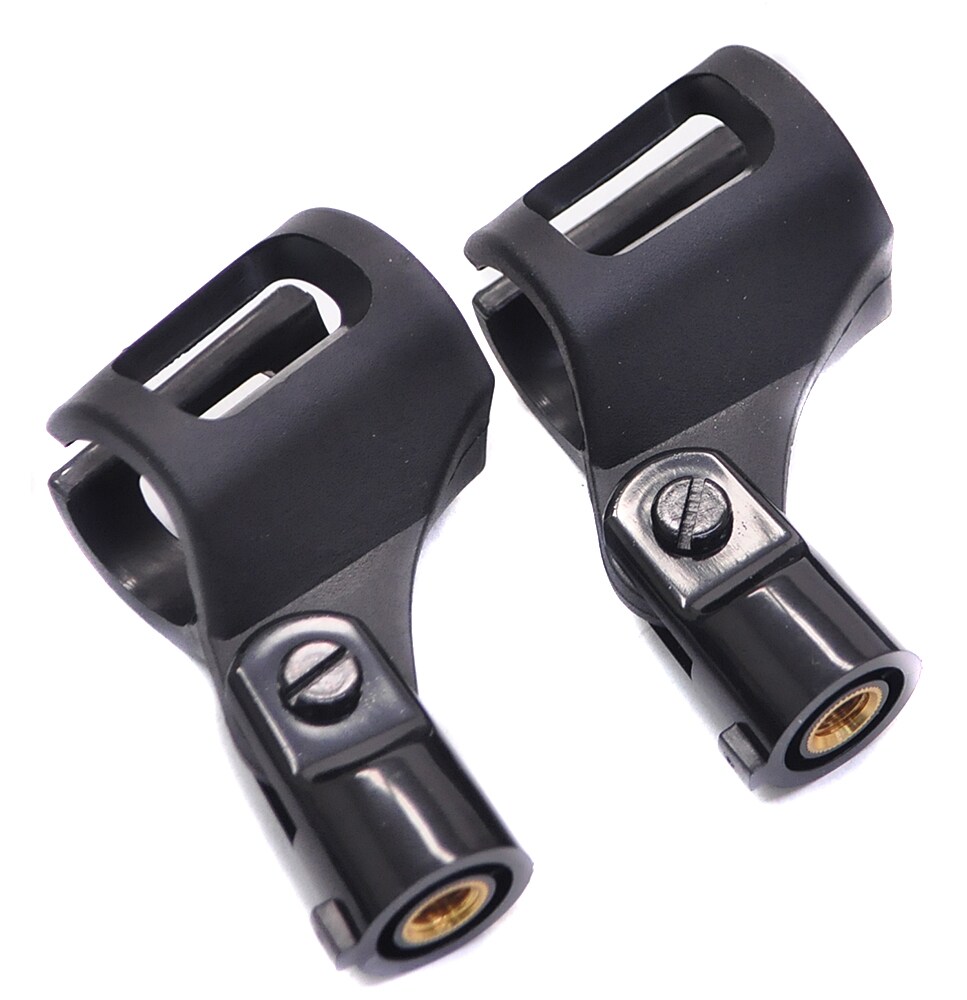

 ・ Microphone stand adapter (3/8 inch) / 95A14227

＜SVX2 transmitter＞
■ Audio input level: 20 dBV maximum
■ Input impedance: 22 kΩ
■ Transmission output: HI output mode 10 mW maximum / LO output mode: 1 mW maximum
■ Molded ABS
■ Power supply: 2 AA alkaline batteries or rechargeable batteries
■ Battery life: Up to 10 hours (alkaline batteries)
■ Dimensions and weight (dry battery): 254 mm x 51 mm diameter (10 inch x 2 inch), 270 g

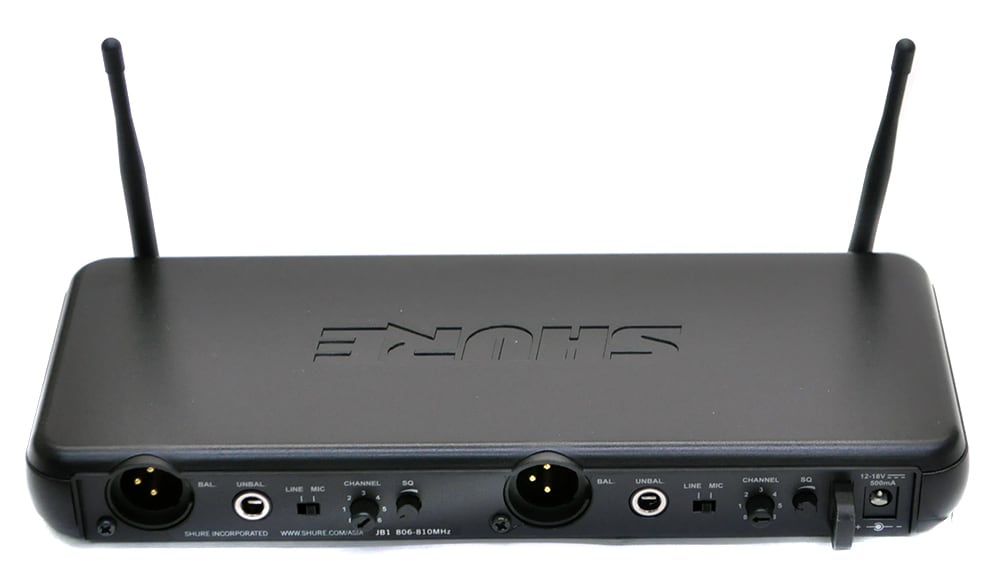

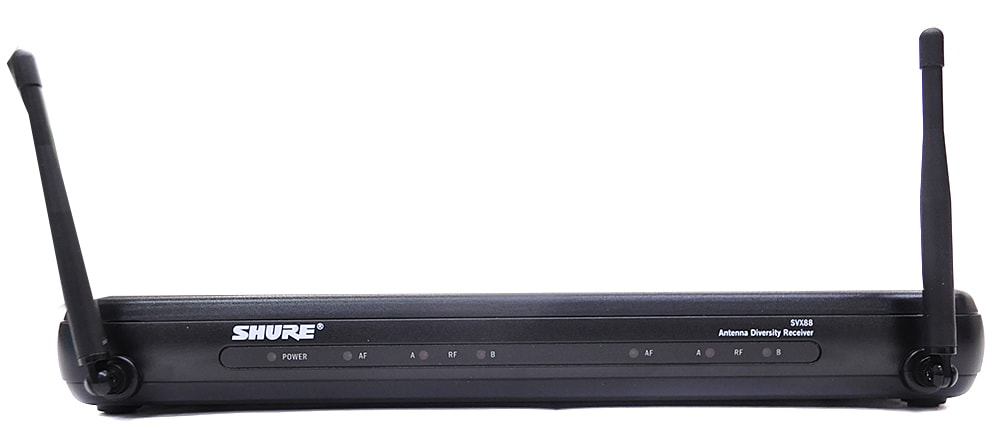

＜SVX88 (dual channel) receiver＞
■ Molded ABS
■ Audio output level (Ref. ± 48 kHz deviation, tone 1 kHz)
 ・XLR connector To 100 kΩ load: -16 dBV (MIC)
 ・6.35 mm phone jack 100 kΩ load: -22 dBV (MIC)
■ Output impedance: XLR connector: 600 Ω / 6.35 mm phone jack: 600 Ω
■ Sensitivity: 105 dBm 12 dB For SINAD, standard
■ Image suppression ratio: > 50 dBm, standard
■ Power supply: 12 to 18 V DC @ 130 mA, supplied by AC adapter
