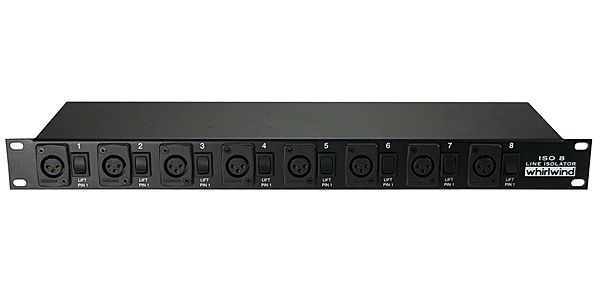

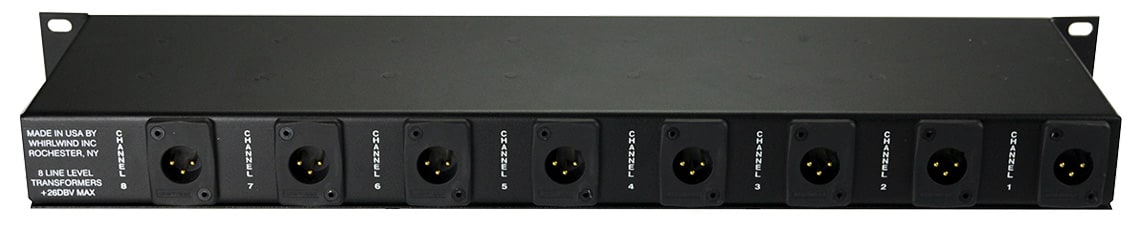

WHIRLWIND / ISO8

Sometimes a ground lift is not enough to remove noise, and the ISO-8 is useful when running signal lines between various pieces of equipment.

Ground lifts are sometimes insufficient to eliminate noise. The ISO-8 is effective when routing signal lines between various devices. It acts as both an isolator and a balancer, providing complete hum control in broadcast and live sound applications. While unbalanced outputs are typically prone to introducing system noise, the ISO-8 eliminates noise at the source.

■Line Level Isolator
■8 Channels
■XLR Connectors
■Frequency Response: 20Hz-20kHz ±0.5dB (at +10dBm input)
■Maximum Input Level: +28dBm
■Input Impedance: 600 Ohms
■Output Impedance: 600 Ohms
