SHURE / SVX188/CVL

SHURE製ワイヤレスマイクセット。ボディパック送信機SVX1×2、受信機SVX88、CVLラベリアコンデンサーマイク×2が付属しています。

[Set contents]
 ・ SVX1 bodypack transmitters x2
 ・ SVX88 receiver x1
 ・ CVL lavalier condenser microphone x2

＜SVX1 transmitter＞
■ Radio format: F3E
■ Range: about 18m (transmission power: 1mW), about 75m (transmission power: 10mW)
 * 1mW transmission power can be selected only for handheld transmitter.
 * When used outdoors with good visibility. Depends on usage environment.
■ Frequency characteristics: 50 to 15kHz * The entire system bandwidth varies depending on the microphone head.
■ Transmission frequency: Any one of B type (806-810MHz) 8 channels (806.375, 807.625, 809.500, 806.1250.000, 809.375, 808.250, 809.625)
■ Transmission output: 10mW switching
■ Antenna type: 1/4 wavelength whip
■ Maximum input level:
・ 7dBV (MIC / LINE switch "MIC", GAIN dial "up")
・ + 9dBV (MIC / LINE switch "LINE", GAIN dial "up")
■ Power supply: AA alkaline batteries x 2 or AA nickel metal hydride rechargeable batteries x 2
■ Battery life: about 10 hours (when using alkaline batteries) * Depends on usage environment.
■ Dimensions and weight (dry batteries): width 64 x height 108 x depth 19mm, 90g (dry batteries)
■ Accessories: AA alkaline batteries x 2, channel switching tool

＜SVX88 (dual channel) receiver＞
■ Molded ABS
■ Audio output level (Ref. ± 48 kHz deviation, tone 1 kHz)
 ・XLR connector To 100 kΩ load: -16 dBV (MIC)
 ・6.35 mm phone jack 100 kΩ load: -22 dBV (MIC)
■ Output impedance: XLR connector: 600 Ω / 6.35 mm phone jack: 600 Ω
■ Sensitivity: 105 dBm 12 dB For SINAD, standard
■ Image suppression ratio: > 50 dBm, standard
■ Power supply: 12 to 18 V DC @ 130 mA, *Supplied by AC adapter

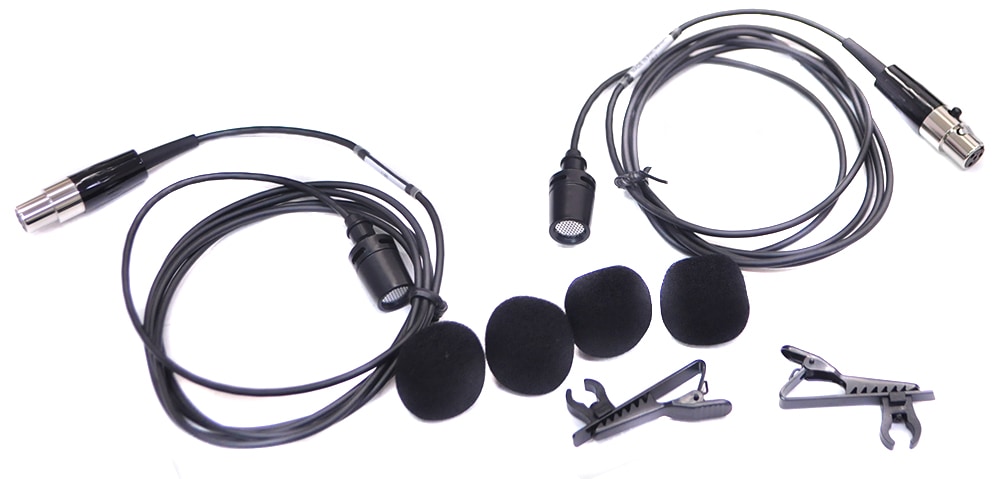

＜CVL-B / C-TQG＞
■ Miniature Lavalier microphone
■ Electret condenser type
■ Unidirectional
■ TA4F connector
