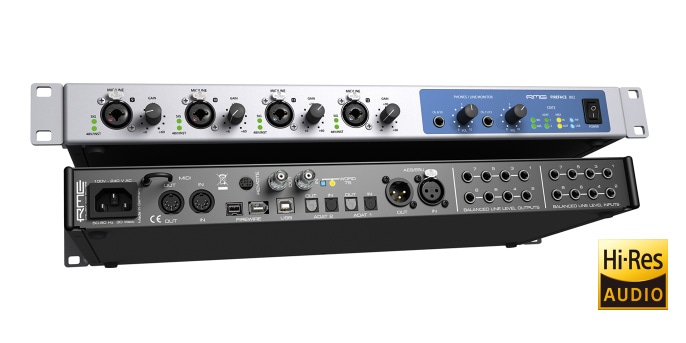

RME / Fireface 802 オーディオインターフェイス

Orthodox successor to the Fireface 800. Audio interface for professionals looking to the next 10 years!

■ Audio interface

Launched in 2004, 10 years later, the Fireface 802 has evolved even further while retaining the advanced design of the Fireface 800, which is comparable to the current product at all. , High-end microphone preamplifier, reference class converter, 192kHz compatible effect processing, etc. equipped with basic performance suitable for the latest models.

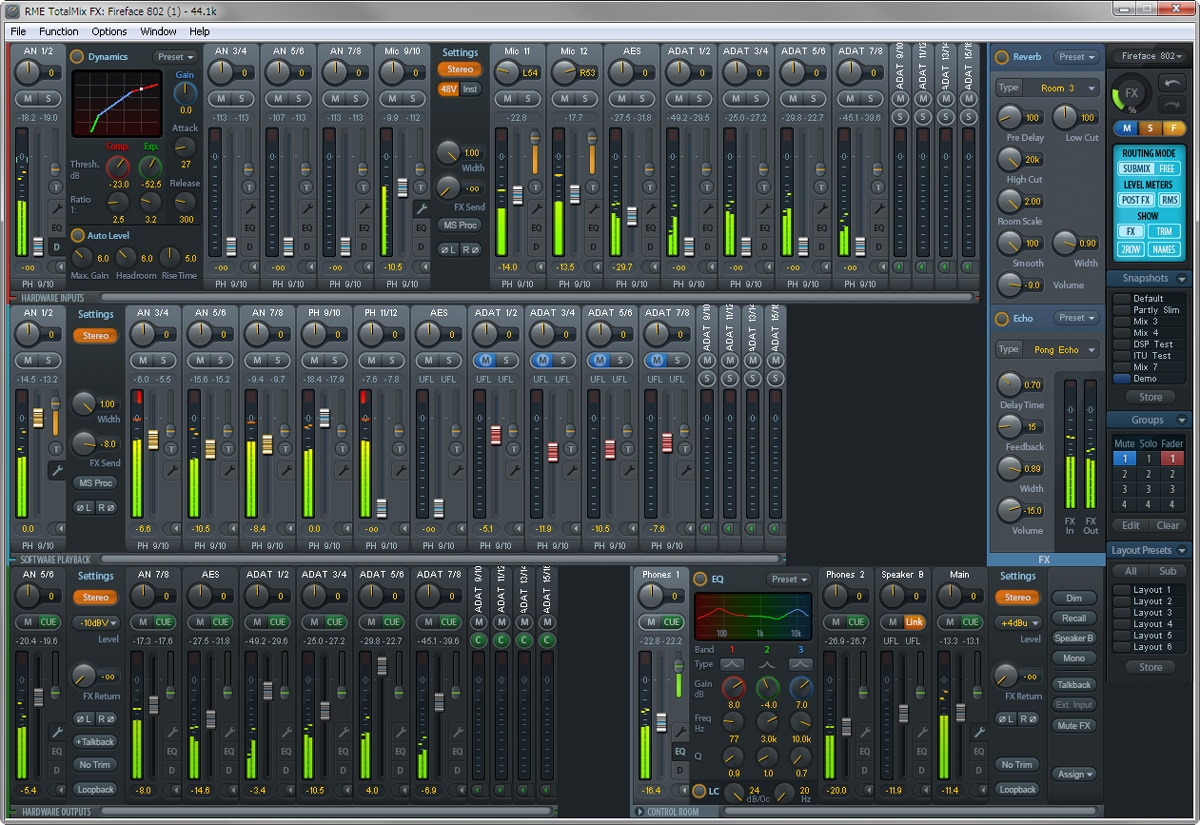

USB 2.0 or FireWire ultra-low latency RME driver, studio reference class clock and jitter control, individually configurable reference level settings for all inputs and outputs, digital mixer and router Unique functions of RME such as TotalMix FX that also functions as are generously introduced.

The Fireface 802 is a professional audio solution with a highly integrated audio interface integrated into a 19-inch 1U rack size, offering uncompromising sound quality, latency and stability. As a product, it will be a milestone for the next 10 years.

Main Specifications
・30ch input/30ch output audio channel (including 12ch input/output for analog I/O)
・Mic/Inst preamplifier x 4 (manual gain control)
・AES/EBU I/O × 1, ADAT I/O × 2 (One of these can also be used as SPDIF optical)
・Word Clock I/O x 1, MIDI I/O x 1, FireWire or USB 2.0 connection

Overview of analog I/O

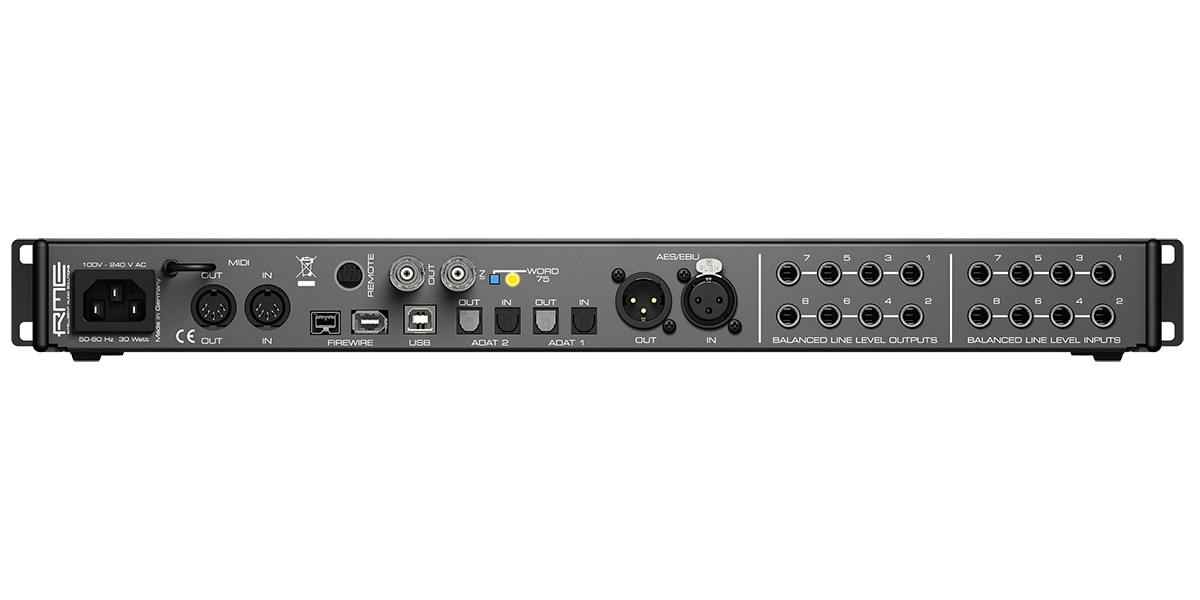

・Back:
Input: 1-8 (TRS balance)
Output: 1-8 (TRS balance)
・Front:
Input: 9-12 (XLR balanced/TS unbalanced combo jack)
Output: 9/10, 11/12 (standard phone, TRS stereo, unbalanced)

Like the already familiar Fireface UCX and UFX, the Fireface 802 implements USB 2.0 and FireWire ports.

USB 2.0: The Fireface 802 has firmware optimized for each OS for best performance on Windows and Mac OS X. Similar to Fireface UCX/UFX, it achieves ultra-low latency comparable to PCI Express (Thunderbolt).
*The minimum latency depends on the specifications and performance of the computer and application.

FireWire: RME's FireWire core combines outstanding compatibility with high performance. With 10 years of experience, it will deliver the best performance on any computer with a FireWire port.

■ Operating environment

・Windows
Windows XP SP2/Vista/7/8 or later (32bit/64bit)
USB 2.0 port (requires a computer with Intel Core 2 Duo series or higher CPU) or FireWire port (400/800)

・Mac
Mac OS X 10.6 or later, Intel Mac
USB 2.0 port (requires a computer with Intel Core 2 Duo series or higher CPU) or FireWire port (400/800)

*In Windows and Mac OS X, each driver provides the same function and operation. Some features of DIGICheck are not available on Mac version.
