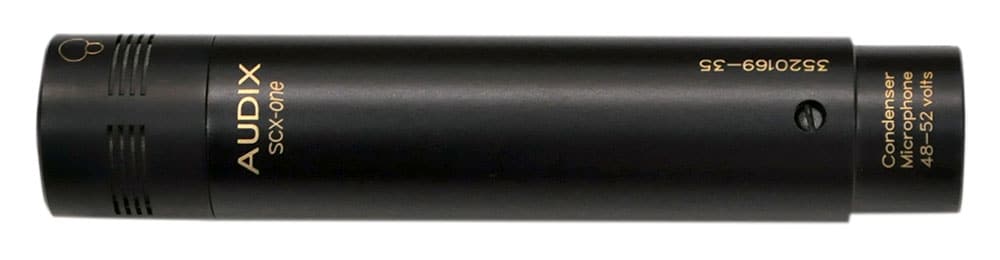

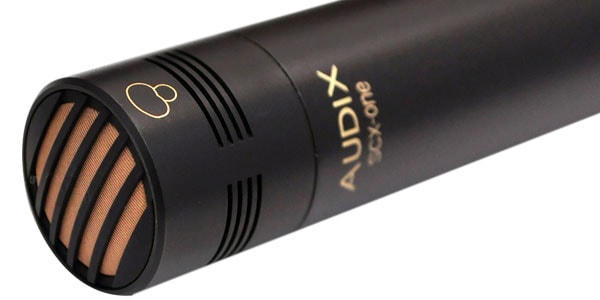

AUDIX / SCX1HC

This high-quality studio-grade condenser microphone is compact and durable, making it ideal for broadcasting and recording. It delivers flat sound and low noise, a wide response in both high and low frequencies, and can handle high sound pressure levels.

The SCX1 is a studio condenser microphone designed for a variety of recording, broadcast, and live applications.

The lineup includes the cardioid model SCX1, the matching cardioid pair SCX1MP, the hypercardioid model SCX1HC, and the omnidirectional model SCX1O.

This condenser microphone features high sensitivity, pinpoint accuracy, and compactness.

Its flat acoustic response from 40 Hz to 20 kHz ensures consistent on-axis and off-axis response, and excellent phase coherence.

The SCX1's wide cardioid polar pattern makes it ideal for recording drum overheads, instruments, ambience, orchestral sections, strings, piano, sound effects, group vocals, and spoken word.

The SCX1HC's narrow hypercardioid polar pattern makes it ideal for recording hi-hats and commentary applications where aesthetics are paramount.

The microphone capsule features a 21mm gold-deposited diaphragm and is housed in a compact housing. Supports up to 130dB sound pressure levels and provides up to 20dB of environmental noise rejection.

■Condenser microphone
■Frequency response: 40Hz-20kHz
■Supercardioid
■Output impedance: 200Ω
■Sensitivity: 17mV/Pa (1kHz, SCX1HC)
■Equivalent noise level: 14dB (A-weighted)
■S/N ratio: 80dB
■Maximum SPL: 130dB
■Dynamic range: 116dB
■Voltage: Phantom power (48-52V)

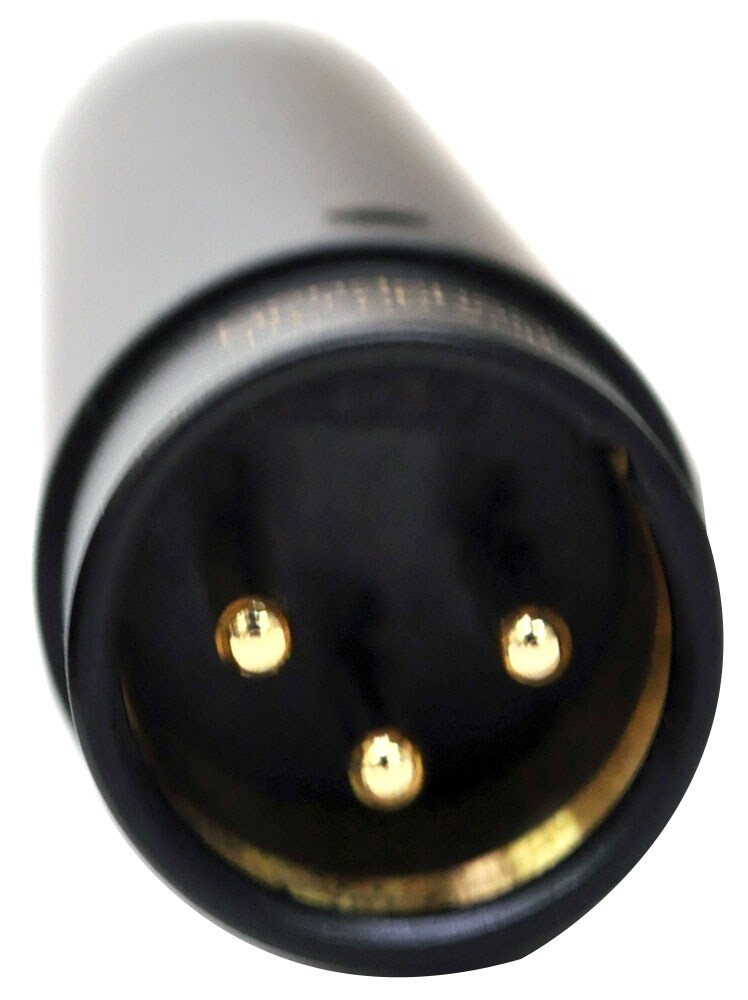

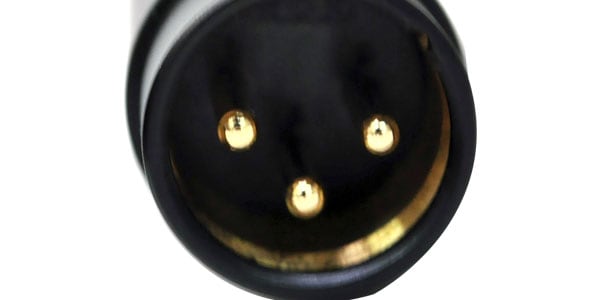

■Output connector: XLR 3-pin (male)
■Housing finish: Brass, multi-layer Class A liquid filler
■Length and weight: 104mm, 114g

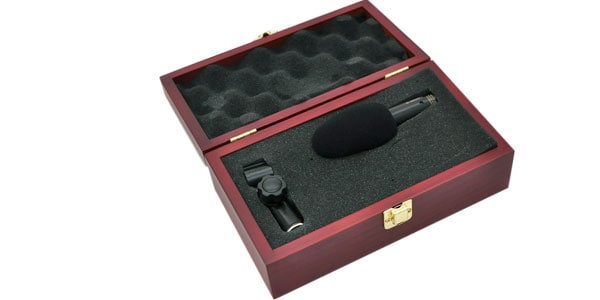

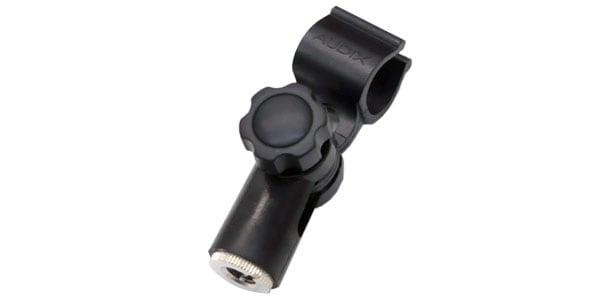

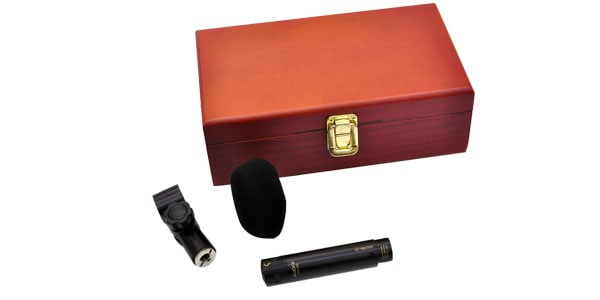

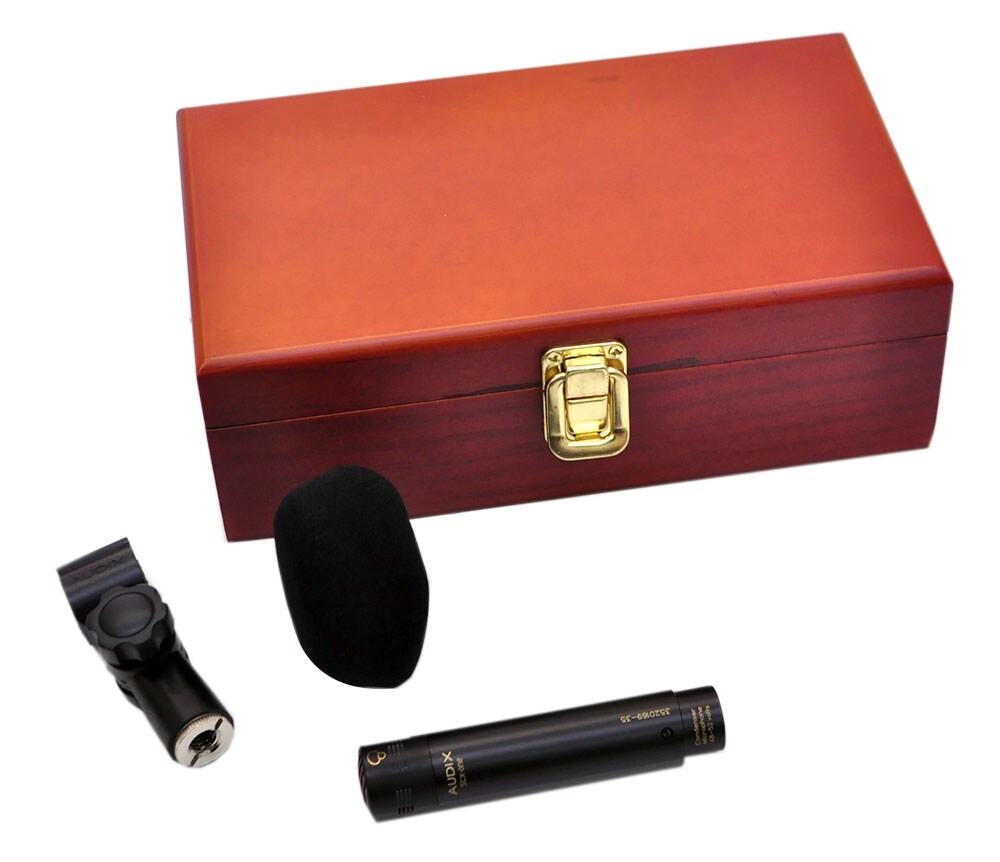

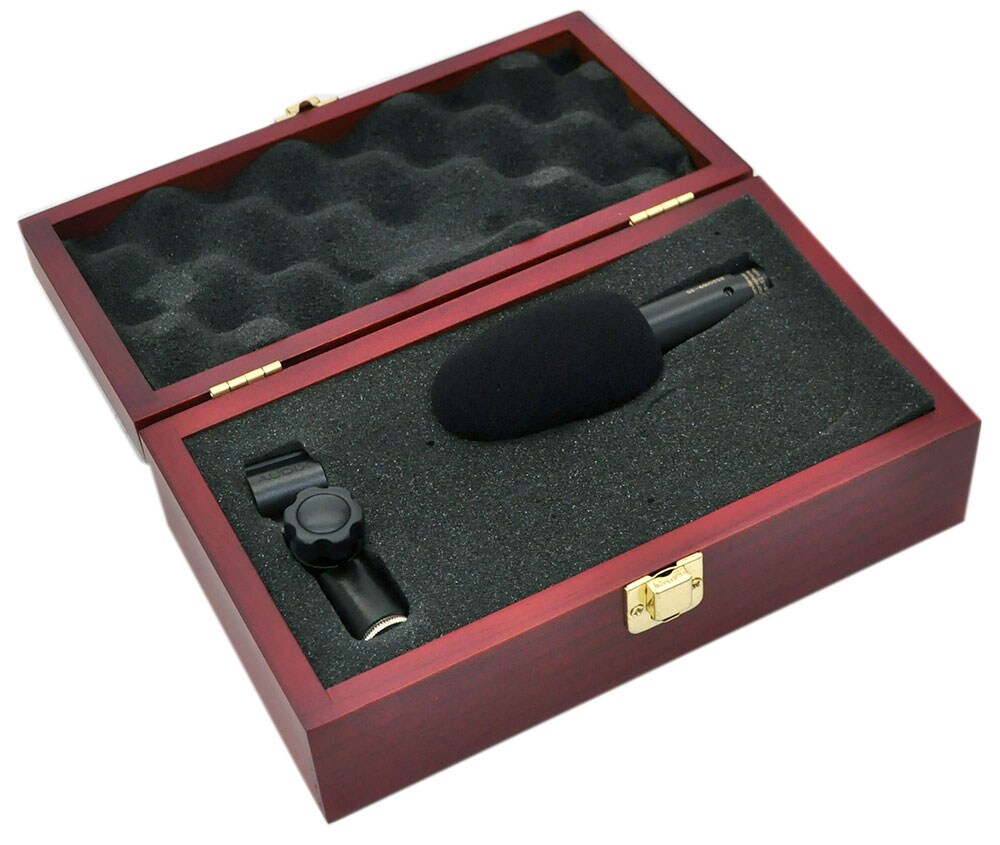

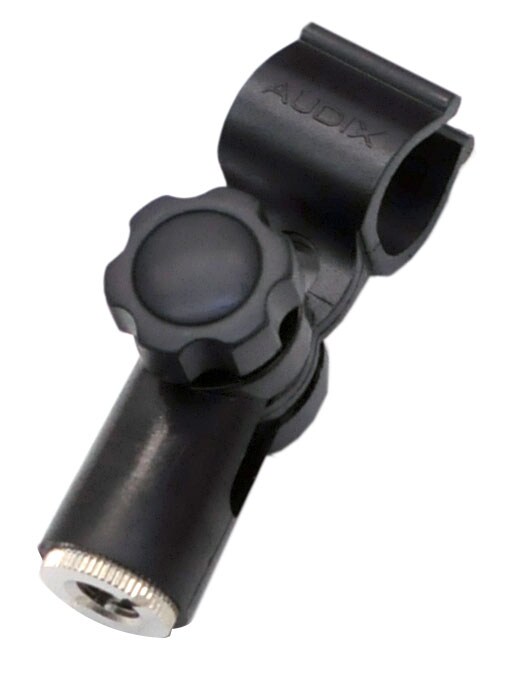

■Accessories: DCLIP microphone holder (with 3/8""-5/8"" adapter screw), windscreen, pouch
