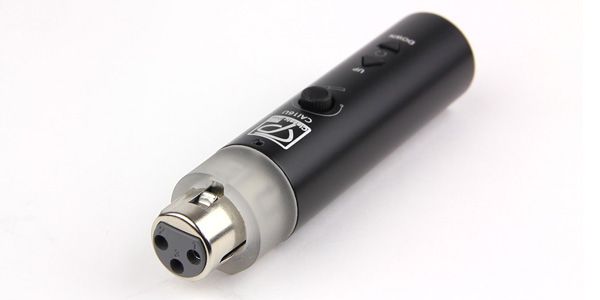

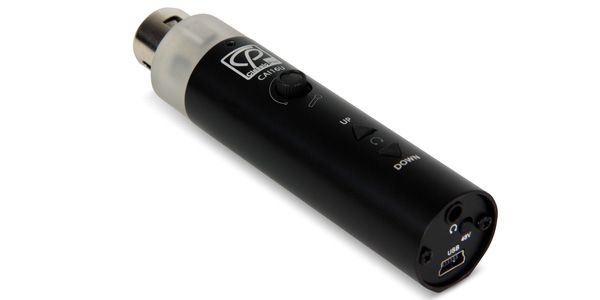

CLASSIC PRO / CAI16U Audio Interface USB Connection

Just connect to a microphone and a PC. A simple, compact audio interface! Easily converts a USB terminal into a microphone input. Can be used with both dynamic and condenser microphones. Comes with a 3-year Sound House warranty!

■USB audio interface
■Comments: Can be used with dynamic microphones and other condenser microphones that require phantom power.

Features

High-quality 16-bit audio DA converter

Adjustable microphone amplifier

Headphone amplifier with adjustable volume

48V phantom power supply possible

Operation display equipped with LED ring

No driver software required

Specifications

■USB type: 2.0

■Input terminal: XLR

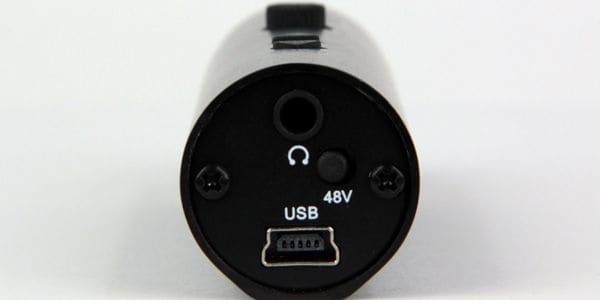

■Headphone terminal: 3.5mm stereo mini

■Supported bit rate: 16bit

■Sampling rate: 44.1kHz, 48KHz

■Power supply: USB bus power

■Accessories: 90cm USB cable, manual included

■Size: 24×102×26mm

■Weight: 49g

■Supported drivers: CoreAudio, WDM

■Bundled software: None

Operating environment

■Supported OS
Mac: OS9, OS X

Windows: Windows ME, Windows XP, Windows VISTA, Windows 7, 8, 10

*XLR cable is designed not to lock when connected.

[About the product manual]
The manual that comes with the product may state that ""When phantom power is supplied, the light turns red"", but the current specifications have changed this to blue. For more information, please refer to the PDF manual available on our website.
