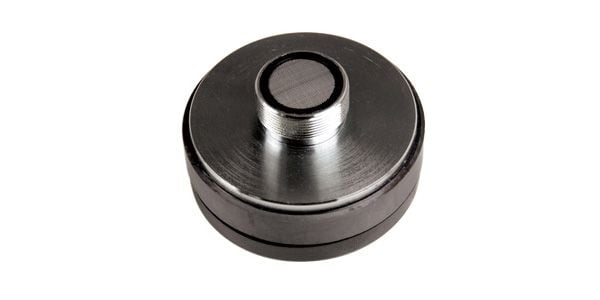

EMINENCE / ASD1001 8Ω PA Speaker Replacement Driver

This is a replacement driver for 8Ω PA speakers from the popular manufacturer EMINENCE. It has a frequency range of 2500Hz-20kHz and is attached with a screw-type screw.

[直輸入品][Direct Import]

■Throat Diameter: 1""
■Impedance: 8Ω
■Power Handling: Driver, 1"", 8Ω, 50 W (EIA-426A)
■Frequency Range: 2500Hz-20kHz
■Sensitivity: 104.40dB
■Magnet Type: Ferrite
■Dimensions: 88.90mm x 88.90mm x 62.20mm
■Weight: 0.80kg
■Other:
■Recommended Crossover Frequency: 2.5 kHz / 18 dBkHz
■Magnet Weight: 0.34kg
■Voice Coil: 1.3""
■Coil Former: Aluminum
■Diaphragm: Titanium
■Mounting: Screw-on, 35mm (1 3/8"") 18UNEF)

■EMINENCE
Founded in 1966 in Kentucky, USA. The company still maintains its own factory there, producing high-quality guitar and PA speaker units that impress even the most discerning guitarists. The company's hits include the ""Tonker"" and ""Legend,"" as well as the popular ""EJ1250,"" a signature model named after tone-conscious guitarist Eric Johnson.

Drivers can generally be swapped for other models with the same throat diameter, impedance, mounting dimensions, and similar power handling. Please note that we do not inspect or guarantee driver installation.

*We generally do not provide loaners when providing repairs or support. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support policy.
