SPL / 2Control

The SPL 2Control is a fully analog speaker/headphone monitor controller with advanced features. It features two stereo source inputs, two stereo speaker outputs, and two headphone monitor outputs. A third mono speaker output also functions as a subwoofer output.

■Speaker & Headphone Monitoring Controller

■Product Introduction

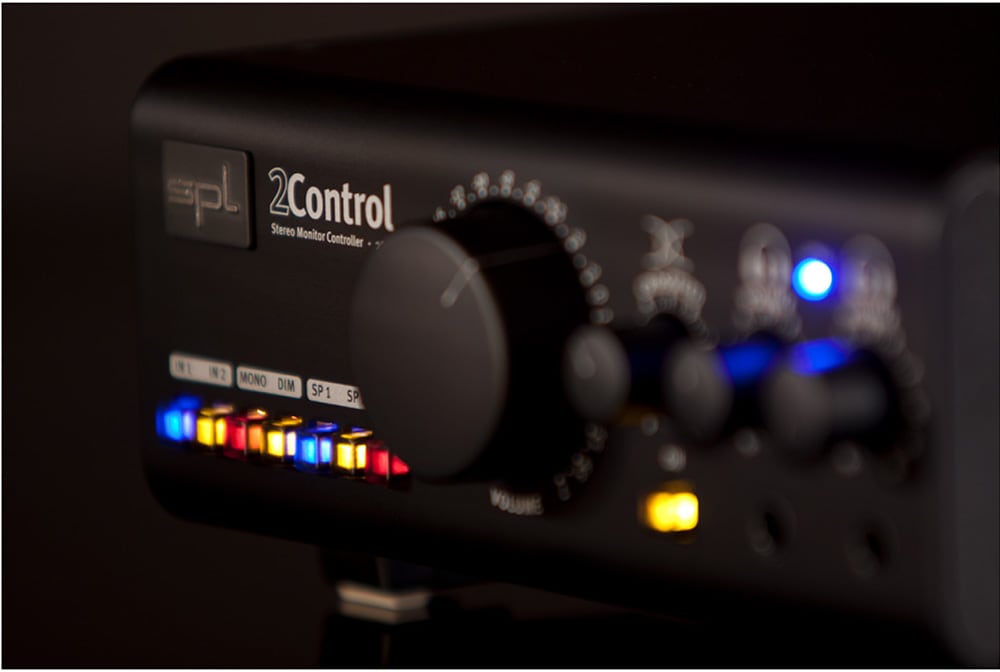

SPL 2Control is SPL's new speaker and headphone monitor controller, packed with advanced features. The fully analog 2Control features two stereo source inputs, two stereo speaker outputs, and two headphone monitor outputs. A third mono speaker output also functions as a subwoofer output. Each speaker level is controlled by a central volume control. Each headphone output has its own dedicated amplifier stage, allowing independent monitoring. It also features mono and DIM switches, essential for a monitoring controller.

What sets 2Control apart from other monitoring controllers is its ""Crossfeed"" function. This simulates the level difference between the left and right speakers in a specific frequency range. This reduces the effect of centering the head during headphone monitoring.

■ Main Features
- Two stereo inputs, two stereo outputs, two headphone outputs
- The third mono speaker output can also be used for a subwoofer output
- Mono and DIM switches
- A crossfeed control simulates the level difference between the left and right speakers in a specific frequency range, reducing the effect of the center sound being centered in the head

■ Technical Specifications

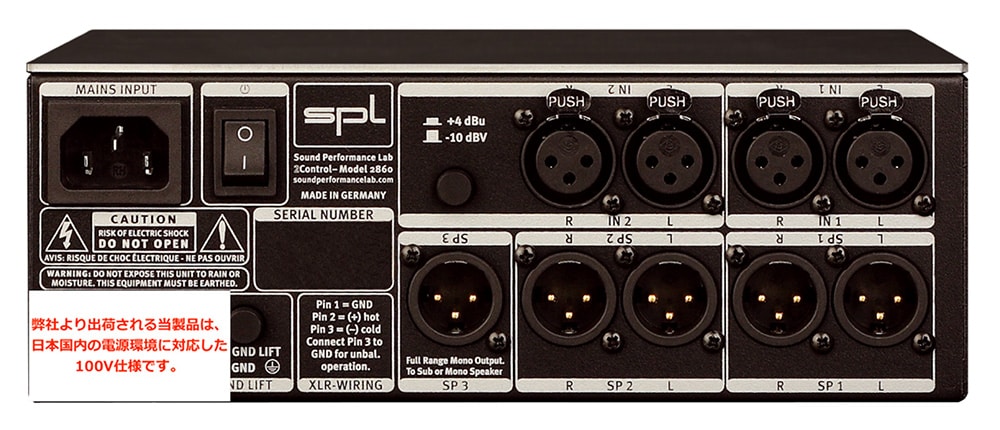

- Inputs & Outputs
Electronically balanced instrumentation amplifiers
Input sockets: XLR
Output sockets: XLR
Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
Input impedance: 22kOhm
Output impedance: 75Ohm/Headphones: 22Ohm
Max. input level: 21.3dBu
Max. output level: 21.3dBu
Volume control range: -80dB to +6.6dB
Headphones: -65dB to +14.9dB

・Measurements
Frequency range: 10Hz to 100kHz (-3dB)
CMRR: ?60dB (@1kHz, 0dBu input level, unity gain)
THD&N: 0.002% (@1kHz, 0dBu input level, unity gain)
Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)
Crosstalk L/R: ?70dB (@1kHz)
Dynamic range: 116dB

・Power Supply
Toroidal transformer with voltage selector
Fuses (slow blow): 100V 50/60Hz: T630mA
Power consumption: ca. 25W

・Dimensions and Weight
WxHxD: 215 x 80 x 220mm
Depth w/ controls & sockets: 245mm
Height w/feet: 95mm
Front height w/opened feet: 126mm
Weight: 2.1kg
