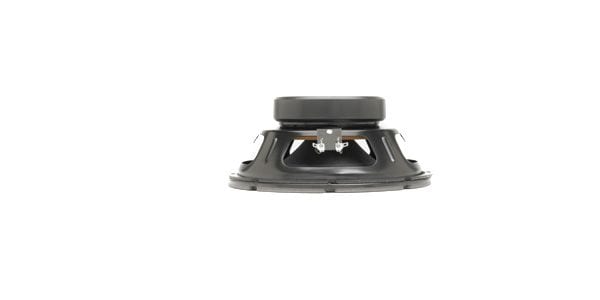

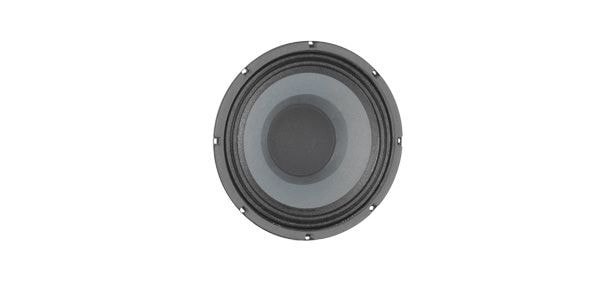

EMINENCE/BETA-10CX 8Ω PA speaker replacement woofer

EMINENCE / BETA-10CX 8Ω PA speaker replacement woofer

Variations

The BETA 10CX is a 10-inch replacement woofer with a 500W (8Ω) input power rating, ideal for mid-low frequencies in a sealed enclosure. It's also recommended for use as a satellite or monitor speaker in a bass-reflex enclosure. By installing the EMINENCE ASD1001 driver (sold separately), it can also be used as a coaxial full-range speaker.

スピーカーのユニットは簡単に交換することができます。CLASSIC PRO の SR用スピーカー、CSP8 を使って、ウーハーユニットを交換してみましょう。リード線は様々な取り付け方がある-ので、＋／－を十分確かめてから接続しましょう。

■Diameter: 10""
■Impedance: 8Ω
■Power Rating: 500W
■Frequency Range: 60Hz - 4kHz
■Sensitivity (1W/1m): 94.3dB
■Magnet: Ferrite
■Dimensions: 256mm x 256mm x 101.1mm
■Weight: 3.31kg
■Other:
■Magnet Weight: 1.07kg
■Voice Coil: 2""
■Voice Coil: Copper voice coil
■Coil Former: Kapton former
■Basket: Pressed steel basket
■Cone: Paper cone
■Edge: Cloth cone edge
■Dust Cap: Zurette dust cap
■Baffle Diameter: 233.2mm
■Threaded Hole Size: 6.4mm
■Diameter Between Threaded Holes: 245.4mm Mounting Holes B.C.D.

■American Standard Series
This model offers excellent cost performance thanks to its economical stamped chassis frame. With 12 unique models, it can be used for a wide range of applications. It offers a price unmatched by other companies' speaker lineups.

■EMINENCE
Founded in 1966 in Kentucky, USA, the company still maintains its own factory there, producing high-quality guitar and PA speaker units that impress even the most demanding professionals. The company's hit models, ""Tonker"" and ""Legend,"" as well as the signature model ""EJ1250"" named after tone-conscious guitarist Eric Johnson, are also popular.

*Usually, woofer units can be replaced with models of similar size, impedance, and power handling. However, when actually paired with a speaker, there may be slight misalignments in the screw holes or baffle size, requiring modification. We do not inspect or guarantee the installation of woofer units. Thank you for your understanding.

*When we provide repairs/support, we generally do not provide replacement devices. In the event of a malfunction, please return the device to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
