TASCAM / LA-81MKII Line Converter

The LA-81MKII is a line converter manufactured by TASCAM. It has eight built-in circuits that convert balanced inputs to unbalanced outputs. It is equipped with an indicator that shows whether a signal is present and a semi-fixed trim that aligns the levels of connected devices.

■Line Converter

≪Major Features≫
● 8 balanced-to-unbalanced conversion channels
● Unbalanced nominal output level: -10dBV
● Balanced nominal input level: +4dBu/-20dBu switchable (bottom panel)
● Signal presence indicator
● Balanced input signal distribution for unbalanced output (ADA: Audio Distribution Amplifier)
● Various audio distribution configurations available, such as 1 input/8 outputs or 1 input/4 outputs (2 channels)
● Semi-fixed trim for fine adjustment of signal level within a ±12dB range per channel

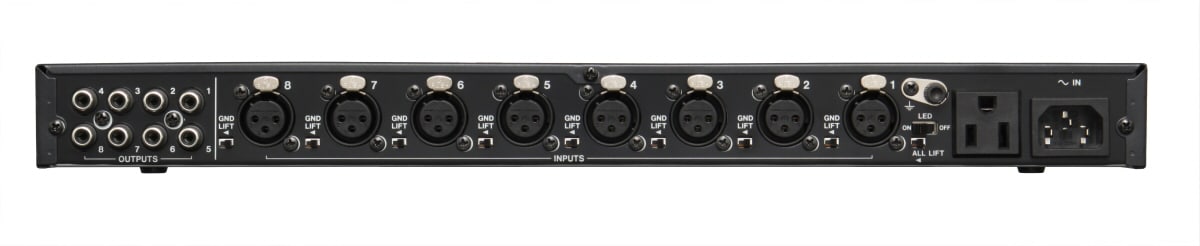

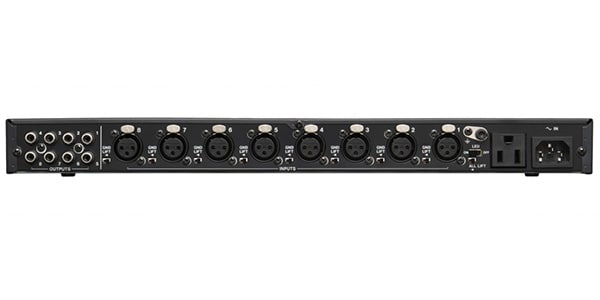

● GND LIFT switch on balanced terminals to prevent ground loops when connecting multiple devices
● GND ALL LIFT switch to prevent ground loops when rackmounted
● Standard TASCAM 1U rackmount size, matching the size of the LA-80MK2/LA-40MK3
● 3-pin power switch not linked to the power switch Equipped with a power outlet

~From the manufacturer's website~
- The LA-81MKII is a 1U rack-mountable balanced/unbalanced line converter with eight built-in circuits that convert balanced inputs to unbalanced outputs. It is the successor to the long-selling LA-81 model.

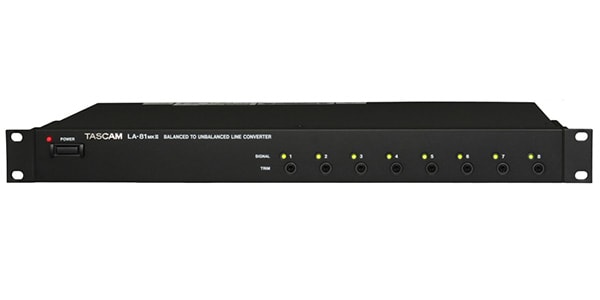

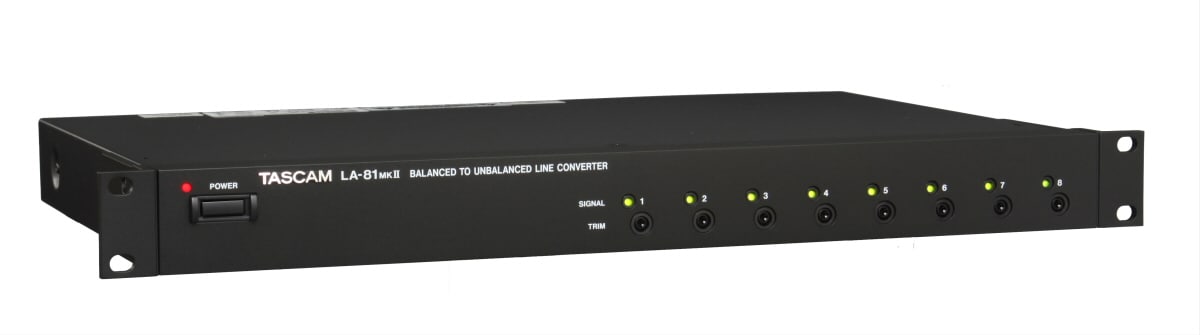

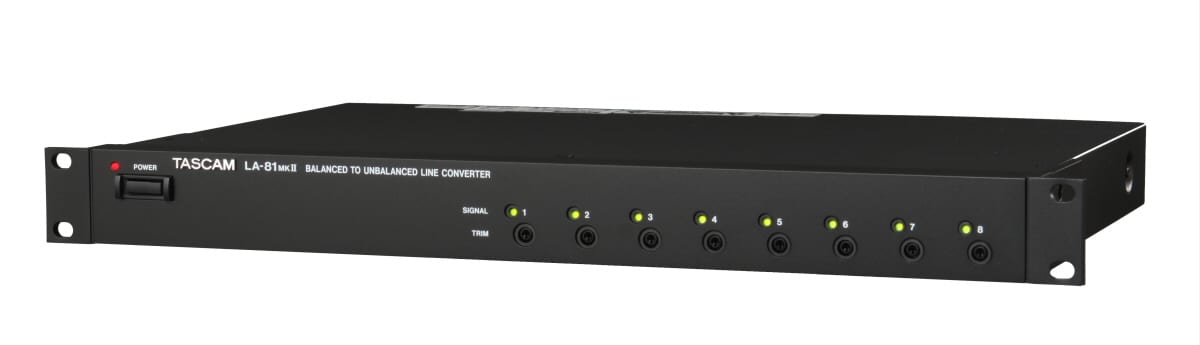

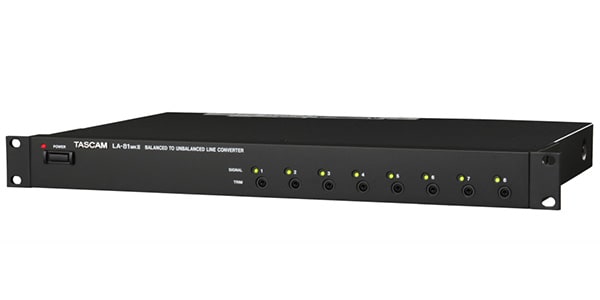

- The front panel features an indicator that shows the presence or absence of an input signal, and a semi-fixed trim that matches the level of connected devices.

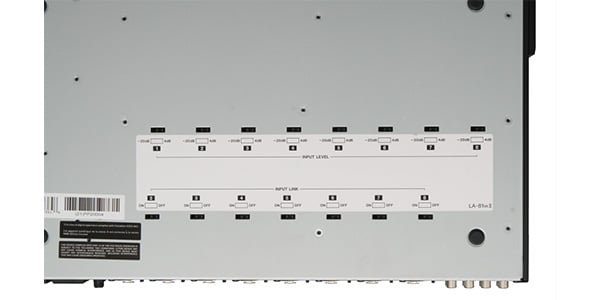

- The bottom panel switch allows for input signal distribution (ADA: Audio Distribution Amplifier). It is possible to distribute a balanced input signal to an unbalanced output.
