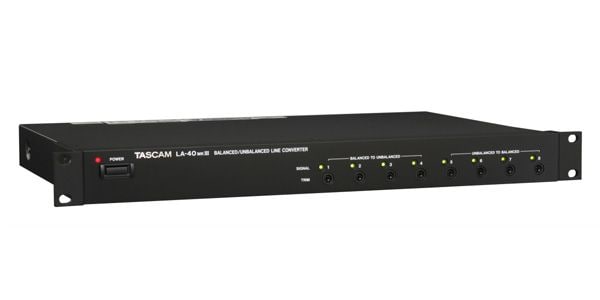

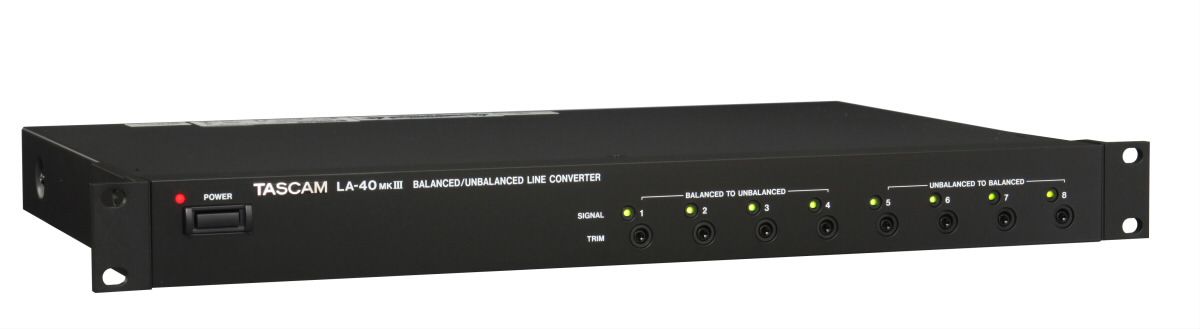

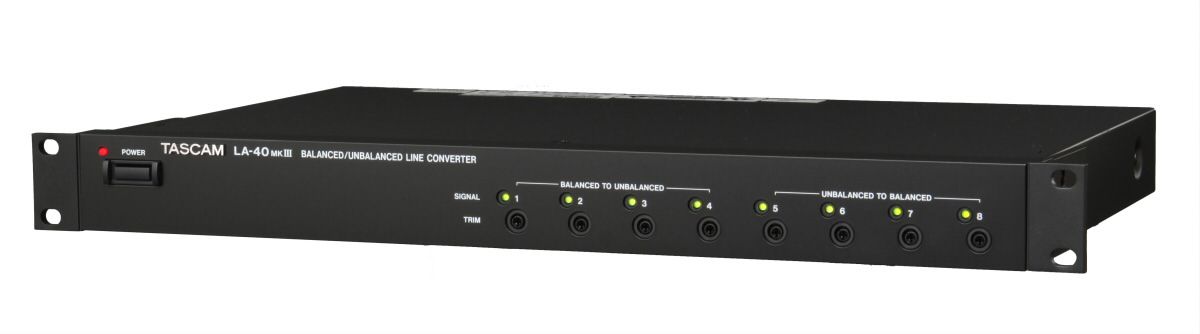

TASCAM / LA-40MKIII Unbalanced/Balanced Line Converter

This is a balanced/unbalanced line converter that incorporates four circuits that convert unbalanced inputs to balanced outputs, and four circuits that convert balanced inputs to unbalanced outputs.

~From the manufacturer's website~
This balanced/unbalanced line converter features four circuits that convert unbalanced inputs to balanced outputs, and four circuits that convert balanced inputs to unbalanced outputs. It's equipped with a signal indicator and a semi-fixed trim that aligns the levels of connected devices.
It also features an input signal distribution (ADA: Audio Distributed Amplifier) ​​function, allowing it to distribute unbalanced input signals to balanced outputs, and balanced input signals to unbalanced outputs. It uses the standard TASCAM 1U rack-mount size, the same dimensions as a 1U rack-mount TASCAM recorder, allowing for a flat depth when rack-mounted.

■Features
- 4 unbalanced to balanced conversion channels
- 4 balanced to unbalanced conversion channels
- Unbalanced nominal input/output level: -10 dBV
- Balanced nominal input/output level: +4 dBu/-20 dBu switchable
- Signal presence indicator
- Unbalanced input signal can be distributed to balanced outputs (ADA: Audio Distribution Amplifier)
- Balanced input signal can be distributed to unbalanced outputs (ADA: Audio Distribution Amplifier)
- Various audio distribution configurations can be configured, such as 1 input/4 outputs or 1 input/2 outputs (2 systems)
- Semi-fixed trim for each channel allows fine adjustment of signal level within a ±12 dB range
- Balanced terminal ground lift switch, effective against earth loops when connecting multiple devices
- Ground all lift, effective against earth loops when rackmounted Switch
- Standard TASCAM 1U rackmount size
- Equipped with a 3-pin power outlet that is not linked to the power switch

■ Specifications
- Input (unbalanced): RCA pin jack
- Input impedance: 23 kΩ (all INPUT LINK switches OFF)
- 5.7 kΩ (all INPUT LINK switches ON)
- Nominal input level: -10 dBV
- Maximum input level: +4.8 dBV
- Indicator detection level: -38 dBV or higher
Output (balanced): XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
- Output impedance: 94 Ω
- Nominal load impedance: 10 kΩ
- Minimum load impedance: 600 Ω
- Nominal output level: +4 dBu (OUTPUT LEVEL switch: +4 dBu)
- : -20 dBu (OUTPUT LEVEL switch: -20dBu)
Maximum output level: +23dBu
Input (balanced): XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input impedance: 54kΩ (all INPUT LINK switches OFF)
: 13.5kΩ (all INPUT LINK switches ON)
Nominal input level: +4dBu (INPUT LEVEL switch: +4dBu)
: -20dBu (INPUT LEVEL switch: -20dBu)
Maximum input level: +30dBu (INPUT LEVEL switch: +4dBu)
: +8dBu (INPUT LEVEL switch: -20dBu)
Indicator detection level: -24dBu or greater (INPUT LEVEL switch: +4dBu)
: -48dBu or greater (INPUT LEVEL switch: -20dBu)
- Output (unbalanced): RCA pin jack
- Output impedance: 200Ω
- Rated load impedance: 10kΩ
- Minimum load impedance: 1kΩ
- Rated output level: -10dBV
- Maximum output level: +18dBV
- TRIM adjustment range: ±12dB
■ Power supply: AC 100-240V, 50/60Hz
■ Power consumption: 6W
■ Weight: 3kg
■ Dimensions: 482.6 (W) x 44.5 (H) x 295 (D) mm (including protrusions)
