LABGRUPPEN / C5:4x

This is a 4-channel power amplifier manufactured by LABGRUPPEN. It delivers a total output of 500W, with 125W per channel. It is compatible with the NomadLink network.

This is a 4-channel power amplifier from LABGRUPPEN. It delivers a total output of 500W, with 125W per channel. It supports NomadLink networking.
■Type: 4-Channel
■Stereo Output (2ohms): 60W x 4
■Stereo Output (4ohms): 125W x 4
■Stereo Output (8ohms): 125W x 4
■Bridged Output (4ohms): 125W x 2
■Bridged Output (8ohms): 250W x 2
■Frequency Response: 6.8Hz-34kHz

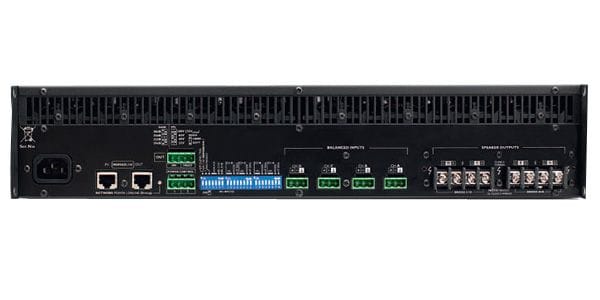

■Input Terminals: 3-Pin Phoenix Type
■Output Terminals: Barrier Strip 2-Pin Screw Terminals
■Dimensions: 488x88x343mm
■Weight: 8.5kg
■Detailed Specifications: ""Standing the installation world on its ear.""
The C Series brings Lab.gruppen's unparalleled, high-quality amplifier technology, cultivated in touring applications, to installations. Equipped with the same core technology as the FP+ Series, proven in harsh touring environments, these amplifiers deliver stable power and performance even under 24/7/365 full-scale operation.

""Go configure... easily.""
The nine C Series products are available in 4-channel or 8-channel multi-channel configurations, each with independent outputs or paired linked outputs. Each channel has individual gain and maximum voltage settings, and can be configured for low-Z or high-Z (70V/100V) system configurations.

For worry-free, long-term use, C Series products feature seven protection and warning circuits. Lab.gruppen's proprietary Intercooler® cooling mechanism ensures efficient thermal management and safeguards output devices. The included NomadLink network module enables smart remote monitoring and control of each device.

The four C...X models are ideal for low-power, commercial sound applications. Additional features include a universal power supply, built-in GPIO, and selectable high-pass filters for each channel.

""Looks silver, acts green.""
Lab.gruppen's home country of Sweden imposes particularly strict ecological standards on companies. Lab.gruppen's amplifiers are designed to be as environmentally friendly as possible, achieving the world's highest level of wattage efficiency.

Designed for installation applications
Channel output load matching using proprietary VPL® (Voltage Peak Limiter) technology
Channel pairing possible
Network monitoring and control via NomadLink® + DeviceControl software (requires NLB 60E)
Switchable Low-Z (2-16 Ohms) or High-Z (70V or 100V) output for each channel
Selectable input gain
Handmade in Sweden

Note: We generally do not provide loaner units for repairs or support. If there is a problem, please return the product to us and we or the manufacturer will handle the issue in accordance with our support regulations.
