RADIAL / JD7

This signal routing system from RADIAL allows you to switch between two inputs and output up to seven channels.

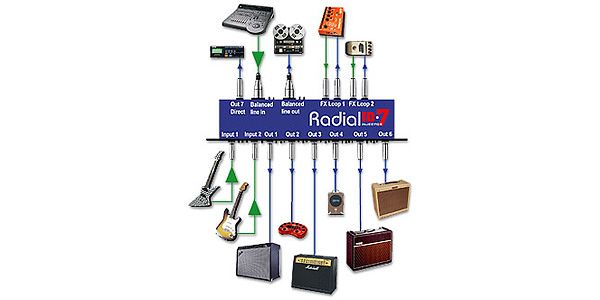

1 in, 7 out. There are two inputs on the front that can be switched between. The rear input is XLR and shared with input 1; if both are connected, the front takes priority. Outputs are 1 to 7. 1 and 7 are direct outs. 7 is on the rear. Inputs and outputs 2 to 6 are isolated with Jensen transformers to prevent hum noise caused by ground loops. Additionally, outputs 5 and 6 are equipped with effect loops. There is also an XLR output on the rear.
