WHIRLWIND / SP1X2

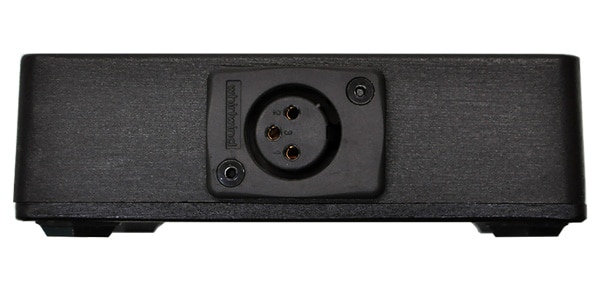

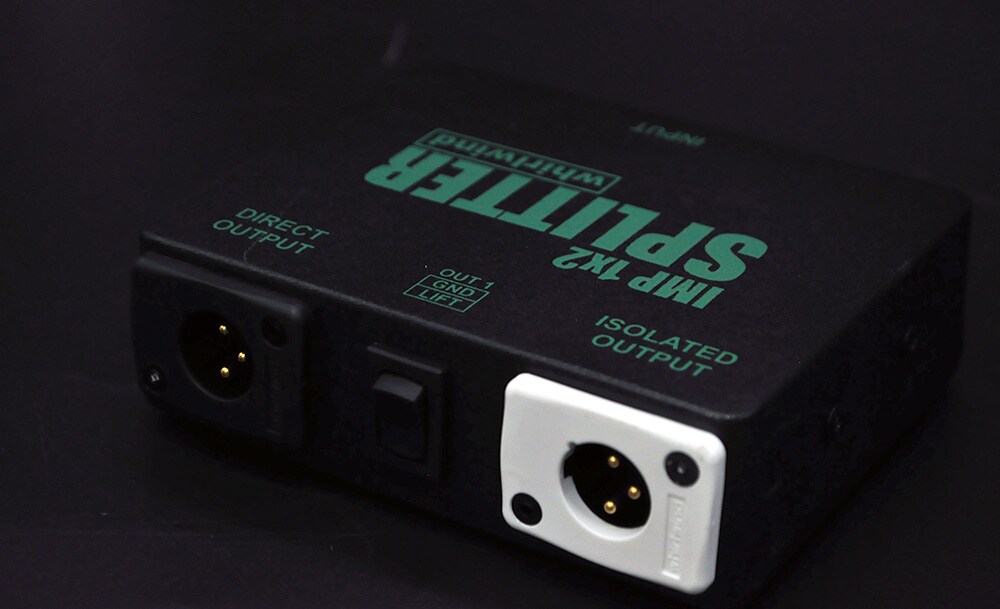

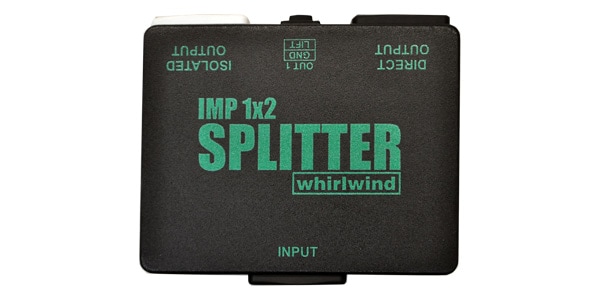

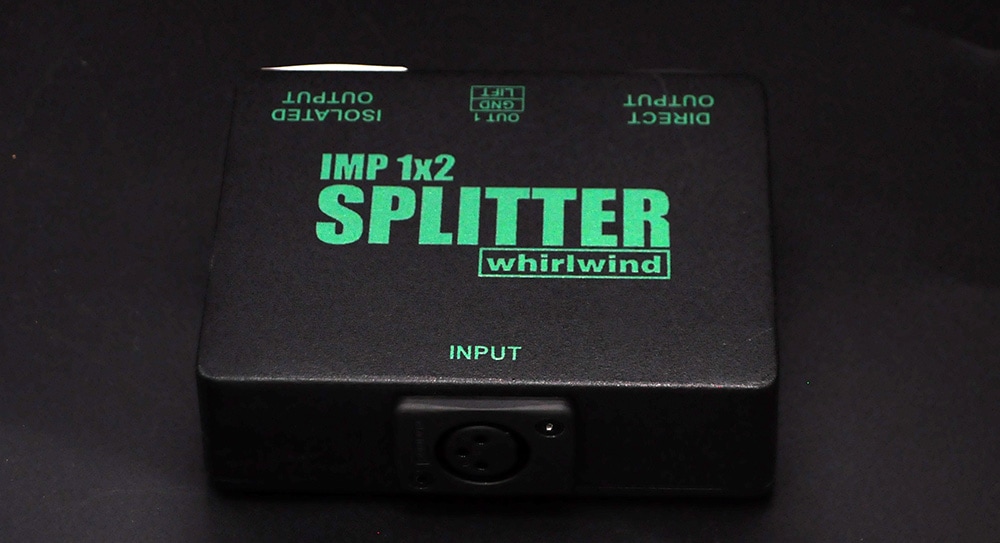

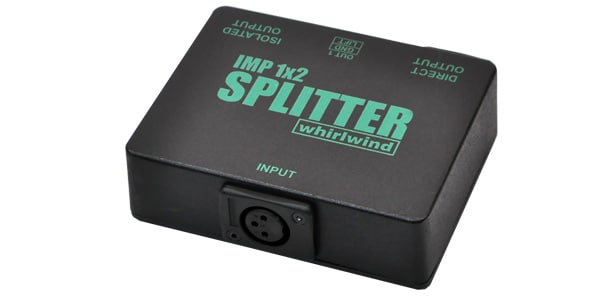

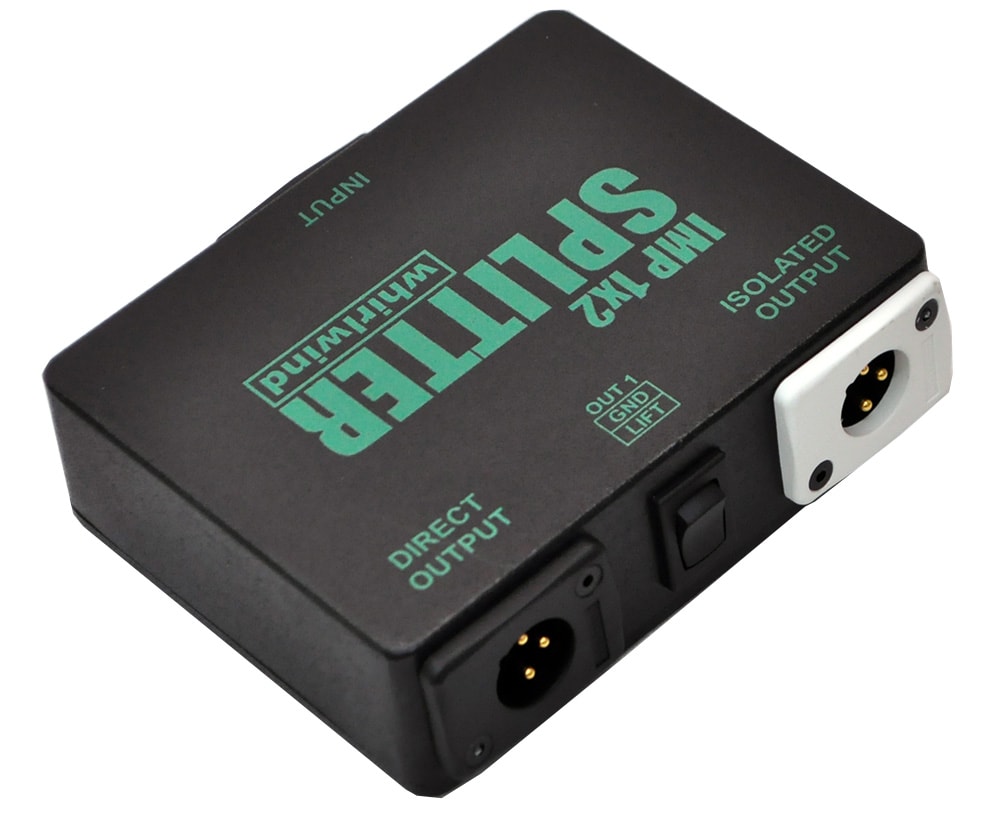

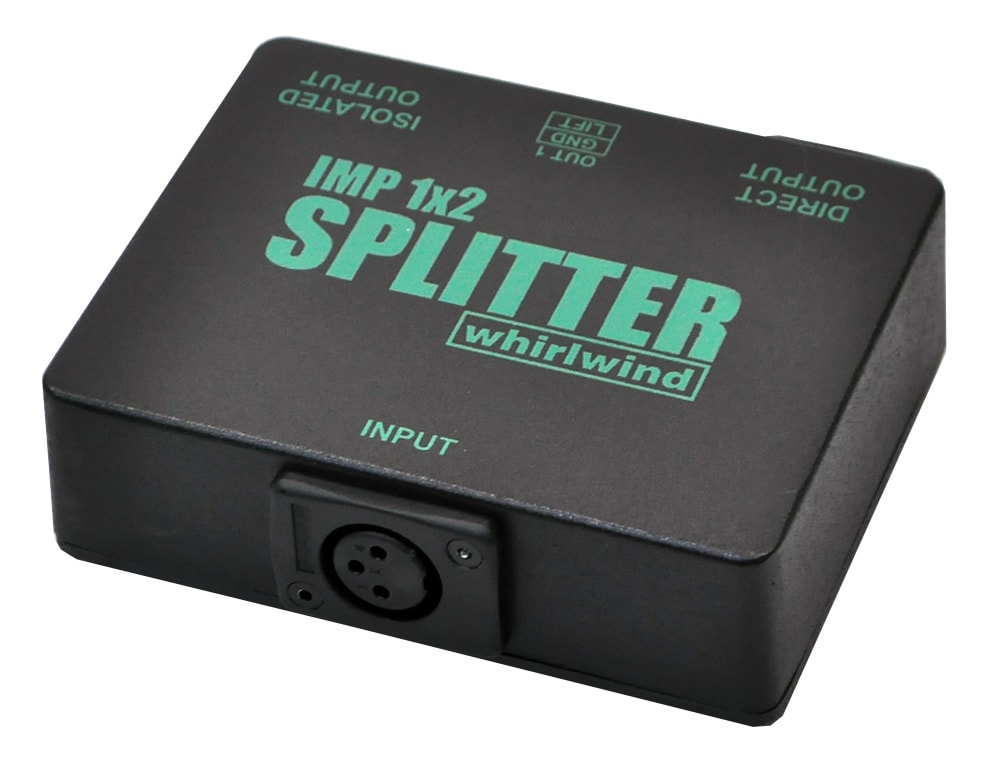

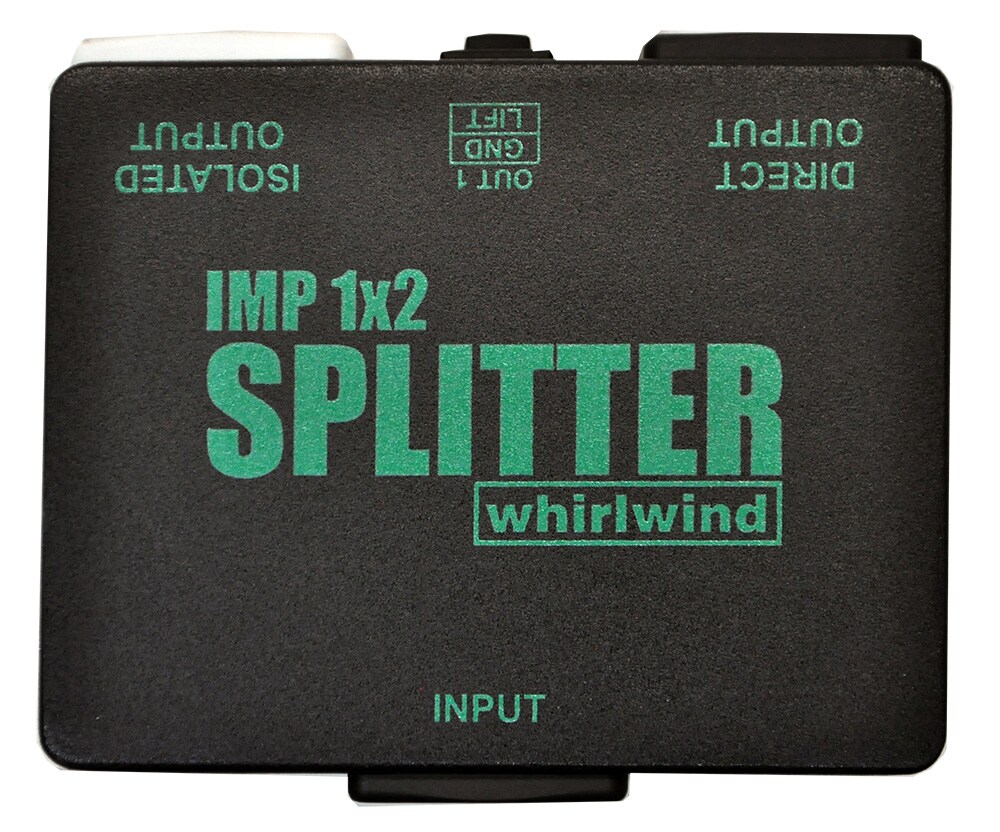

The IMP1X2 SPLITTER is a 1-in/2-out splitter manufactured by WHIRLWIND. It distributes the input low-impedance microphone signal to two low-impedance outputs. The transformer output is equipped with a ground lift switch.

■Splitter
■1 IN/2 OUT
■Distributes the input low-impedance microphone signal to two low-impedance outputs. The IMP Splitter 1x2 distributes the input signal to one direct output and one transformer output. The transformer output has a ground lift switch.
■Input Impedance: 150Ω
■Output Impedance: 150Ω
■Operating Level: -50dB to +4dB
■Frequency Response: 20Hz to 20kHz ±1dB

*Phantom power for microphones can only be supplied from the DIRECT OUT.
