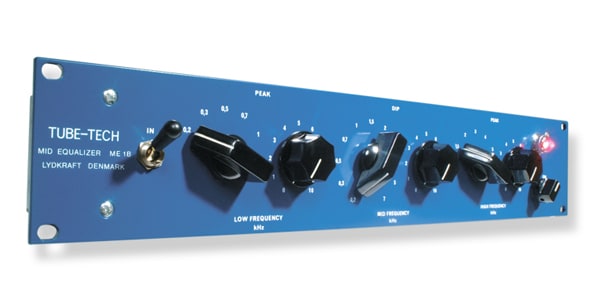

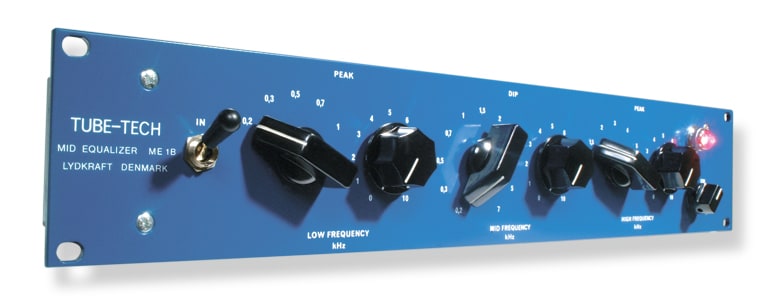

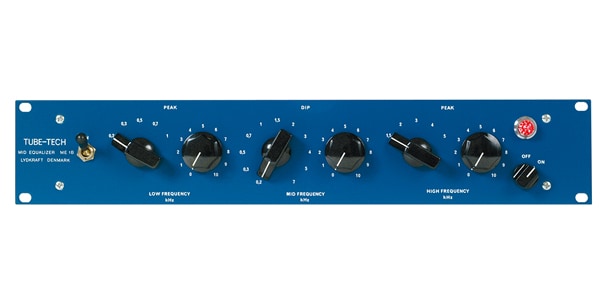

TUBETECH / ME1B

Variations

Passive all-tube midrange EQ based on the legendary Pultech MEQ5, with two boost and one dip sections

こちらの
商品も
オススメ！

WARM AUDIO パラメトリック・イコライザー EQP-WA

世界中のレコーディング・スタジオで使用される定番のイコライザー「Pultec/EQP-1A」をリーズナブルな価格で完全再現したチューブ・イコライザー！

■ Midrange Parametric Equalizer, Tube, 2U
■ Input Impedance: 600Ω (2-Hot Balanced, with Transformer)
■ Output Impedance: 60Ω or less (2-Hot Balanced, with Transformer)
■ Gain Adjustment Range: 0dB
■ Distortion: 0dBm/0.15% or less (THD+n @ 40Hz)
■ +10dBm/0.15% or less (THD+n @ 40Hz)
■ Maximum Output Level: +26dBu or more (1% THD+n)
■ Maximum Input Level: +21dBu or more (1% THD+n)
■ Frequency Response: 5Hz to 40kHz (-3dB)
■ Vacuum Tubes Used: 1 x ECC82, 1 x ECC83
■ Dimensions: 19 inches (W) x 2U (H) x 170mm (D)
■ Weight: 3.8kg
■ Power Supply 20W (115V/230V, 50/60Hz)

This product is made to order, so we cannot accept cancellations or changes for any reason after your order has been confirmed. Please be sure to inquire about delivery dates before placing your order.
