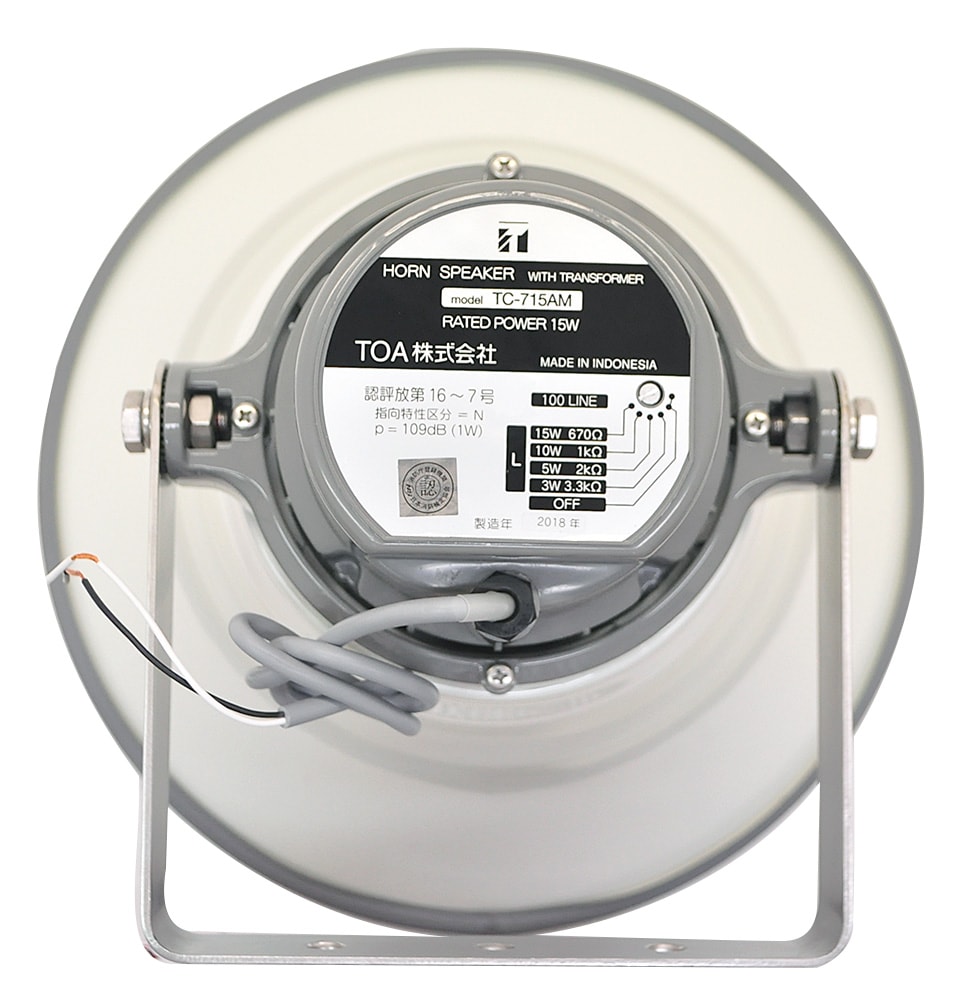

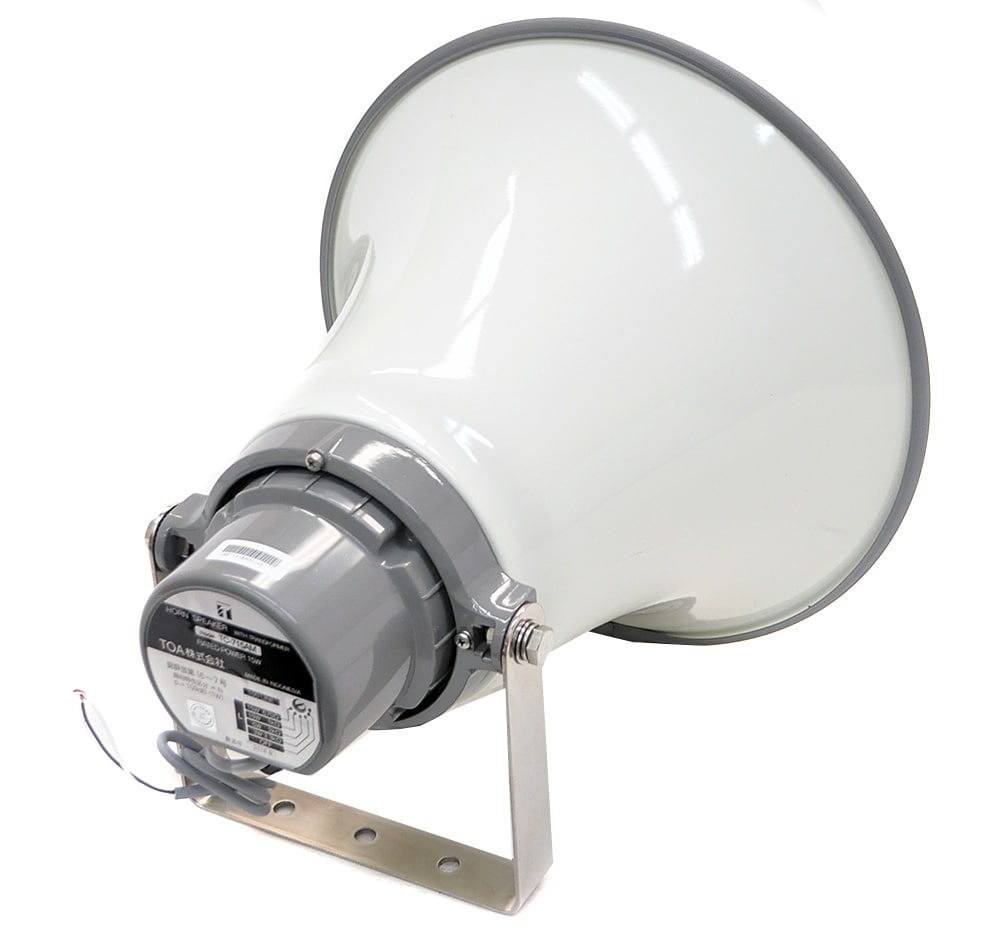

TOA / TC-715AM

This is a versatile speaker with excellent clarity, suitable for public address and announcement broadcasts. The exterior metal parts, including the horn tube, are made of aluminum with a powder-coated finish, while the angles and screws are made of stainless steel, ensuring excellent weather resistance. Furthermore, the speaker diaphragm uses polyimide film, which offers superior sound quality and durability.

■ Horn Speaker

■ Rated Input: 15W

■ Rated Impedance: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)

■ Output Sound Pressure Level: 110dB (1W, 1m)

■ Frequency Response: 250?7,000Hz

■ Speaker Type: Class L (92dB(A) or higher measured with the second signal of the Fire Service Act's Audible Alarm)

■ Sound Power Level: 109dB (1W)

■ Directivity Classification: N (0° to less than 15° Q=20, 15° to less than 30° Q=4, 30° to less than 60° Q=0.5, 60° to 90° Q=0.3)

■ Dustproof/Waterproof Rating: IP65

■ Speaker Cord: φ6mm 2-core cabtyre cord (60cm length)

■Operating Temperature Range: -20℃ to +55℃

■Finish

Horn A Tube & Top Cover: Aluminum, Off-White (Approximate Munsell N9.5 Color), Powder Coated

Horn BC Tube: ABS Resin, Off-White (Approximate Munsell N9.5 Color)

Angle Holder: Aluminum, Gray (Approximate Munsell N4.5 Color), Powder Coated

Transformer Case: ABS Resin, Gray (Approximate Munsell N4.5 Color)

Angles, Screws, Bolts: Stainless Steel

■Dimensions: φ400 × 376(D)mm

■Weight: 3.2kg

■Other: Complies with JIS C 5504 (Horn Speaker)

■Optional Accessories

Speaker Mounting Bracket:

SP-201 (Stainless Steel) for Ceiling, Wall, and Pole Mounting (Pole mounting requires separate band YS-60B)

Hot-dip galvanized speaker mounting bracket and mounting band YS-60B (2 pieces)

Speaker stand: ST-16A (Not suitable for use in strong winds)
