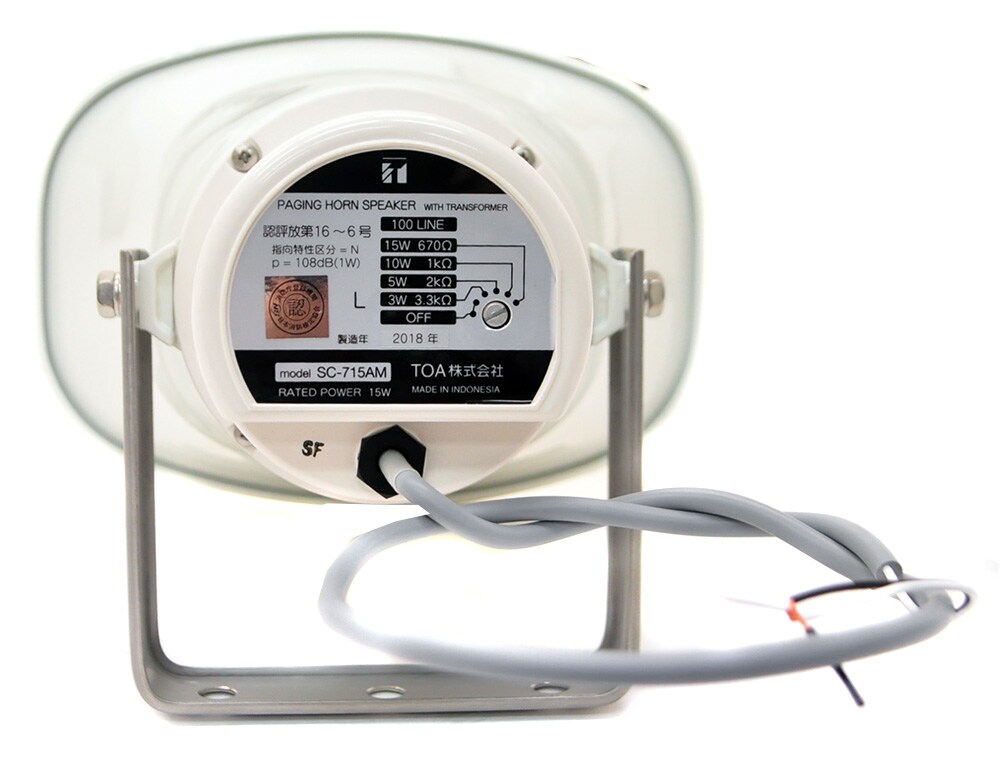

TOA / SC-715AM

A compact and lightweight in-car speaker with excellent clarity, suitable for public address and announcement broadcasts. The horn tube is made of aluminum with a powder coating finish, and the angles and screws are made of stainless steel, providing excellent weather resistance.

■ Horn Speaker

■ Rated Input: 15W

■ Rated Impedance: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)

■ Output Sound Pressure Level: 109dB (1W, 1m)

■ Frequency Response: 315?9,000Hz

■ Speaker Type: Class L (92dB(A) or higher measured with the second signal of the Fire Service Act's Audible Alarm)

■ Sound Power Level: 108dB (1W)

■ Directivity Classification: N (Q=20 for 0° to less than 15°, Q=4 for 15° to less than 30°, Q=0.5 for 30° to less than 60°, Q=0.3 for 60° to 90°)

■ Dustproof/Waterproof Rating: IP65

■ Speaker Cord: φ6mm 2-core cabtyre cord (60cm length)

■Operating Temperature Range: -20℃ to +55℃

■Finish

Horn A Tube & Top Cover: Aluminum, Off-White (Approximate Munsell N9.5 color), Powder Coating

Horn BC Tube & Unit Case: ABS Resin, Off-White (Approximate Munsell N9.5 color)

Angles, Screws, Bolts: Stainless Steel

■Dimensions: 285(W) × 227(H) × 277(D) mm

■Weight: 1.9kg

■Other: Complies with JIS C 5504 (Horn Speakers)

■Optional Accessories

Speaker Mounting Brackets:

Stainless Steel Wall Mount SP-301

Stainless Steel Ceiling/Wall/Pole Mount SP-201 (Pole mounting requires separate band YS-60B)

Swivel Bracket YS-151S

Stainless Steel Pole Mount SP-131 (2 pieces) (Separate band YS-60B required)

Hot-dip galvanized speaker mounting bracket and mounting band YS-60B (2 pieces)

Speaker stand: ST-16A (Not suitable for use in strong winds)
