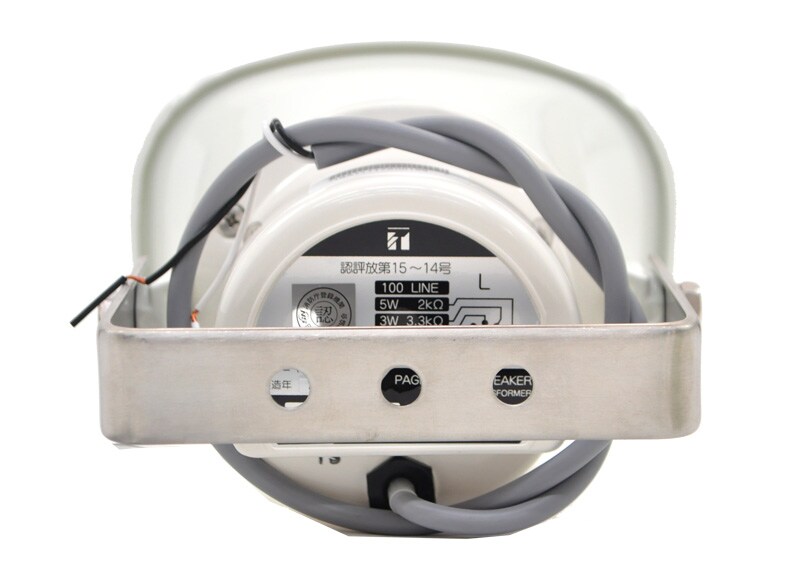

TOA / SC-705AM Horn speaker

A compact, lightweight in-vehicle speaker with good clarity suitable for public announcements and information broadcasting. The horn A cylinder is powder coated with aluminum, the bracket and screws are stainless steel, providing excellent weather resistance.

■ Horn speaker
■ Rated input: 5W
■ Rated impedance: 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W)
■ Output sound pressure level: 106dB (1W, 1m)
■ Frequency characteristics: 400-10,000Hz
■ Speaker type: Class L
■ Sound power level: 106dB (1W)
■ Directional characteristic classification: M (0 ° to less than 15 ° Q = 10, 15 ° to less than 30 ° Q = 3, 30 ° to less than 60 ° Q = 1, 60 ° to 90 ° less Q = 0.5)
■ Dust-proof and waterproof rating: IP65
■ Speaker cord: φ6mm 2-core cord (length 60cm)
■ Operating temperature range: -20 ℃ to + 55 ℃
■ Finishing:
Horn A cylinder / top lid: aluminum off-white (Munsell N9.5 approximate color) powder baking coating
Horn BC cylinder / transformer case: ABS resin off-white (Munsell N9.5 approximate color)
Angles, screws, bolts: stainless steel
■ Dimensions: 172 (W) × 161 (H) × 188 (D) mm
■ Weight: 1.2kg
■ Compliant with JIS C 5504 (horn speaker)
■ Sold separately:
Speaker mounting bracket:
Stainless steel wall mount SP-301
SP-201 for stainless steel ceiling / wall / pole mount (separate band YS-60B is required for pole mounting)
Swivel bracket YS-151S
Stainless steel pole mount SP-131 (2 included) (sold separately YS-60B band required)
Hot-dip galvanized finish Speaker mounting bracket band YS-60B (2 included)
Speaker stand: ST-16A (cannot be used in strong wind)
